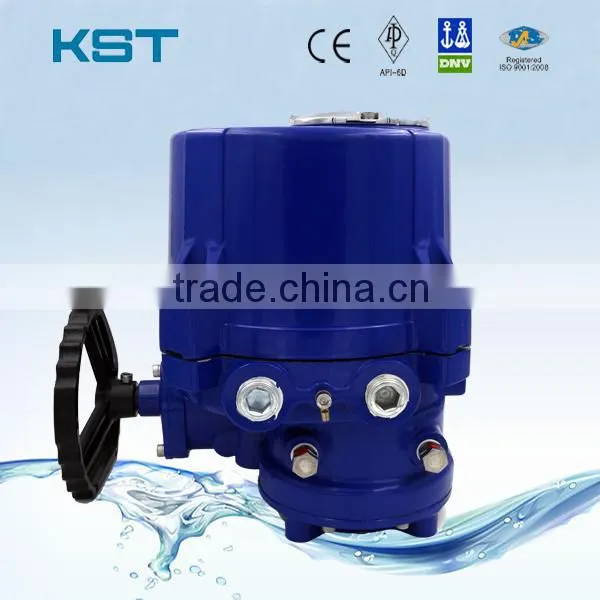

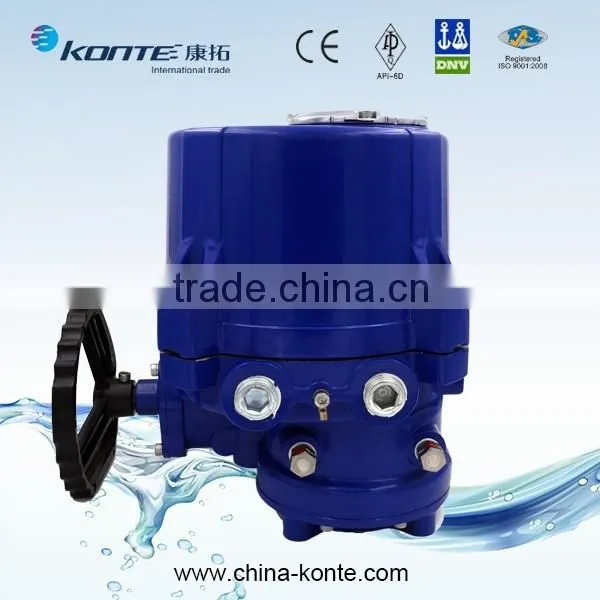

Quarter Turn Electric Actuator/Rotary Electric Actuator
Summary
EQS valve actuators are the new generation product of our company and can be used for driving and controlling the butterfly valves, ball valves, plug valves (part-turn with 90° movement). The actuators can be either remotely controlled, or locally controlle.
They are widely used in the fields such as oil, chemistry, power generation, water treatment, paper making.
The protection class is IP67, and the explosion proof class is d II BT4 (with lessters of EX).
This operation manual is applied for general type. For special type actuators, the additional manual will be provide.
Structure
The actuator is made of the folling parts:
1. Enclosure: top cover and mounting base
2. Driving part: driven by highly efficient, hermetic, squirrel caged type motor
3. Rotating part: double worm gearing
4. Manual override: handwheel and clutch
5. Modulating part: separated with the actuator body, for modulating easily
6. Torque switch and limit switch
7. Travel testing and feedback
Specification
1. Rotary Electric Actuator .
2. Torque : 50 N.M ~ 5000 N.M
3. Time : 10 sec ~ 200 Sec .
4. Power : 8W ~ 180 W. 110V / 220V / 380V
Enclosure |
Water proof enclosure IP67, NEMA 4 and 4X O-RING Sealed |
|
|
Standard:220V AC single-phase Optional:110V AC single-phase,380V/440V 3phase ,50/60HZ, ±10% 24V DC/110V DC/220V DC |
|
Motor |
Squirrel-cage Asynchronous Motor |
|
Limit Switch |
Close/Open, each 1, SPDT,250V AC 10A |
|
Auxiliary Limit Switch |
Close/Open, each 1, SPDT,250V AC 10A |
|
Torque switch |
Close/Open, each 1, SPDT,250V AC 10A |
Except CHQ-005/008/010 |
Stroke |
90°±10° |
0°~270° |
Stall protection/ Operating temperature |
Built-in thermal protection, Open 115°C ±5°C/Close97°C ±5°C |
|
Indicator |
Continuous position indicator |
|
Manul operate |
Declutching mechanism,cooperate with handwheel |
|
Self-locking device |
Self-locking by worm and worm gear |
|
Mechanical Limit |
2 × external adjustable screws |
|
Space heater |
7-10W (110/220V AC) |
|
Conduit entry |
2 × PF 3/4” |
|
Ambient temperature |
-20°C--+70°C |
|
Lubrication |
Grease moly(EP type) |
|
Material |
Steel, Aluminium alloy, Aluminium bronze,Polycarbonate |
|
Ambient humidity |
Max 90% RH |
Non-Condensing |
Anti-vibration |
X Y Z 10g,0.2~34 Hz,30 minutes |
|
External coating |
Dry powder, Epoxy polyester,high antcorrosion |
|
