Specifications
300L steam cooking kettle without agitator1. big being heated area
2. high thermal efficiency
3. heating evenly

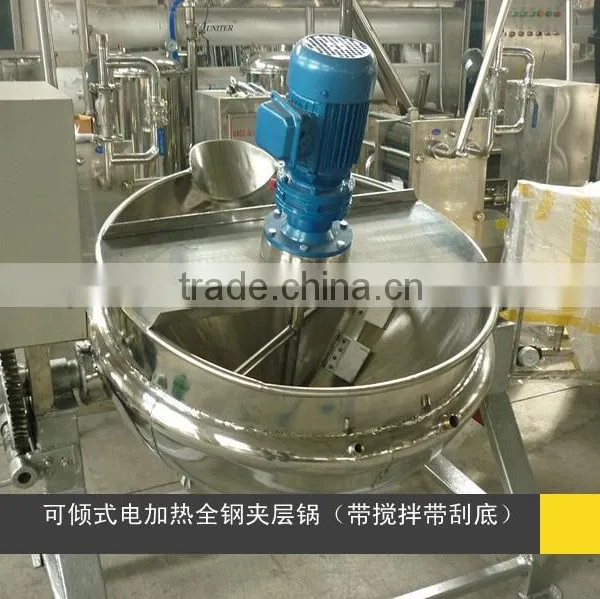

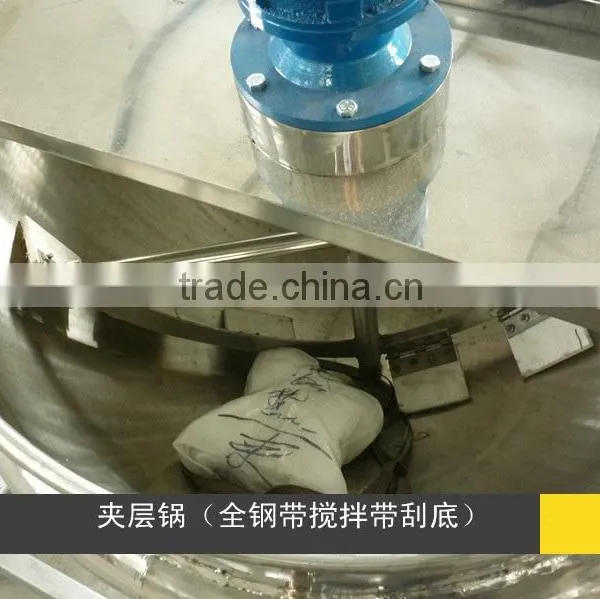

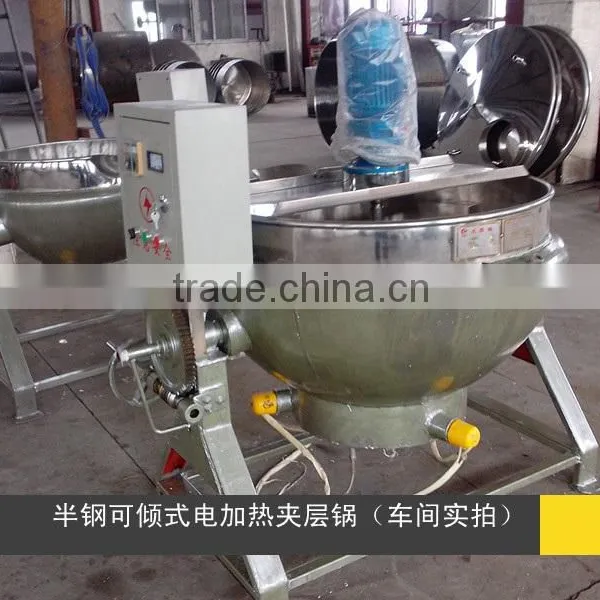

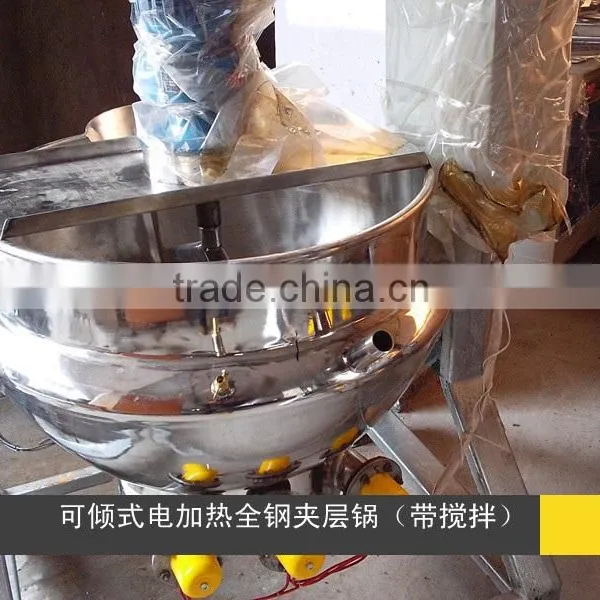

300L three layer jacketed kattle
Steam Jacketed kettle alternate name is steam jacketed kettle,steam and cooking jacketed kettle. Be widely applied in food processing such as candy, medicine, dairy, alcohol, cake, sweetmeat, beverage, cans and other food processing. It’salso used to boil soup, cook, stew and porridge in some large restaurants and canteens. It is considered to
be the ideal equipment in the area of improving quality, shortening the time and improving working conditions.
300L three layer jacketed kattle characteristics
1. Efficient Heating
Steam heating jacketed kettle takes a certain pressure of steam as heat source. It has characteristics such as big heating area, uniform heating, high thermal efficiency, short boiling time, easy control of the heating temperature etc.
2. Safety and Convenience
Steam heating jacketed kettle adopts stainless steel 304 as production material, which is resistant to heat and acid. The machine is equipped with pressure gauge, safety valve or electrical control box. Not only has good-appearance, but also easy to install and operate. It is safe and convenient.
300L three layer jacketed kattle Technical parameters:
Metric volume(L) |
50 |
100 |
200 |
300 |
400 |
500 |
600 |
800 |
1000 |
|
Caliber (mm) |
Φ600 |
Φ700 |
Φ800 |
Φ900 |
Φ1000 |
Φ1100 |
Φ1200 |
Φ1300 |
Φ1400 |
|
Depth of pot(mm) |
400 |
450 |
530 |
630 |
680 |
730 |
780 |
830 |
900 |
|
Heating area(m2) |
0.45 |
0.58 |
1.12 |
1.42 |
1.75 |
2 |
2.3 |
3.2 |
3.9 |
|
Pipe size |
Steam pipe |
3/4” |
1” |
2” |
||||||
Condensate pipe |
3/4” |
1” |
||||||||
Interlayer work pressure |
≤0.09Mpa(can be adapted according to customer requirement) |
|||||||||
Mixing speed |
36 r/min(can be adapted according to customer requirement) |
|||||||||
Mixing power(Kw) |
0.55 |
0.55 |
0.75 |
1.1 |
1.1 |
1.5 |
1.5 |
2.2 |
2.2 |
|
It can be used to boil soup, cook, stew and porridge in some large restaurants and canteens
This type is without agitator ,if needs we can do cover.
