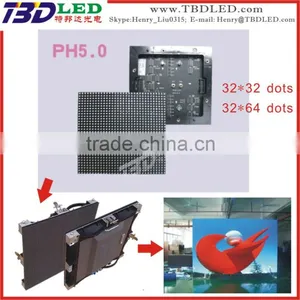

Help CenterHigh Brightness Full Color Led Board/LED Unit Board/LED Module/P5.0 Full Color Unit Board-SMD
Related Products
-
P10 Full Color High Brightness Writing Module Led BoardUS$ 1 - 20MOQ: 1 Set -
P10 Full Color High Brightness Full Color LED Unit Writing BoardUS$ 1 - 20MOQ: 1 Set
-
LED Dot Matrix Module/High Brightness Full Color LED Unit Board/High Quality LED Module/P6.0 Full Color Unit Board-SMDUS$ 1 - 20MOQ: 1 Set
-
LED Dot Matrix Module/High Brightness Full Color LED Unit Board/High Quality LED Module/P6.0 Full Color Unit Board-SMDUS$ 1 - 20MOQ: 1 Set
-
LED Dot Matrix Module/High Brightness Full Color LED Unit Board/High Quality LED Module/P7.0 Full Color Unit Board-SMDUS$ 1 - 20MOQ: 1 Set
Specifications
1-Direct factory,2-low price, high quality,
3-good after-sales service,
4-simple operation/Programmable
5-OEM/ODM Accep
Product Name:led name badge,led badge,led name sign,led name tag,led mini sign,led mini display,message board,LED Name Badge,led name badges,Mini Scrolling,LED Name Badge,led name card,Novelty Light LED Badge,Credit Card Size LED Name Badge,LED Message Name Badge,LED Message Display,led desk board
TBD optoelectronics is specializing in the production of LED electronic display screen, LED unit board, the SMD full-color specifications have P3, P4, P5, P6, P7.62, P10,etc. welcome to visit our factory, Skype:Henry_Liu0315
PH4 table stick triad indoor full color technology parameter list:
PH5 indoor full color technology parameter list:
Conventional LED indoor tiles display the main technical parameters | ||
Project classification |
PH5 full-color |
|
Unit carton |
Packaging form |
triad |
LED encapsulation way |
3528 |
|
Physical point spacing |
5 mm |
|
Unit board size |
160 x 80 mm |
|
Cell body size |
480 x 480 mm |
|
Physical density of the |
40000 / m2 |
|
Light color |
1R1G1B |
|
Case resolution |
96 x 96 |
|
Body weight |
30 kg |
|
Main technical parameters |
The best stadia |
5m~35m |
Viewing Angle |
Level > 140 % optional, vertical 100 ° or optional |
|
The average power consumption |
<900w/m2 |
|
Maximum power consumption |
<1800w/m2 |
|
The control mode |
Synchronization control |
|
Display card |
DVI video card |
|
Drive way |
1/8 of the scan |
|
In frequency |
>60Hz |
|
The refresh frequency |
>180Hz |
|
White balance, brightness |
>3000cd/m2 |
|
Working voltage (ac) |
||
Brightness control method |
Induction automatic brightness adjustment: 16 level is adjustable |
|
Computer operating system |
WIN98,WINXP,WIN2000,etc |
|
Video signal |
The RF, S - Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc |
|
The control system |
PCTV card (optional optional) + DVI display card, master card + optical fiber transmission (optional optional) |
|
Mean time between failures |
> 5000 hours |
|
life |
75000 ~ 10000 hours |
|
Rate of pixel is out of control |
< 0.0002 |
|
software |
The LED studio |
|
