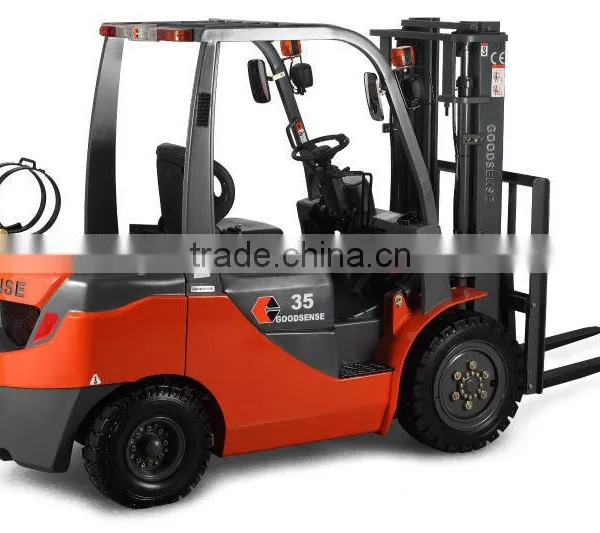

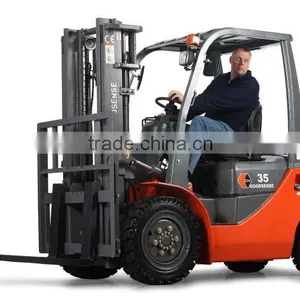

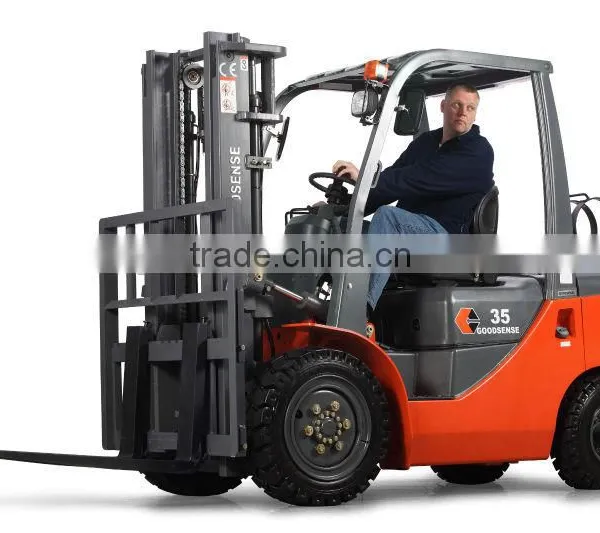

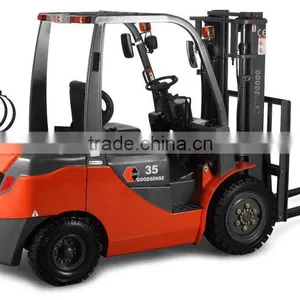

China supplier 3.5ton LPG Forklift Trucks for sale
| Model | FY35 | ||
| Power type | LPG | ||
| Rated capacity | kg | 3500 | |
| Load center | mm | 500 | |
| Lift height | mm | 3000 | |
| Fork size L*W*T | mm | 1070x125x45 | |
| Mast tilt angle(F/R) | Deg | 6°/12° | |
| Front overhang(wheel center to fork face) | mm | 480 | |
| Ground clearance(bottom of mast) | mm | 135 | |
| length to face of fork(without fork) | mm | 2770 | |
| overall width | mm | 1225 | |
| mast lowered height | mm | 2115 | |
| Mast extended height(with backrest) | mm | 4160 | |
| overhead guard height | mm | 2090 | |
| Turning radius(outside) | mm | 2480 | |
| min. insecting aisle | mm | 2530 | |
| Travel(empty load) | km/h | 19 | |
| Lifting(full load) | mm/s | 420 | |
| Max. gradeability | % | 20 | |
| Front tire | 28x9-15-12PR | ||
| Rear tire | 6.50-10-10PR | ||
| Wheel Base | mm | 1700 | |
| Service weight | kg | 4500 | |
| Battery (voltage/capacity) | v/ah | 12/ 80 | |
| Engine model | k25 | ||
| Manufacturer | nissan | ||
| Engine rated output/r.p.m | kw | 37.4/2300 | |
| Engine rated torque/r.p.m. | n.m | 176.5/1600 | |
| Engine No.of Cylinder | 4 | ||
| Bore x stroke | mm | 89x100 | |
| Displacement | cc | 2488 | |
| Fuel tank capacity | L | 60 | |
| transmission type | hydraulic | ||
| transmission type/ | FED/RVS | 1/1 | |
| operating pressure for attachment | Mpa | 17.5 | |
-- Innovative Design
-- Simplified Serviceability
-- Enhanced Productivity
-- Wide-view Mast -- offer enhanced forward visibility, thus more efficiency and safty during operation
-- Solid Overhead Guard -- specially designed for additional security
-- Ergonomics Seat -- much more comfortable and fatigue- reliveable after long time operation
-- Powerful Engine -- imported brand engine ensures high performance, safty and efficiency
-- Super low & Non-slip step
Production Range:
Attachment:
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
As a professional manufacturer of forklift, we also can offer you customized service.
the following items are optional:
Tires: Pneumatic and Solid tire
Color: Yellow,red,orange, green, blue or customized.
Engine: Mitsubishi/XINCHAI/XINCHANG/
VOLVO/QUANXIN/XICHAI/ISUZU/Mitsubishi engine are optional
Mast: 2 stage mast,2-stage full free mast,3-stage full free mast
Power source:Diesel,Gasoline,LPG,CNG,AC/DC electric forklift are available
Attachment: Side shifter, ejector, soft clamp;paper roll clamp; bale clamp/pulp bale clamp; carton clamp; push/pull;pushoff; rotator; block clamp; drum clamp; fork clamp; fork positioner; fork extension .etc.
For the details of customized configurations, quotations and options, please contact with us.
