Home > Transportation > Forklifts & Parts > Forklift > Material Handling Equipment 10t Side Loader Forklift Truck

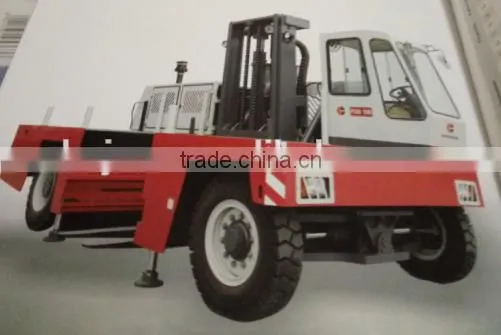

Material Handling Equipment 10t Side Loader Forklift Truck

Name: Material Handling Equipment 10t Side Loader Forklift Truck
Brand: GOODSENSE
SKU: 108341189

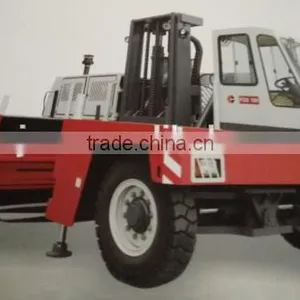

Material Handling Equipment 10t Side Loader Forklift Truck thumbnail-1

Material Handling Equipment 10t Side Loader Forklift Truck photo-1

US$ 50000.00 - 50000.00 MOQ: 1 Piece

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Zhejiang, China

Brand Name:

GOODSENSE

Contact Supplier Request Quote Chat Now

Henan Jingcheng Xiandai Forklift Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo qingdao shanghai xiamen guangzhou shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Zhejiang, China

Brand Name GOODSENSE

Model Number FDS100

Type Powered Pallet Truck

Power Souce Diesel Engine

Rated Loading Capacity 10000kg

Max. Lifting Height 3600mm

Min. Lifting Height 2820mm

Fork Length 1220mm

Fork Width 175mm

Overall Dimensions 6250x2620x3240mm

Certification CE/ISO9001

After-sales Service Provided Overseas third-party support available

Product Description

general	Model				FDS100
	Power type				diesel
	Rated capacity			kg	10000
	Load center			mm	600
characteristic&dimension	Lift height			mm	3600
	Fork size	LWT		mm	1220x175x85
	Mast tilt angle	F/R		deg	6°/6°
	Front overhang(wheel center to fork face)			mm	800
	Ground clearance(bottom of mast)			mm	160
	overall dimension	LWT		mm	6250x2620x3240
		platform width		mm	1800
		platform length		mm	6250
		overhead guard height		mm	2820
	Turning radius(outside)			mm	5650
performance	speed	Travel(empty load)		km/h	14
		Lifting(full load)		mm/s	350
	Max. gradeability			%	20
chassis	Tire	Front			2X9.00-20-14PR
		Rear			4X9.00-20-14PR
	wheelbase			mm	3600
	service weight			kg	15800
power&transmission	battery	voltage/capacity		v/ah	(12/ 80)x2
	engine	model			CY6102BZG-B46
		manufacture			CHAOCHAI
		rated output/r.p.m.		kw	84.6/2500
		rated torque/r.p.m.		n.m	430/1500-1700
		no. of cylinder			6
		bore x stroke		mm	102X118
		displacement		cc	5785
		fuel tank capacity		L	260
	transmission	type			hydraulic
		stage	FED/RVS		2/2
	operating pressure for attachment			Mpa	19

Our Services

one year warranty

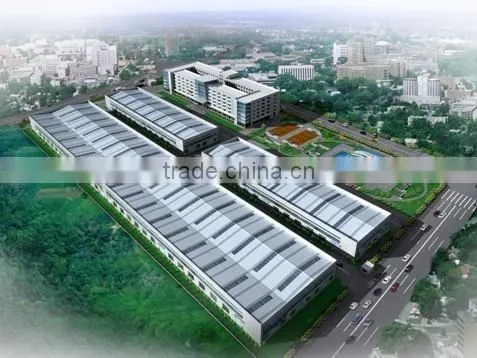

Company Information

Structure workshop

Precious cutting of various thickness of steels are ensured by applying one set of cutting machine, two sets of high-tech CNC plasma cutting machines and one set on NC flame cutting machine.

Assembly workshop

Several Welding Robots and O2C protection ensure and guarantee the welding requirements of structure components.

Respectively set up small ton, large ton and battery lift truck assemble lines ensure an yearly productivity of 20 units of a full range of forklift trucks.

Painting shop

High-performance ball blasting line ensures that all structural parts are perfectly processed before painting to obtain excellent adhesion of the paint and sheet-metal.

Three stoving vanish painting lines ensure an outstanding painting quality for the plants and the complete truck.

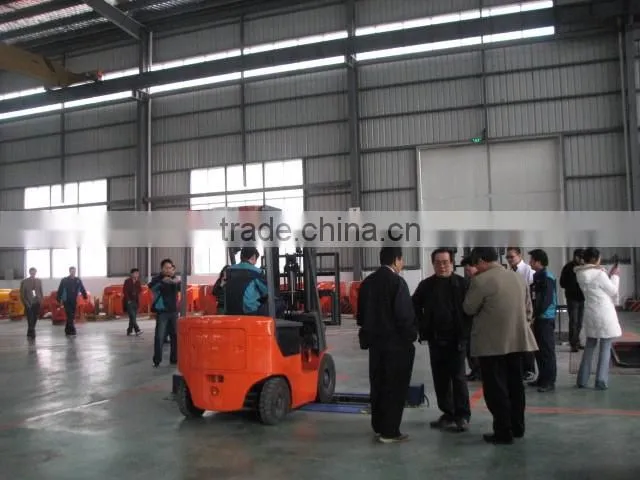

Test site & storage

Goodsense obtains the largest standard forklift testing field east of china. Strict quality management ensures the stability for each forklift. GOODSENSE believe quality is the guarantee of winning market reproduction.

FAQ

1. Do we provide after-sales service?

Yes, we provide.

2. How can you get after-sales service?

We can send our technicians to your country or we can contact in the internet about the problem of machine, then our technicians will tell u or your technician how to solve the problem.
