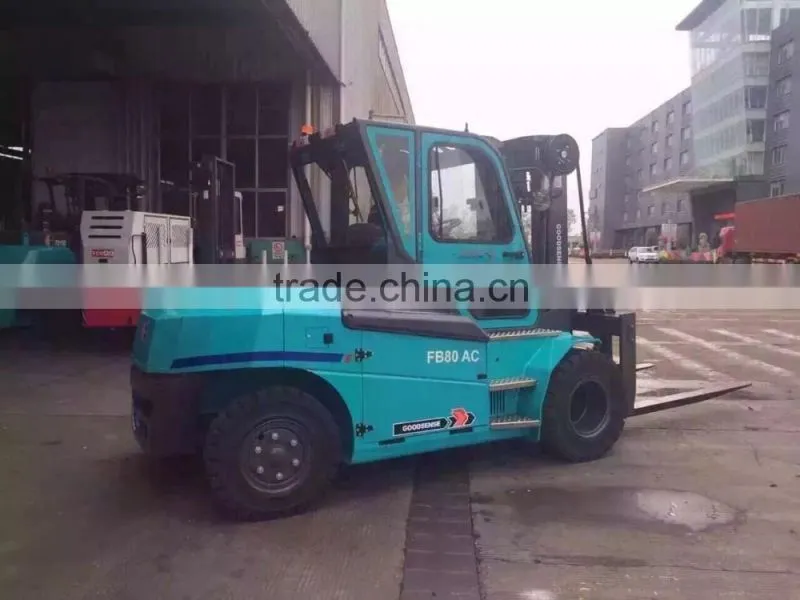

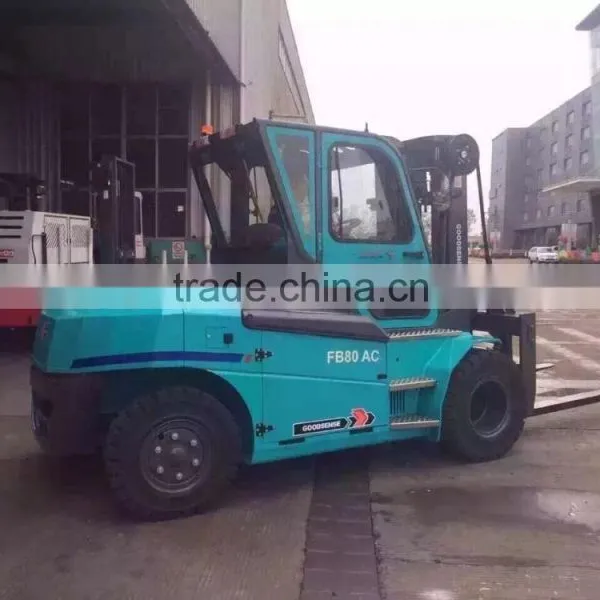

four wheel heavy duty ac motor powered 8 ton battery electric forklift
| Model | FB80 | |
| Capacity | kg | 8000 |
| Load center | mm | 500 |
| Lift height | mm | 3000 |
| Fork size(LxWxH) | mm | 1520x180x70 |
| Mast tilt angle(F/R) | Deg | 6°/9° |
| Length to face of fork | mm | 3600 |
| Overall width | mm | 2000 |
| Mast lowered height | mm | 2580 |
| Mast extended height | mm | 4500 |
| Overhead guard height | mm | 2400 |
| Turning radius | mm | 3250 |
| Min right angle aisle width | mm | 3800 |
| Ground clearance | mm | >200 |
| Wheelbase | mm | 2400 |
| Travel (no load) | km/h | 14 |
| Lifting (full load) | mm | 200 |
| Gradeability(laden) | % | 15 |
| Service weight | kg | 9000 |
| Front tire | 825-15-24PR | |
| Rear tire | 825-15-24PR | |
| Battery (voltage/capacity) | V/ah | 80/900 |
| drive motor | kw | 2x19 |
| lift motor | kw | 2x26 |
one year warranty
Structure workshop
Precious cutting of various thickness of steels are ensured by applying one set of cutting machine, two sets of high-tech CNC plasma cutting machines and one set on NC flame cutting machine.
Assembly workshop
Several Welding Robots and O2C protection ensure and guarantee the welding requirements of structure components.
Respectively set up small ton, large ton and battery lift truck assemble lines ensure an yearly productivity of 20 units of a full range of forklift trucks.
Painting shop
High-performance ball blasting line ensures that all structural parts are perfectly processed before painting to obtain excellent adhesion of the paint and sheet-metal.
Three stoving vanish painting lines ensure an outstanding painting quality for the plants and the complete truck.

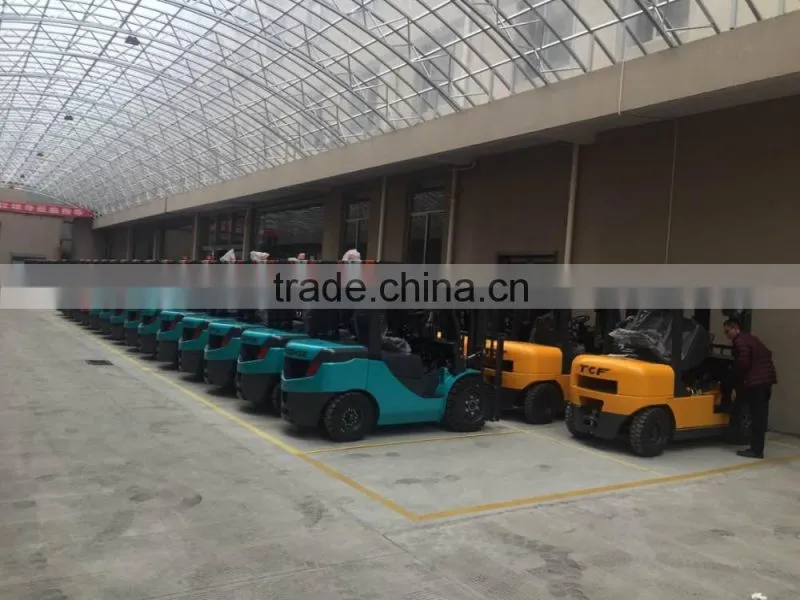

Test site & storage
Goodsense obtains the largest standard forklift testing field east of china. Strict quality management ensures the stability for each forklift. GOODSENSE believe quality is the guarantee of winning market reproduction.
1. Do we provide after-sales service?
Yes, we provide.
2. How can you get after-sales service?
We can send our technicians to your country or we can contact in the internet about the problem of machine, then our technicians will tell you or your technician how to solve the problem.
Performance advantage of a new generation counterbalance electric forklift
super comfort
Comfortable driving space
Full coverage design, wide space design for operator moving legs, convenient and free.
Front and rear adjustable steering wheel and seat
Front and rear adjustable wheel and seat, so that any type of driver can have a comfortable experience.
Humanized hydraulic operation handle and emergency power button
Hydraulic control right handle design, makes the forklift more comfortable operation, higher efficiency.Seat on the right side pf the installation of emergency power button, within reach, which is convenient and safe, it completely conforms to the CE requirement.
Super low and non-slip step
Super low and non-slip step make operating convenient and safe.
Suspension steering axle
Steering axle and frame joints increase special rubber cushion, effectively reduce because of uneven road surfaces and driving vibration on the impact on the driver.
External power plug assembly
External power plug assembly design humanization, charging more convenient, more easy to meet customer requirements.
High safety
Wide angle mast and fork holder make the operator an enhanced forwarder visibility when operating.
Upward visibility
Tilted bars on the overhead guard provide clearer upward visibility when handling loads at height.
Forward visibility
Repositioning the mast tie-bar provides optimal visibility when driving, loading and unloading.
Fork tip visibility
The low dashboard,relocated display and redesigned mast give the perator clear visibility right to the tip of the forks when working at low levels.
High strength head guard
Head guard with special-shaped steel pipe design, both beautiful and increase the overall strength.
Reliable accelerator
Built-in and rear working lamp using LED light source, higher brightness, longer service life, which can effectively reduce the cost of customer service.
The neutral safety function
Only the direction selecting switch put in neutral, they open the key switch to activate the Parking brake
Button type parking brake, easy operation and reliable, and can effectively avoid accidents.
Fork lock function(option)
Either start switch is open or not, as long as the operator is not in the operating position, the fork all operational functions are locked, so as to avoid the misoperation.
Simplified serviceability
Controller
We use and America controllers. The position of the controller is fixed behind the counterbalance to make it convenient to repair and to release heat by counterbalance and body then to improve reliability. It adopts closed structure which will guarantee the controller from pollution and water splash.
Battery
The side cover quick removing design, can be quickly removed without tools. Hood open angle is greater than or equal to 90°, battery maintenance and is very convenient;2-3.5t forklift`s battery can fork loading or lifting loading.
User-friendly LCD instruments
Waterproof, dustproof, shockproof. All the running states of the truck and trouble shooting message can be totally expressed in the form of relevant icons and displayed in the big-size LCD. It makes you get to know the relevant message more easily and dynamically.
Motor
The position of the pump motor aside, make it convenient to repair.
AC motor(Limited to AC and Semi-AC system)
Using a new type of maintenance-free AC motor,without carbon brush and contact, without the replacement of common spare parts, the maintenance cost is lower, make it econimic and comfortable.
