FD50T-C2WP3---Maximal 5ton Rough Terrain Forklifts
| General | 1 | Model | FD50T-C2WP3 | |||
| 2 | Power type | Diesel | ||||
| 3 | Rated capacity | Kg | 5000 | |||
| 4 | Load centre | mm | 600 | |||
| Characteristic | 5 | Lift height | mm | 3000 | ||
| &Dimension | 6 | Free lift height | mm | 145 | ||
| 7 | Fork size | L×W×T | mm | 1220*150*55 | ||
| 8 | Fork regulating range | Min./Max. | mm | 300/1954 | ||
| 9 | Mast tilt angle | F/R | Deg | 15°/15° | ||
| 10 | Front overhang | mm | 732 | |||
| 11 | Rear overhang | mm | 764 | |||
| 12 | Ground clearance | Middle of frame(Unladen/Laden) | mm | 374/354 | ||
| 13 | Bottom of mast(Unladen/Laden) | mm | 320/320 | |||
| 14 | Overall dimensions | Length to face of fork (without fork) | mm | 3622 | ||
| 15 | Overall length(with fork) | mm | 4837 | |||
| 16 | Wheel width | mm | 2055 | |||
| 17 | Frame width | mm | 2067 | |||
| 18 | Mast lowered height | mm | 2565 | |||
| 19 | Mast extended height (with backrest) | mm | 4170 | |||
| 20 | Overhead guard height | mm | 2545 | |||
| 21 | Min. turning radius | mm | 3540 | |||
| Performance | 22 | Speed | Travel(Unladen/Laden) | Km/h | 22/21 | |
| 23 | Lifting(Unladen/Laden) | mm/s | 570/500 | |||
| 24 | Pressure | Laden lifting(normal/max) | Mpa | 15.6/19 | ||
| 25 | Unladen lifting(normal/max) | Mpa | 2.6/19 | |||
| 26 | Laden tilting(normal/max) | Mpa | front 1;rear 12/front 19; rear 19 | |||
| 27 | Max. Drawbar pull(Laden/unladen) | KN | 50 | |||
| 28 | Max. Gradeability(Loaden/unladen) | % | 30/32 | |||
| Tyre | 29 | Tyre | Front | 445-65-22.5PR/1175 | ||
| Rear | 12.5/80-18/958 | |||||
| 30 | Tread | Front | mm | 1620 | ||
| Rear | mm | 1720 | ||||
| 31 | Wheelbase | mm | 2125 | |||
| Weight | 32 | Self weight | kg | 8450 | ||
| 33 | Braking distance | m | ≤6 | |||
| Transmission | 38 | Engine | Model | 1104C-44T | ||
| 39 | Manufacture | PERKINS | ||||
| 40 | Rated output/r.p.m. | Kw | 74.5/2300 | |||
| 41 | Rated torque/r.p.m. | N.m | 415/1350 | |||
| 42 | No. of cylinder | 4 | ||||
| 43 | Bore×Stroke | mm | 105×127 | |||
| 44 | Displacement | L | 4.4 | |||
| 45 | Transmission | Manufacture | China | |||
| 46 | Type | Powershift | ||||
| 47 | Stage | F/R | 2/1 | |||
Engine:
Two-Wheel Drive System:
1.Maximal rough terrain forklift is a tough, compact forklift with a two-wheel drive system.
2.The forklift is based on conventional forklift, but built for rough terrain performance.
Steer Axle:
The steering angle is from 43.6°to 70° with very small turning radius.
Transmission:
1.Power shift transmission with torque converter features two (2) pedal inching and brake control and full reversal allowing faster cycle times.
2.The 100% differential is specifically designed for rough terrain and features automatic differential lock providing ultimate traction during inclement weather conditions and rough operating surfaces.
Maneuverability:
2.5T rough terrain forklift body min. ground clearance is 250mm;
3.5T rough terrain forklift body min. ground clearance is 284.5mm;
Floating System:
1.The Maximal rough terrain forklift adopts a floating R.O.P system.
2.Maximal’s engineers use superior full floating operator cabin. It has adapted the latest ergonomics for operator convenience.
3.Travel & hydraulic controls are positioned forward for most ergonomic natural operation.
4.Fully adjustable tilt steering wheel and fully suspension seat with seat belt accommodates all size operators.
Mast:
Mast: Wide View& Durable
1. 2.5T rough terrain forklift mast width is 1525mm;
2. 3.5T rough terrain forklift mast width is 1600.5mm;
3. Maximum mast tilt angle F/R reaches to 10°/12°

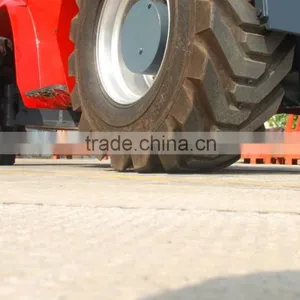

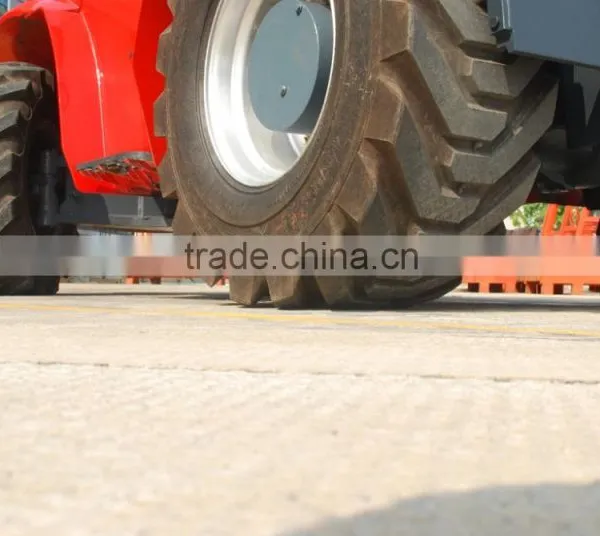

Tyres:
Maximal rough terrain forklift front tyres are a special heavy truck tyre with a wide footprint giving it greater stability and lift capacity in rough work environments.
Pre-Sales Service After-Sales Service
* Inquiry and consulting support.
* View our Factory.
* Inquiry and consulting support.
* View our Factory.We can supply the following product for you: 1-48Ton Diesel Forklift; 1-12Ton Electric Forklift; 1-7Ton LPG Forklift; CNG Forklift; 1.2-2Ton Electric Pallet Stacker; 1.3-3Ton Electric Pallet Truck; 2-3Ton Manual/ Hand Pallet Truck; 1.5-2.5Ton Reach Lift Truck; 2-3.5Ton Rough Terrain Forklift; 3-12Ton Side Loader; 1.6-2Ton Three Wheel Forklift.
We also can provide attachment for you, for example, paper roll clamp; bale clamp/pulp bale clamp; carton clamp; pusher/puller; pushoff; rotator; block clamp; drum clamp; fork clamp; fork positioner; fork extension; side shifter.etc.
1.What Certificates do you have?
Goodsense forklifts meet the ISO9001 Quality System. And all of our products have CE certification. EPA and GOST Certification can also be available if needed.
2. Can you customize and design as the clients' requirement?
Goodsense will try its best to meet all kinds of clients' special requirements. And for new products that have not been into the market yet, we have our technical team to help the clients.
All kinds of attachments such as roll paper clamp, side shifter and so on can be available.
3. How long is the warranty of your products?
All of products are within 1 year / 1000 working hours whichever occurs earlier.
4. Can you produce the products labeled with the client's brand?
Yes, we can. Please provide us the authorization of the brand, so we can supply the product to you on an OEM basis.
5. What's the terms of payment?
It’s our practice to accept payment by T/T 30% deposit, 70%
6. What's your procuct ranges?
We can supply the following product for you: Diesel Forklift; Electric Forklift; LPG Forklift; CNG Forklift; Electric Pallet Stacker; Electric Pallet Truck;
Rough Terrain Forklift;Hand Pallet Truck; Side Loader; Three Wheel Forklift.
We also can provide attachment for you, for example, paper roll clamp; bale clamp/pulp bale clamp; carton clamp; push/pull; pushoff;
rotator; block clamp; drum clamp; fork clamp; fork positioner; fork extension; side shifter.etc.
7. Can i choose the lifting height?
Yes, you can. we have three types of mast: wide view mast; wide view 2-stage full free mast; wide view3-stage full free mast.
The lifting height is from 3m to 7m, please chat with us for details and price.
