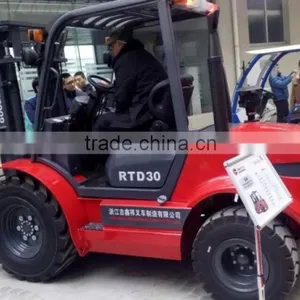

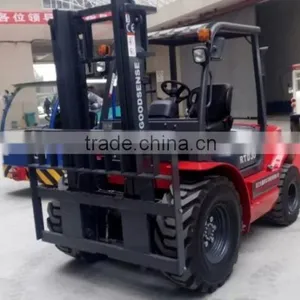

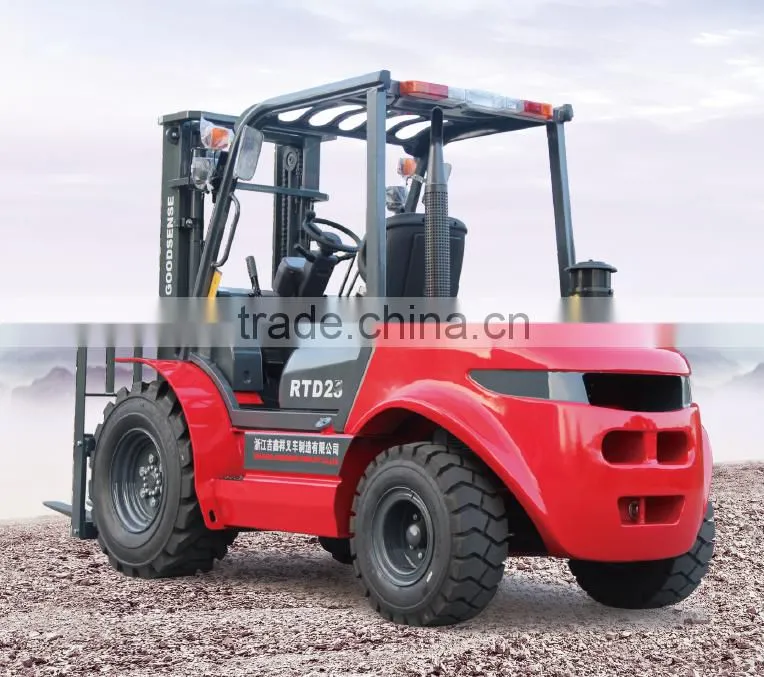

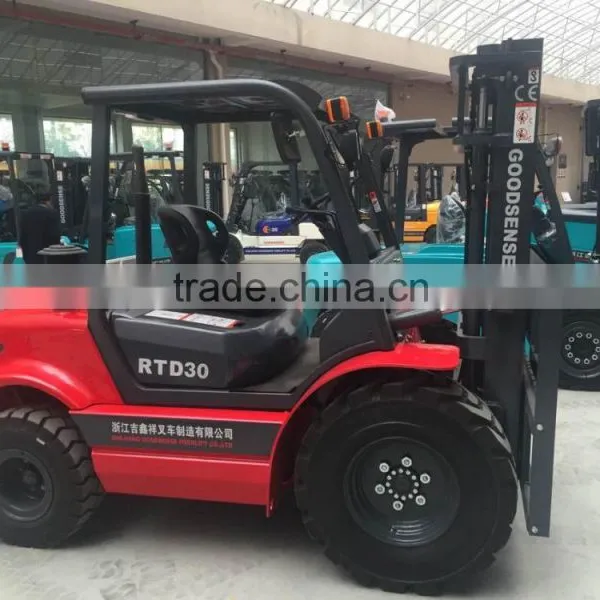

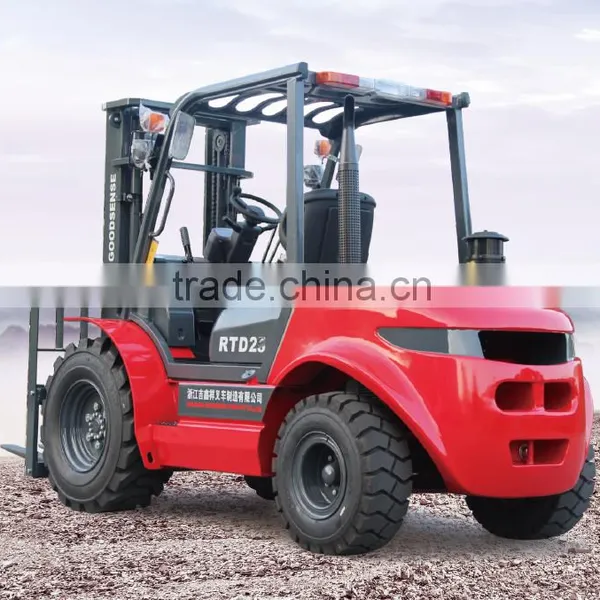

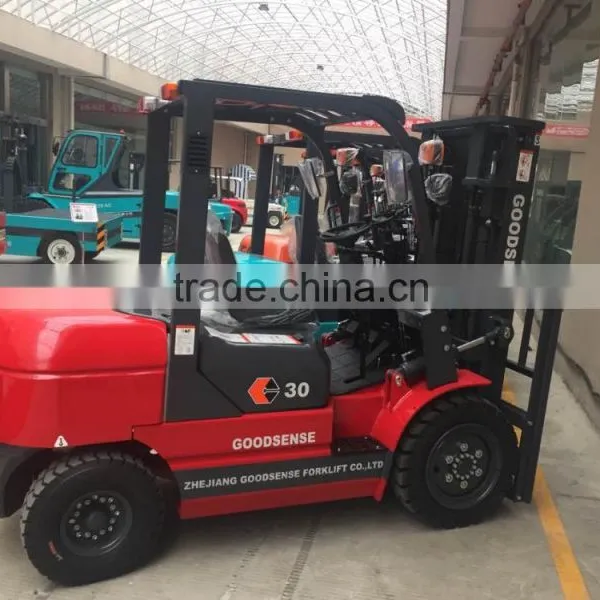

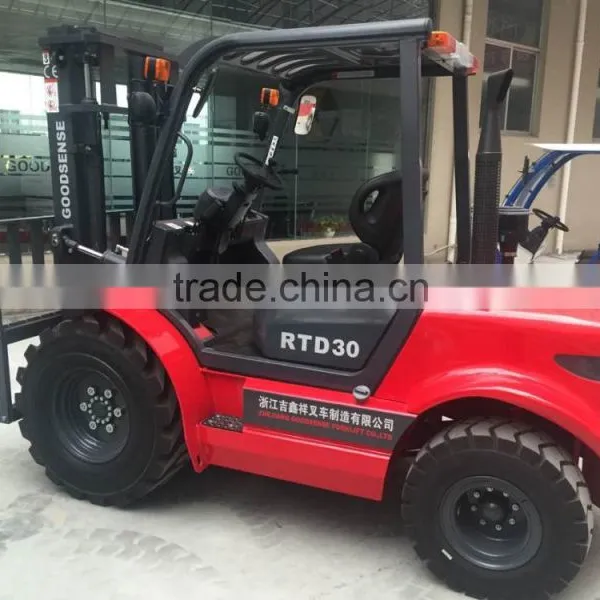

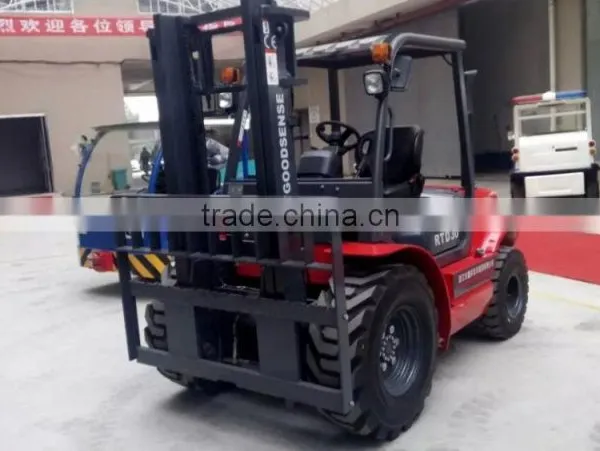

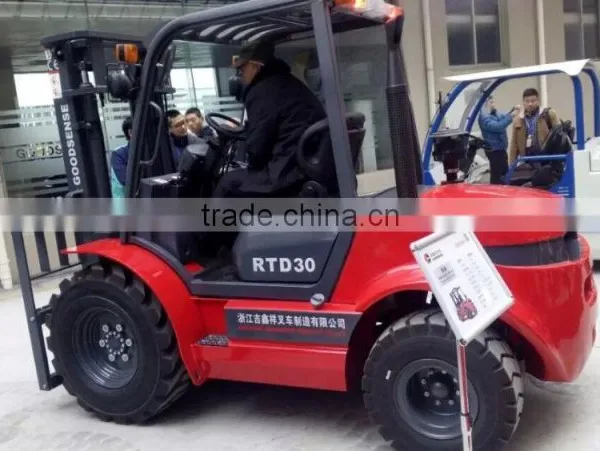

Help Center2000kgs Small All Rough Terrain Forklift With ce Certificate
Related Products
-
Four Wheel Drive 2.5ton Rough Terrain ForkliftUS$ 24615.00 - 24615.00MOQ: 1 Set -
2ton Trucks Forklifts Rough Terrain Four Wheel Drive Truck ForkliftUS$ 24153.00 - 24153.00MOQ: 1 Set
-
All Wheel Drive Rough Terrain Forklift 3tonsUS$ 24153.00 - 24153.00MOQ: 1 Set
-
Two Wheel Drive Rough Terrain Forklift 3000kgsUS$ 20461.00 - 20461.00MOQ: 1 Set
-
China Wholesale Cheap Price 3.0 Ton(2TON,2.5TON,3.5TON) Rough Terrain Forklift Cheap Diesel Forklift Truck With CEUS$ 8,235 - 21,969MOQ: 1 Set
| Model | RTD20 | |
| Power type | Diesel | |
| Capacity | kg | 2000 |
| Load center | mm | 600 |
| Lift height | mm | 3000 |
| Fork size(LxWxH) | mm | 1070*120*40 |
| Mast tilt angle(F/R) | Deg | 10°/12° |
| Length to face of fork | mm | 3060 |
| Overall width | mm | 1604 |
| Mast lowered height | mm | 2115 |
| Mast extended height | mm | 4250 |
| Overhead guard height | mm | 2200 |
| Turning radius | mm | 2750 |
| Min. right angle aisle width | mm | 2615 |
| Front overhang | mm | 601 |
| Ground clearance | mm | 265/250 |
| Wheelbase | mm | 1835 |
| Travel (no load) | km/h | 22/22 |
| Lifting (full load) | mm/s | 480/550 |
| Gradeability(laden) | % | 20 |
| Service weight | kg | 3590 |
| Front tire | 14-17.5-14PR | |
| Rear tire | 27X10-12-12PR | |
| Battery (voltage/capacity) | v/ah | 12/90 |
| Engine model | 4TNE98-BQFLC | |
| Engine rated output/r.p.m | kw | 42.1/2300 |
| Engine rated torque/r.p.m. | n.m | 186-206/1700 |
| Engine No.of Cylinder | 4 | |
| Bore x stroke | mm | 98X110 |
| Tranmission Model | Automatic | |
| Drive type | 2WD |
1,Mini forklift for narrow and small space.
2,Low center of gravity, small turning radius ;more stable and reliable
3,Comfortable seat for long-time operation
4,Safe overhead guard
5,Rear light for working in the dark
6,Dual air filter
7,Streamline balance weight
8,Side shifter is optional
9,Optional mast: 2-stage 3.3m/3.5m/4mmast; 3-stage4.5m/5m/5.5m/6mmast.
Nude in container or sea worthy package
If anything go wrong within12months or 1000 hours, which ever come first from the date of purchase Goodsense will pay for parts to have the repairs conducted any shipping expenses will be also paid by Goodsense and in return,clents need to give back the parts needed to be exchanged to Goodsense, with shipping expenses paid. If a part is bad and urgent, clients take photos of scutcheon, side of the whole forklift and the bad part, Goodsense can send out the part within a day, and if the weight not excess 10KGs, Goodsense can deliver parts toclients by DHL,Fedex or else, if it is heavier, shipped by sea within a day. as for the labor, Goodsense will refund clients with 100dollar per set,if clients order quantity excess 20 sets yearly.
Goodsence will not be responsible for damage cause by the user or owner or lack of required maintenance or abuse.
1.What's the Certificate do you have?
Goodsense workshop meet with the ISO9001 Quality System. And all of our products are with CE certificate. Epa approval can be available if needed.
2. Can you customize and design as the clients' requirement?
Goodsense will try its best to meet all kinds of clients' special requirements. And for new products that have not been into the market yet, we have our technical team to help the clients. All kinds of attachments such as roll paper clamp, side shifter and so on can be available.
3. How long is the warranty of your products?
All of products are with 1 year / 1000 working hours subject to the first.
4. Can you produce the products labeled with the client's brand?
Yes, we do!
With the authorization of the brand, we can OEM for our clients.
5. What's the payment terms do you accept?
Normally we accept 30% deposit, 70%balance before delivery.
6. Delivery date:
If clients need normal products, we will deliver the products within 25days. If clients need customerized products, the delivery date depend on the requirements.
