Specifications
used forklift;TK450series;with 5T load capacity;
full AC electric forklifts;
Easy Maintenance;
Used Forklift,

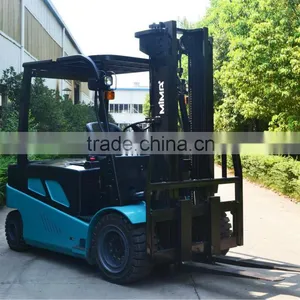

Full AC 4-wheel counterbalance forklift truck, TKB series;
Rated load capacity:2T,2.5T,5T, LIFT Height: 3000-6000mm
Main Features:
1)better stability:Low layout for battery ,with low center of gravity,
2)water-proof connector;
3)full hydraulic power-assisted steering system,easy to steering and save the energy;
4)Aeroseal wet disc type brake;
5)Curves safe control: the speed will automatic reduced when turning,to aviod the possibility of rollover;
6)Regenerative braking function to increase the working hours for forklift;
7)Better Durability: unitary frame with better strength and rigidity,
8)ergonomics design: comfortable seat,ample inner room and wide visibility;
9)wide angle centre rearview mirror with wide visibility;
10) Comfortable seat with damping function;
|
Description Model No. |
TK20B |
TK25B |
TK50B |
||
Standard |
Power Type |
Battery |
Battery |
Battery |
|
Operate Type |
seated |
seated |
seated |
||
Rated Capacity |
Q(kg) |
2000 |
2500 |
5000 |
|
Load center |
C(mm) |
500 |
500 |
500 |
|
T & |
Wheel Type-Front/Rear |
Solid tire |
|||
Front Wheel |
200/50-10 |
21×8-9 |
21×8-9 |
||
Front Rim |
6.50F-10 |
6.00E-09 |
9.75-15 |
||
Tyres No. -front/rear (X=Drive wheel) |
2X / 2 |
2X / 2 |
2X / 2 |
||
D |
Fork Tilt Angle----Upward/Downward--deg. |
α/β(º) |
6/7 |
6/7 |
6/8 |
Lift Height |
h1(mm) |
3000 |
3000 |
3000 |
|
Height--Free Lift |
h2(mm) |
/ |
/ |
/ |
|
Height---Mast Lowered |
h3(mm) |
2120 |
2120 |
2510 |
|
Hegith-Mast Extended |
h4(mm) |
3620 |
3620 |
4005 |
|
Height-Mast Extended w/ Load-Backrest |
h5(mm) |
4010 |
4010 |
4290 |
|
Height-Overhead guard--mm |
h6(mm) |
2050 |
2050 |
2320 |
|
Ground Clearance-center of front&rear axle |
h9(mm) |
135 |
160 |
145 |
|
Overall Length |
11(mm) |
3225 |
3225 |
4020 |
|
Length-to Fork Face |
12(mm) |
2155 |
2155 |
2950 |
|
Overall Width |
b1/b2(mm) |
1160/1066 |
1160/1066 |
1500/1340 |
|
Trurning radius |
Wa(mm) |
1960 |
1960 |
2600 |
|
Function |
Travel Speed -laden/unladen |
km/h |
11.2/14 |
12/15 |
14/17 |
Lift Speed -laden/unladen |
mm/s |
220/310 |
220/310 |
310/450 |
|
Max. Gradeability -laden/unladen |
% |
10/15 |
10/14 |
6.5/12 |
|
P |
Drive Motor type |
AC |
AC |
AC |
|
Driving Motor (S2 60) |
kw |
4.5*2 |
4.5*2 |
9.1*2 |
|
Lift motor type |
AC |
AC |
AC |
||
Lift Motor (S3 15%) |
kw |
8.6 |
8.6 |
22 |
|
Battery V/AH |
V/AH |
48/600 |
48/600 |
80/800 |
|
Weight |
Battery |
kg |
945 |
945 |
2100 |
Service Weight |
kg |
3980 |
3980 |
7450 |
|
Steering |
Steering type |
Full hydraulic |
|||
Parking Brake model |
Hydraulic power |
||||
Parking Operation type |
Pedal |
||||
Service Brake-Operation type |
Hand Brake |
||||
ISO certificate;
Any requirements or question on material handling equipments,pls don't hesitate to contact with us.
