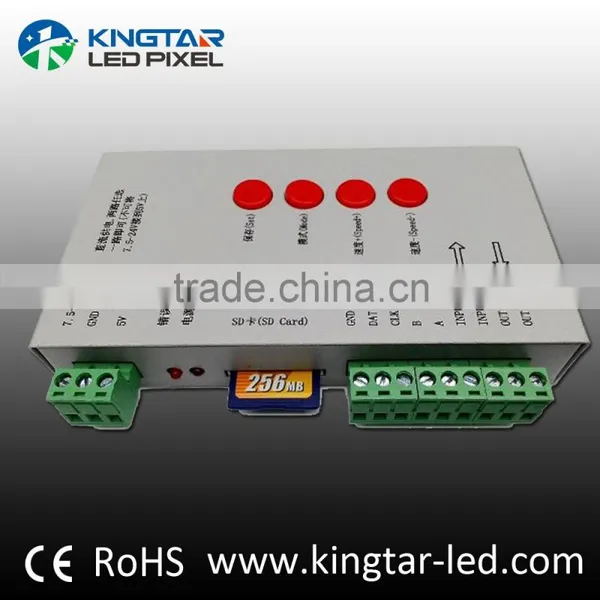

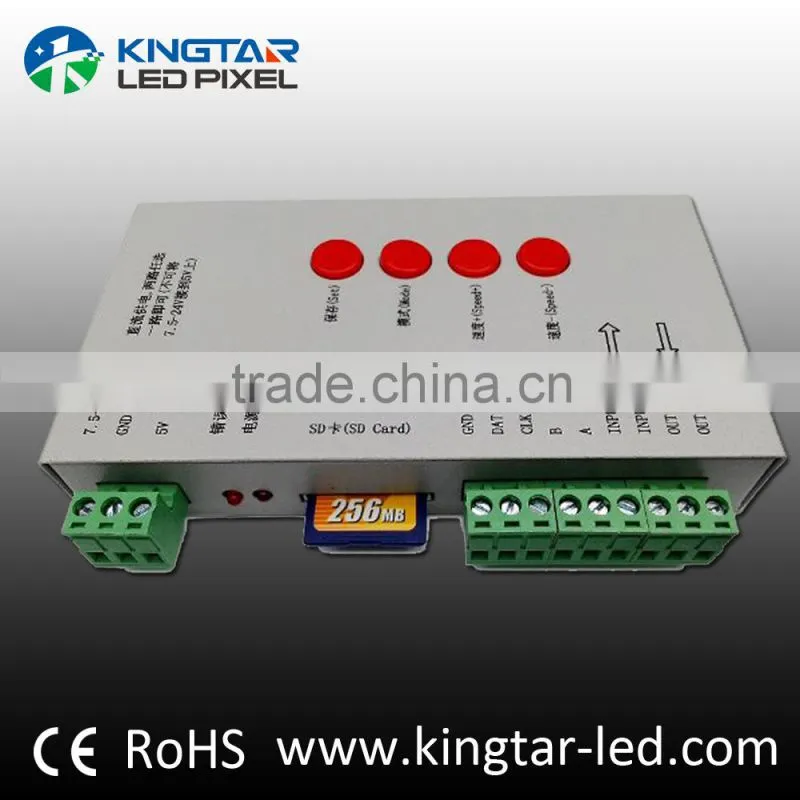

T-1000S SPI SD card controller for LED Pixels
Features:
-2048Pixels capacity.
- 256 Gray,Gamma correction processing software.
- Support the rules and special-shaped handle.
- Controller, a port output, may bring 1024/2048 light.
- Off-line control, play back content stored in the SD card
- T-1000C store a maximum of 16 documents
Note: The model T1000S with one port output, When it control 512 pixels the speed can reach
30fps, more than 512 pixels, the frame speed will be slow down automatically
Memory Card:
- Type: SD Card
- Capacity: 256MB
- File Format: FAT file format
- Store files: *.led
Physical parameters:
- Weight:0.35kg
- Size:122mm*67mm*25mm
- Temperature :-40-85 Degree
- Volgate: DC5V / DC7.5-24V
- Power:3W
Support IC type |
Module in LedEdit software |
Pixel numbers |
Remark |
LPD6803,D705,1101,6909, 6912 |
T-1000-6803 |
2048 pixel
|
|
LPD8806,LPD8809 |
T-1000-8806 |
2048 pixel |
|
TM1803,TM1804,TM1809,TM1812 |
T-1000-TM |
2048 pixel |
TM1804 and TM1809 low speed and high speed |
TM1903TM1904TM1909TM1912 |
T-1000-TM19 |
2048 pixel |
|
UCS6909UCS6912UCS7009UCS5903 |
T-1000-UCS-32 |
2048 pixel |
|
UCS1903UCS1909UCS1912 |
T-1000-UCS-256 |
2048 pixel |
low speed and high speed |
UCS3903 |
T-1000-UCS-1024 |
2048 pixel |
|
DMX512 |
T-1000-DMX |
170/512 pixel |
Compatible DMX512 |
WS2801,WS2803 |
T-1000-WS |
2048 pixel |
|
WS2811 |
T-1000-WS2811 |
2048 pixel |
low speed and high speed |
DS189 |
T-1000-DS189 |
2048 pixel |
|
TLS3001,TLS3002TLS3008 |
T-1000-TLS |
* pixel |
|
P9813 |
T-1000-P9813 |
2048 pixel |
|
SM16715 |
T-1000-SM16715 |
2048 pixel |
low speed and high speed |
SM16716 |
T-1000-SM16716 |
2048 pixel |
|
BS0901,BS0902 |
T-1000-0901 |
2048 pixel |
|
BS0815 |
T-1000-0815 |
2048 pixel |
|
