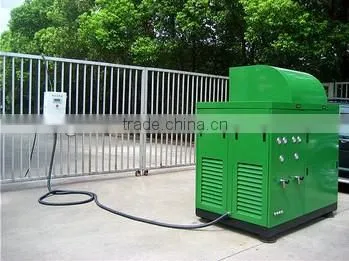

CNG Filling Station 50Nm3/h

Name: CNG Filling Station 50Nm3/h
Brand: Guosha
SKU: 108469407

US$ 14,500 - 18,500 MOQ: 1 Unit

Key Specifications

Condition:

New

Type:

Reciprocating

Configuration:

Stationary

Shanghai Guosha Compressor Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai seaport

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Reciprocating

Configuration Stationary

Power Source AC Power

Lubrication Style Lubricated

Mute Yes

Place of Origin Shanghai, China

Brand Name Guosha

Model Number GS-50

Voltage 220/380/415v

Dimension(L*W*H) 1980-1700-1000mm

Weight 850kg

Certification YES

Warranty 12 months

After-sales Service Provided Overseas third-party support available

Specifications

CNG filling station 50Nm3/h
Standard Capacity( Nm3/h): 3.0
Feed pressure Mpa: 0.01
Product Pressure 25MPA

CNG filling station 50Nm3/h

GS-50 commercial fleet CNG compressor station
refeul nature gas vehicle for convenience. save cost.
explosed proof type

compressed natural gas refuel station
Model: GS50
Standard Capacity( Nm3/h): 50.0; 15 GGE

Feed pressure Mpa: 0.1
Exhaust Pressure MPa(G): 20, 3000psi/ 25mpa, 3600psi
Inlet Temp C: 20
Cooling: air

motor: 380v 50hz, 230v 60hz, 3phase

Brand: GS

code	GS50
Flow rate	50Nm3/h 30cfm
filling time	15minutes for 60L tank(200bar 3000psi)18minutes for 60L tank(250bar3600psi)
working pressure	200bar/3000psi or 250bar/3600psi
Inlet pressure	Less than 0.3bar4.5psi
Motor power	EX18.5kw/25hp 50/60hz,three phase
Oil separator/oil filter	2/1
safety valve/alarm sensor	4 in each stage/option
time meter	manual/1
starter
switch	auto stop/1
emergency stop
condensate/gas drain	manual
filling hose connect	2-4
dimensions(H-W-D)	1980-1700-1000mm
weight	850kg
noise level	80db(A)
