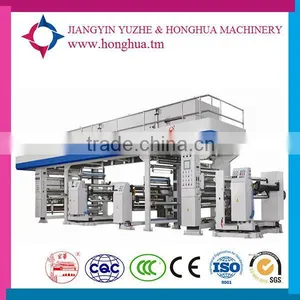

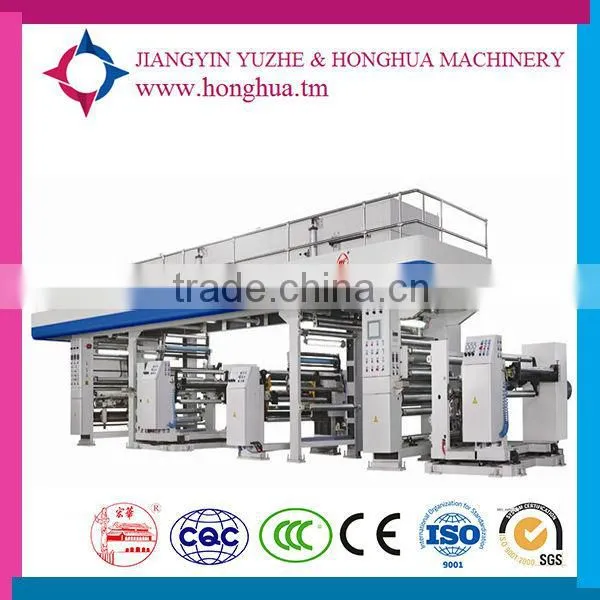

HF-1000 dry-type laminating machine
Main feature and performance
This model machine is used for PET, Nylon, CPP, CPE, Aluminum foil, paper and such roll base materials’ dry-type laminating process. The whole machine adopts Mitsubishi PLC control and man-machine interface operation.
Main technical parameter
1. Dip-coating width: 400-1000mm;
2. Dip-coating method: directly Anilox roll laminating;
3. Electric oven open method: Oven lid with air impulsion, make material-loading convenient.
4. Automatically counting meters when winding.
5. Pneumatic roller for unwinding and rewinding: 3” (diameter: φ73mm);
6. .Power: 130kw
7. Overall size (L×W×H): 1300×2100×3500(mm);
8. Total weight: 12000kg.

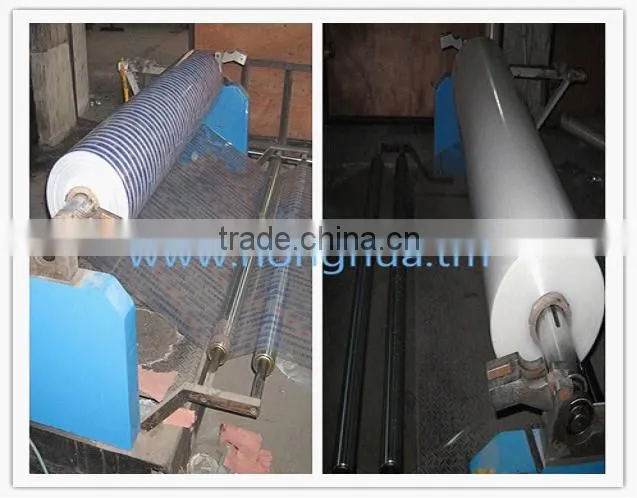

PART1: Unwnding system
Max diameter of First unwinding |
φ1000mm |
Max diameter of Second unwinding |
φ600mm |
tension |
Controlled by inverter motor |
Roller change |
Manual |
Pneumatic roller for unwinding |
3” (diameter: φ73mm) |
Rectifying device(EPC)length |
±100mm |
Hot Melt Adhesive lamination and coaters machine

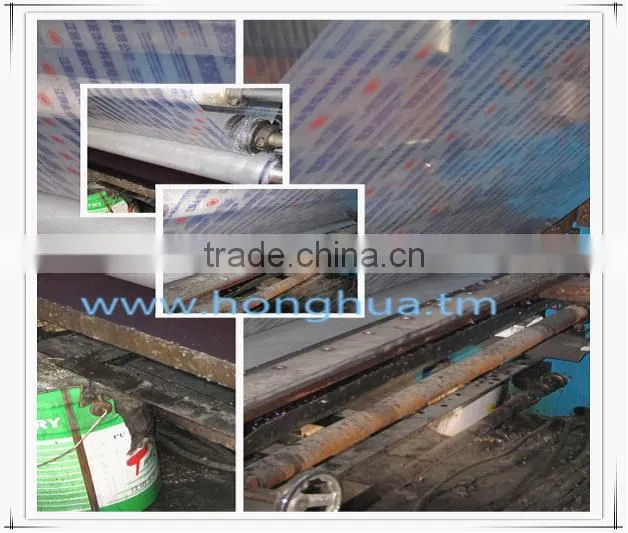

PART2: Coating glue system
Dip-coating width |
400-1000mm |
Dip-coating method |
directly Anilox roll laminating |
Machines’ design speed |
0-150m/min |
Line speed in the real production |
0-120m/min |
Hot Melt Adhesive lamination and coaters machine

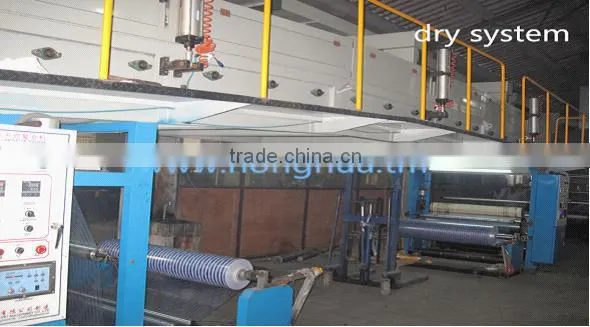

PART3: Dry system
1.Electric oven, secondly use hot air, save energy, use independent piecewise constant temperature drying system, together with electric temperature Measuring device, control the temperature automatically, air in and out device can be adjusted ,high strength and totally be dried.
2.Electric oven open method: Oven lid with air impulsion, make material-loading convenient.
3. In the oven guiding roller with active control, the transmission of rollers adopts synchronous belt to link each other, use vector inverter control system, same step with main motor.

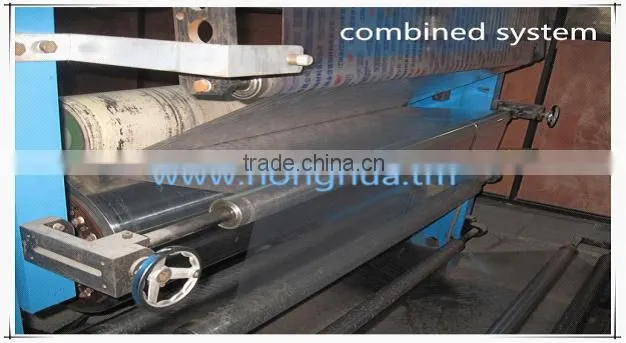

PART4: Combine system
Winding type |
central type |
Max diameter |
1200mm |
tension |
Controlled by inverter motor |
Roller change |
Manual |
rectifying device(EPC)length |
±100mm |
Pneumatic roller for rewinding |
Pneumatic roller for rewinding |
Hot Melt Adhesive lamination and coaters machine
PART5: Sample pictures
PART6:Loading pictures
PART7: Factory pictures
PART8: With customers
PART9: Part brand list
PART10: Certificates
FAQ.
Jiangyin City Yuzhe International Trading CO.,LTD
Jiangyin City Yuzhe International Trading CO., LTD., has 30 years of industrial experience. We are the leader of in the production of soft plastic package such as coating machine ,blowing and printing machine and act. we have independent import and export corporation and the factory entitled research , design and production .
