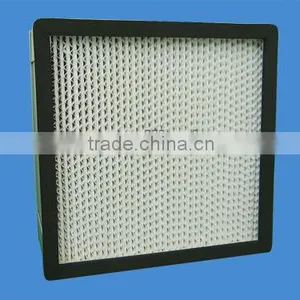

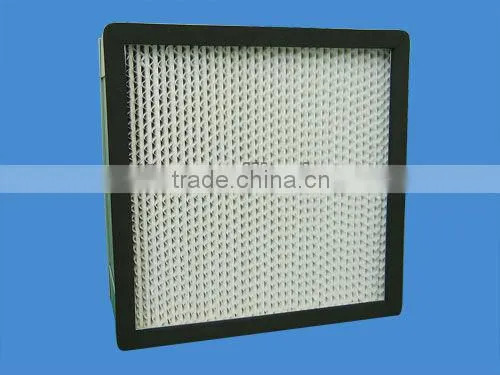

HEPA box type air filter for HAVC system
1.efficiency:99.99%
2.box type

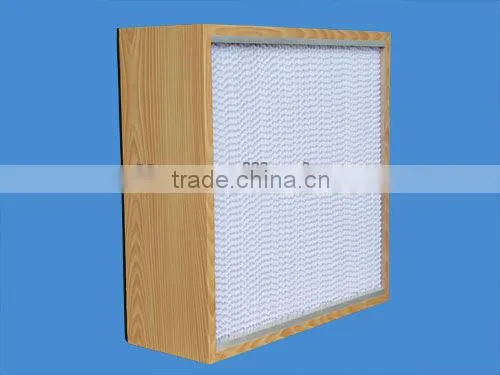

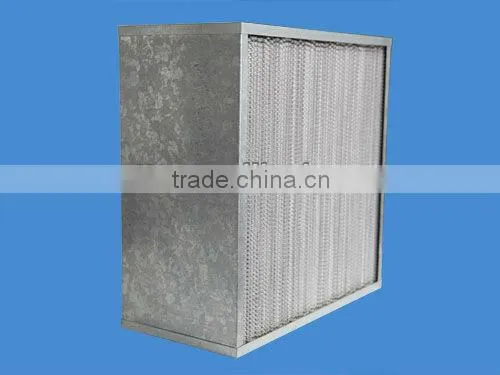

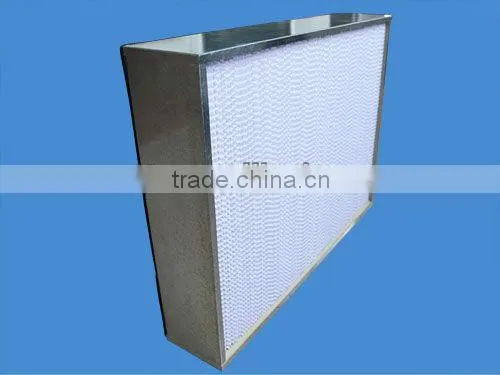

3.alluminum/GI/wooden frame type
Deep-pleat HEPA filter
Compared with mini-pleat filter, absolute HEPA filter has larger filtering area, higher air penetration rate and lower drag force if the installation sectional module is the same and there is no limitation to the thickness of the part where the filter is to be installed. Its filtering rate against MPPS(Most Penetrating Particle Size of 0.1um—0.3um diameter)is higher than 99.95%.Normally, this product can be used as end filter of ventilation and filtering system, ceiling of clean room or high efficiency air outlet.
Dimension(mm) |
Area of net media(m2) |
Rated airflow(m3) |
Initial resistance(pa) |
915×610×220 |
27.69 |
2000 |
≤220 |
630×630×220 |
18.91 |
1500 |
≤220 |
610×610×150 |
10.50 |
1000 |
≤220 |
484×484×220 |
11.46 |
1000 |
≤220 |
320×320×220 |
4.70 |
500 |
≤220 |
