Specifications
Excellent linearity and flatnessWide range of optical input power
Build-in filter
Gift box packing
OEM is welcome!
Term of Freight is optical accoding to the need of our customers
Introduction
HDMISAT TECHNOLOGY Co., Ltd led by technology and innovation, specializes in manufacturing satellite receivers and HD network web players. Since its inception, the company has been implementing integrated development strategies of research & development, manufacturing and sales. At the moment, the development and manufacturing technology level of these two kinds of products are cutting edge.
The HDMISAT sales network covers domestic and international distribution. Our satellite receivers of DVB-T2, DVB-T, DVB-S2, ISDB-T standard series product are fully functional, and we get the recognition and trust from our customers with the reliable and stable software and hardware. The technology of our HD web player with Android and Linux system have been enhanced a lot, giving a perfect experience to the users.
We have a strong technology team, with innovation as the core power for company development, relying on strong R&D and keeping touch in the latest cutting-edge technology, forming a core competitive advantage of products through product innovation and breakthroughs. Our satellite receiver and HD network player have elegant designs, meet the needs of customers to the fullest extent in the supporting VOD, time shift, EPG and multi-language OSD. We also provide timely software updates to cater for the needs of our customers.
We have a strict quality management system, with the advanced equipment, rich production experience, and excellent product quality. Our products not only have a stable customer base in domestic market, but also enjoy an excellent reputation in overseas with high quality products, competitive prices, personalized service and prompt delivery!
. Our market includes Europe, Southeast Asia, the Middle East, South America, Africa and other regional areas.
"Quality first, reputation first" is HDMISAT’s basic principle, and "satisfaction to customers, service to customers" is our service aim. In the future as a first-class innovation pioneer enterprise we are committed to going hand in hand with the industry, being guided by the technology innovation, depending on the guidelines of outstanding product quality and perfect service.

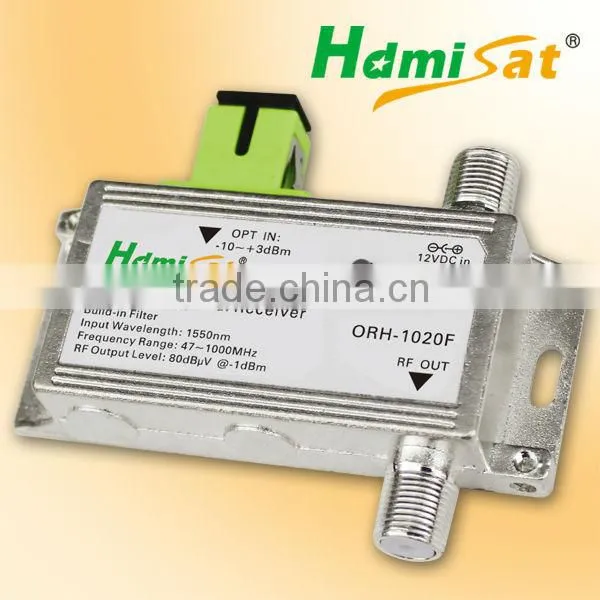

Features:
- Designed for FTTH(Fiber To The Home) networks
- Excellent linearity and flatness
- Wide range of optical input power
- Single-mode fiber high return loss
- Using GaAs amplifier active devices
- Ultra low noise technology
- Smaller size and easier install
- Red-LED for power indication
- Color-LED for optical power indication
- Build-in filter
- Double color LED for optical power indication (Non-lighted:optical power<-10dBm,Green:-10dBm<optical power<+3dBm,Red:optical power>+3dBm)
Specifications:
| Number Item | Unit | Description | Remark |
| Customer Interface | |||
| RF Connector | F-female | ||
| Optical Connector | SC/APC or FC/APC | ||
| Power Supply | F-female | ||
| Optical Parameter | |||
| Responsivity | A/W | ≥0.9 | |
| Input Optical Power | dBm | -10~+3 | |
| Optical Return Loss | dB | ≥45 | |
| Input Wavelength | nm | 1550±20 | |
| Optical Fiber Type | Single Mode | ||
| RF Parameter | |||
| Frequency Range | MHz | 47-1000 | |
| Flatness | dB | ±0.75 | |
| Output Level | dBµV | ≥80 | -1dBm input power |
| CNR | dB | ≥50 | -1dBm input power |
| CSO | dB | ≥62 | |
| CTB | dB | ≥65 | |
| Return Loss | dB | ≥16 | |
| Output Impedance | Ω | 75 | |
| Other Parameter | |||
| Power Supply | VDC | 12 | |
| Power Consumption | W | <2 | |
| Dimensions | mm | 75*63*17 | |
