TV/FM Wall Socket

TV/FM Wall Socket photo-1
TV/FM Wall Socket photo-2
TV/FM Wall Socket photo-3
TV/FM Wall Socket photo-4
US$ 1.5 - 2 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Brand Name:
OEM
Model Number:
GW-2102C
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
ZHUHAI
Delivery Detail:
Delivery time depends on order quantity.
Brand Name OEM
Model Number GW-2102C
Place of Origin Guangdong, China

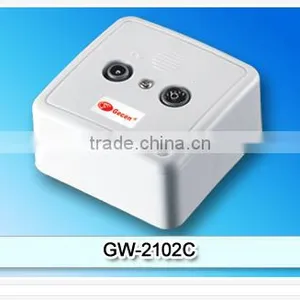

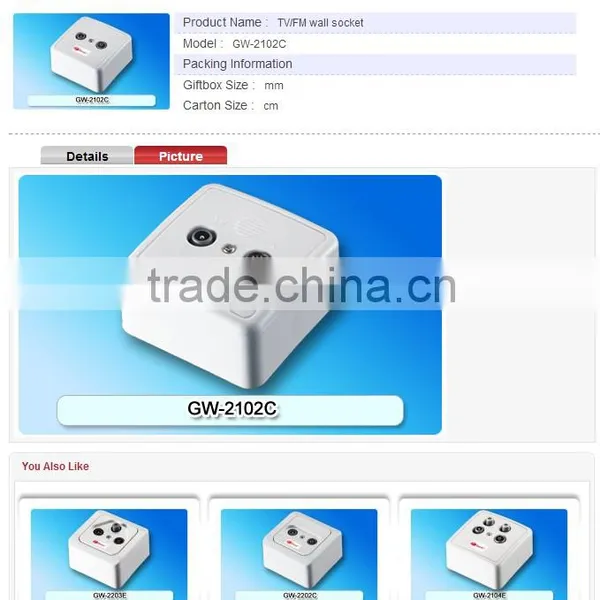

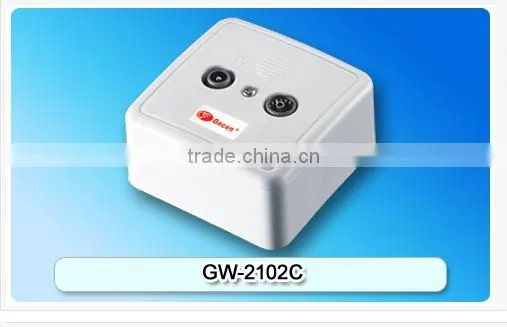

TV/FM wall socket

Product Name :TV/FM wall socket

Model :GW-2102C

Packing Information

Giftbox Size :mm

Carton Size :cm



Features:

  • Zinc die-cast housing and high-grade plastic panel
  • All ports connector, 75 Ohm
  • Connector: TV IEC 169-29.5mm plug(TC-T);FM IEC 169-29.5mm socket(TC-Z)
  • 2 output ports dedicated for TV and FM signals
  • Screenning factor: 5-450MHz≥75dB;450-2300MHz≥75dB
  • Suitable for thru type application

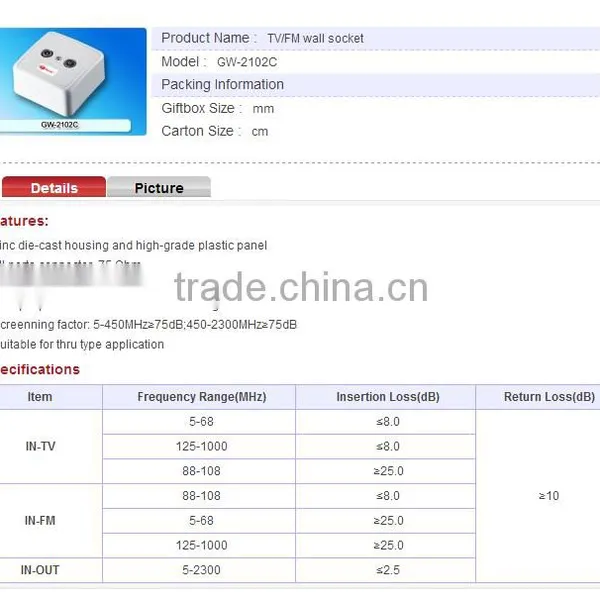

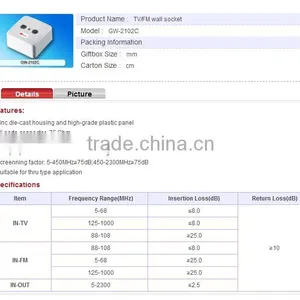

Specifications



Item



Frequency Range(MHz)

Insertion Loss(dB)

Return Loss(dB)

IN-TV

5-68

≤8.0

≥10

125-1000

≤8.0

88-108

≥25.0

IN-FM

88-108

≤8.0

5-68

≥25.0

125-1000

≥25.0

IN-OUT

5-2300

≤2.5

 TV/FM wall socket

TV/FM wall socket

TV/FM wall socket

TV/FM wall socket
