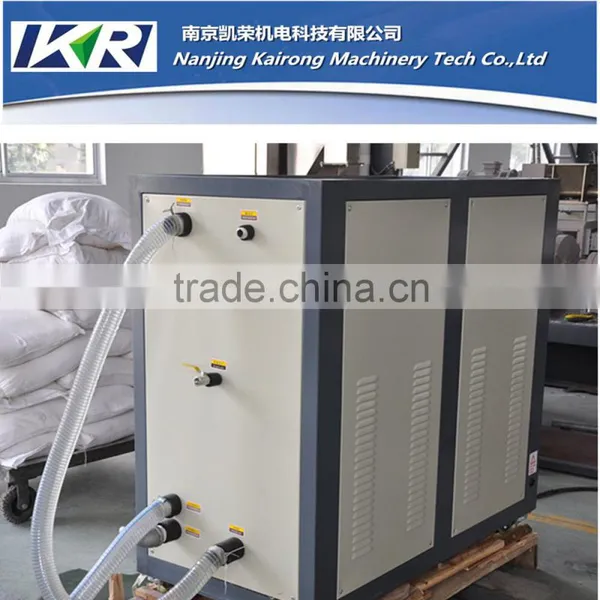

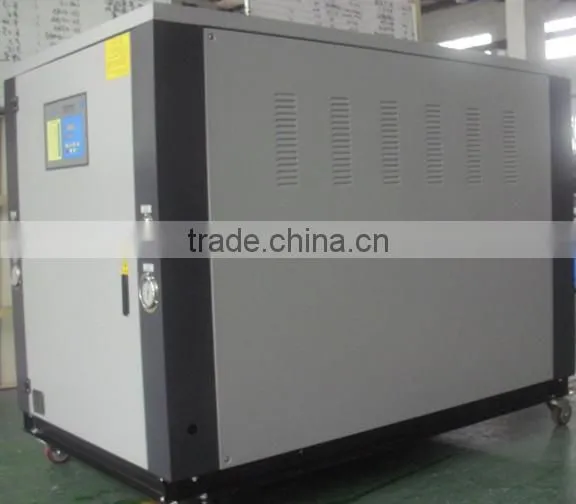

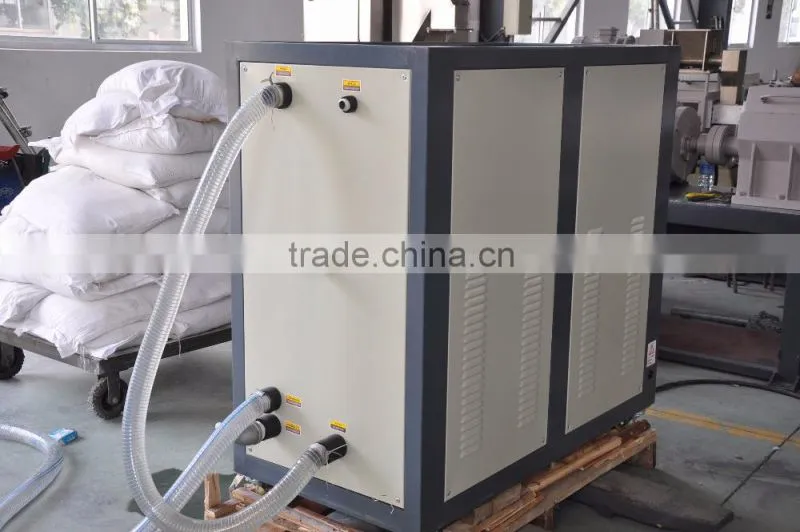

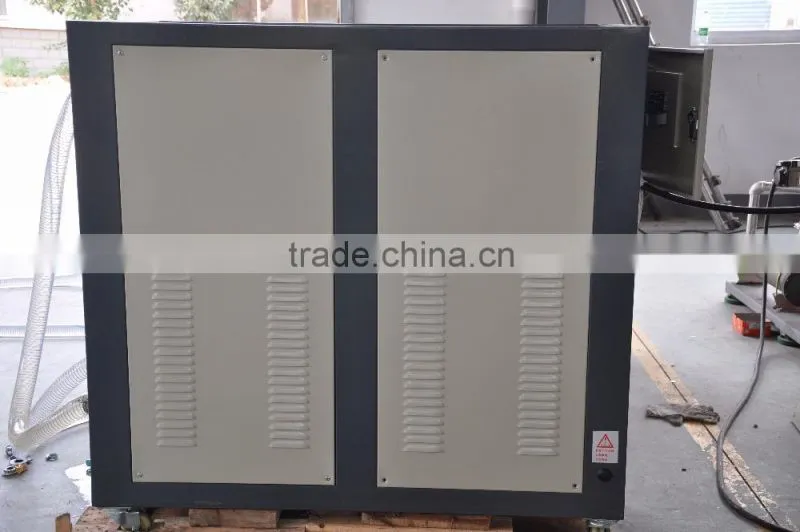

Plastic industrial heat exchanger chiller
Feature:
1he Water Chiller is to provide a cooling process for better industrial production. In plastic molding industry,it improves quality of molded products and shorten period of injection molding cycles.
1. famous brands, high efficient shell condensers and evaporators*
-- excellent cooling, quiet with low electric consumption.
2. PID Microprocessor control--easy to operate;
3. Special open type reservoir tank with stainless steel--easy to clean and maintain;
4. Well designed and reasonable Pipelines—ensures power supply and saves energy;
5. Precise electronic thermostatic controller--accurately maintains temperature range from 30C- 50C;
6. Current-overload protector, high-and-low pressure switches, electronic time delayer, fault display system--Safe and durable;
7. Liquid crystal display showing temperatures of outlet and inlet chill water--provides visualized and direct setting;
8. Single, double or quadruple compressors combination available--economic and efficient;
9. Industrially designed--elegant and economic with friendly connections between human & machine.
Technical data of water cooled chiller
Model |
UNIT |
KR-LF5A |
Controll method |
P.I.D |
|
Refrigerating Capacity |
kw |
12.9 |
Kcal/h |
11094 |
|
Compressor |
Input Power(kw) |
4.5 |
Rated Power(Hp) |
5 |
|
Evaporator |
Type |
water tank with coil |
Pipe Diameter(inch) |
1" |
|
Refrigerant |
Type |
R410a/R407c/R134a/R22 |
Filling Quantity(kg) |
2 |
|
Cooling Flow(m³/h) |
2.22 |
|
Air Cooled Condenser |
Type |
Fined copper tube+low noise rotor fan |
Fan power(w) |
135*2 |
|
Water tank capacity(L) |
60 |
|
Pump |
Power(Hp) |
0.5 |
Distance (m) |
23 |
|
Flow(L/min) |
100 |
|
Safety Protector |
high and low pressure protection, overload protection,over temperature protection ,phase sequence protection,etc. |
|
Package Dimension(L*W*H,mm) |
1280*630*1118 |
|
Voltage |
380V/50Hz/3Phase |
|
wooden case or pallet coverd by plastic film
Before-sale
- Introduce products in details
- Recommend suitbale solution
- Offer test
During manufacturing:
- Provide layout and engineering conditions
- Offer screw plan and related documents
- Inform the project processing status
- Insure the product designed in accordance with technical document
After-sale:
- Provide installation,commissiong and training
- Offer spare parts
- Provide necessary technical support and update information
Kairong group , headquartered in Nanjing, China, is a global manufacturing and trading company in the field of high-performance plastics and rubber processing equipment , extrusion solutions, masterbatch and compounding, etc. Its unit Nanjing Haisi Extrusion Company is a prefessional manufacturer of twin screw extruder, single screw extruder ,two stage extruder and its related auxiaries. We tailor solutions from raw materials, materials processing equipment, to injection for different customers. Each Kairong solution is designed , manufactured, and commissioned by experienced teams of professionals engineers and aftersales staffs.
Kairong group offers raw materials, Mixing and conveying unit, extrusion technology, recycling unit, profile extrusion etc. We offer whole plant ,even turnkey solution to meet different customers’ requirements.
Kairong Group believes that “ High quality and professional service will bring bright future “
1. Q: How can we go to your factory?
R:Our factory is located in Nanjing jiangning, Jiangsu Province, China,
1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport; about 20 mintues to our company
2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.about 8 mintues to our company
All our clients, from domestic or abroad, are warmly welcome to visit us!
2. Q: Why chose us?
R: 1)Quick reply. Once we received the inquiry from Alibaba, we will reply you within 24hours.
2)Quick manufacturing time. To guarantee the quality, the machine will be finished within 60days.
3) Before delivery, the machine will be tested to ensure every part is ok.
4) Wooden case package to ensure no damage during shipping.
3.Q:What is the payment?
R: 1) T/T payment; 2) LC;
4.How to contact me?
