Specifications
2013 hot Selling, Newest technologyQi Wireless Cellphone Charger with Power bank functions. Compatible for many phones
We are an honest supplier on Alibaba. All our items come with high quality and good after-sales service!

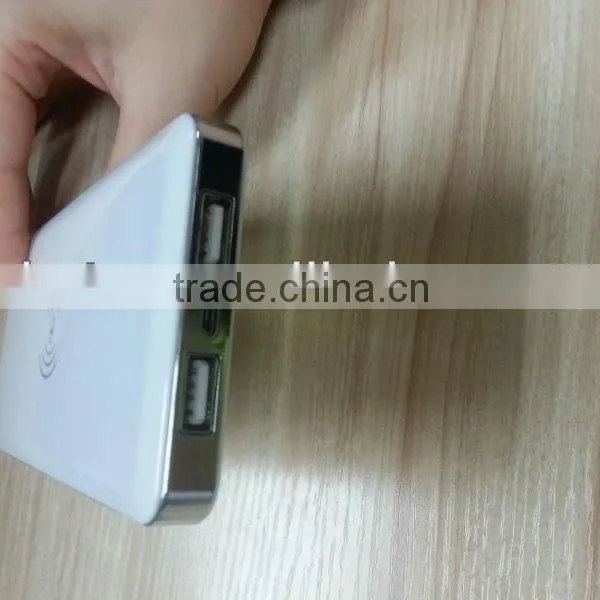

The Wireless Cellphone Charger with Power bank Function!
The Standard Version : WPC-1.1
Product application: all accord with QI standard wireless charging device
Charging type: corresponding regions of charging,also can use charging cable to connect the USB output to charge the phone
Input: AC100V-240V-DC5V1.5A
Wireless Output: 5V 1A; Charging Current:500-600mAh
USB 1 Output: 5V 1A,USB 2 Output:2.1A.
Working Life: >5000hrs
Transmission distance: 5-10mm
Battery capacity: 10000mAh
Operating frequency: 100-200KHz
Power conversion: > 55%-60%
Cell conversion: > 50%
Reaction Temperature:-10 ~ 40°C
Charging mode: Induction Charging
Dimensions: 153*73*12.5mm
Product weight: 230g
Quality certification: CE FCC ROHS
Color: White(customized colour are avilable)
Products Adventage
1. Support to charge 3 phones together.
2. unique and private shape, High-end glossy design.
3. adopt original Sunplus wireless charging solution of Taiwan and our product applies for all QI standard.
4. stable and reliable performance.( output 5V-1000mAh stable and constant,also working with no interruption and unsaturation )
5. low temperature,without the heating phenomenon when charger is working.
6. compatible with all of QI standard mobile phone.(cheap wireless charger don't have this function in the market)
Supported devices:
As of writing, this charger supports the following phones:
1. Nokia Lumia DT-900 Lumia 920 820
2. LG Nexus 4(LG Nexus 4 is a little special and its coil is below, so you need to align the phone to the top of the charger.)
3. HTC Droid DNA/HTC 8X
4. Samsung Galaxy S4 S III (Purchase of a Qi wireless receiver is required)
5. Samsung Galaxy Note II (Purchase of a Qi wireless receiver is required)
6. iPhone 4 4S (Purchase of a Qi wireless receiver is required)
7. iPhone 5 (Purchase of a Qi wireless receiver is required)
How should I go about setting up the charger?
1. Connect the power supply to the Qi inductive charger using the USB cable provided, there’s a flashing red and blue indication light from the charger. Ensure that the connectors are firmly secured.
How should do I start charging my Qi enabled devices?
1. Place your phone on the Qi inductive charger.
2. If there’s a red indication light from the charger, the phone is charging wirelessly. However, if there isn’t any blue indicator light, move your device to the center of the charger.When the phone was connected , it will make sound like Di,which means it work well.
3. Kindly note that if the distance between the phone and Qi inductive charger is more than 4cm, the phone may not charge. Should this happens, it’s advisable to remove the case on your phone to commence the charging process.
4. The Qi wireless charging technology of LG Nexus 4 is a little different than Qi standard phone.Its electromagnetic induction coil is not Independent of the circuit board of the phone, so its Induction efficiency is little weaker than other phone like Nokia Lumia 920/820,Samsung galaxy S3/Note2.
The coil of LG Nexus 4 is close to the place of Sliding tail lock ,and the coil of wireless charger pad is in the middle of charger pad as piture. So you need to align the phone to the top of the charger.
