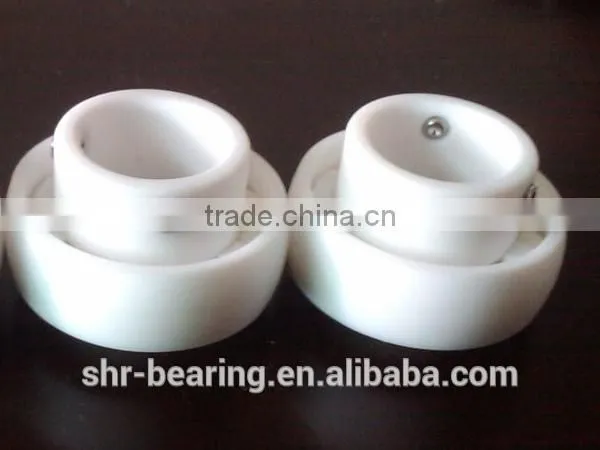

ZrO2 Ceramic spherical / insert bearing UC214CE
1,anti-corrosion long life
2,High speed, precision
3,Acid, alkali, salt corrosion
4,3% discount
ceramic insert bearings have the characteristics of anti-magnetic insulation, abrasion resistant, oil-free self-lubricating and enduring extreme high or low temperature, so they can be used for harsh environment and even under some special condition. The material of rings and roller is jargonia(ZrO2) and the holder uses poly back fluoride(PTFE) as standard configuration. Generally, we can use the reinforced nylon made of glass fiber 66(GRPA66-25),special engineering plastics(PEEK,PI),nonrust steel(AISI SUS316.SUS304), brass(Cu) and so on. ceramic deep groove ball bearings are made entirely of ceramic material and are superior to common Steel Angular Contact Bearings in many ways. Ceramic is the perfect material for any application seeking to achieve higher RPM's, reduce overall weight or for extremely harsh environments where high temperatures and corrosive substances are present.
ceramic insert bearing UC214CE specification :
| Model name : UC214CE bearing |
Brand : SHR
|
| Size : 70*125*74.6 mm |
Weight :1.68 KG
|
|
Seal : open
|
Type : insert bearing |
| Material of cage : PTFE |
Clearance : C0
|
| Precision : P6 degree |
H.S code : 69091100
|
Ceramic insert Bearing UC214 CE Benefits :
- Will not corrode or rust
- 2/3 the weight of steel
- Resistant to resist acids, alkali, blood, salt and water
- Extremely low coefficient of friction and thermal expansion
- Lower friction results in less energy consumed
- Operating Temperature from as low as (-85°C) up to (+ 900°C)
Ceramic insert bearing UC214CE model series
| model | dimension (mm) | |||||||
| d | D | B | S | C | r/min | G | ds | |
| UC201CE | 12 | 47 | 31 | 12.7 | 17 | 0.6 | 4.5 | M6 x 1 |
| UC202CE | 15 | 47 | 31 | 12.7 | 17 | 0.6 | 4.5 | M6 x 1 |
| UC203CE | 17 | 47 | 31 | 12.7 | 17 | 0.6 | 4.5 | M6 x 1 |
| UC204CE | 20 | 47 | 31 | 12.7 | 17 | 1 | 4.5 | M6 x 1 |
| UC205CE | 25 | 52 | 34.1 | 14.3 | 17V | 1 | 5 | M6 x 1 |
| UC206CE | 30 | 62 | 38.1 | 15.9 | 19 | 1 | 5 | M6 x 1 |
| UC207CE | 35 | 72 | 42.9 | 17.5 | 20 | 1.1 | 6 | M8 x 1 |
| UC208CE | 40 | 80 | 49.2 | 19 | 21 | 1.1 | 8 | M8 x 1 |
| UC209CE | 45 | 85 | 49.2 | 19 | 22 | 1.1 | 8 | M8 x 1 |
| UC210CE | 50 | 90 | 51.6 | 19 | 24 | 1.1 | 9 | M10 x 1 |
| UC211CE | 55 | 100 | 55.6 | 22.2 | 25 | 1.5 | 9 | M10 x 1 |
| UC212CE | 60 | 110 | 65.1 | 25.4 | 27 | 1.5 | 10 | M10 x 1 |
| UC213CE | 65 | 120 | 65.1 | 25.4 | 27 | 1.5 | 10 | M10 x 1 |
| UC214CE | 70 | 125 | 74.6 | 30.2 | 29 | 1.5 | 12 | M12X1.25 |
| UC215CE | 75 | 130 | 77.8 | 33.3 | 30 | 1.5 | 12 | M12X1.25 |
| UC216CE | 80 | 140 | 82.6 | 33.3 | 33 | 2 | 14 | M12X1.25 |
| UC217CE | 85 | 150 | 85.7 | 34.1 | 36 | 2 | 14 | M12X1.25 |
| UC218CE | 90 | 160 | 96 | 39.7 | 37 | 2 | 14 | M12X1.25 |
| UC220CE | 100 | 180 | 108 | 42 | 41 | 2 | 14 | M12X1.25 |

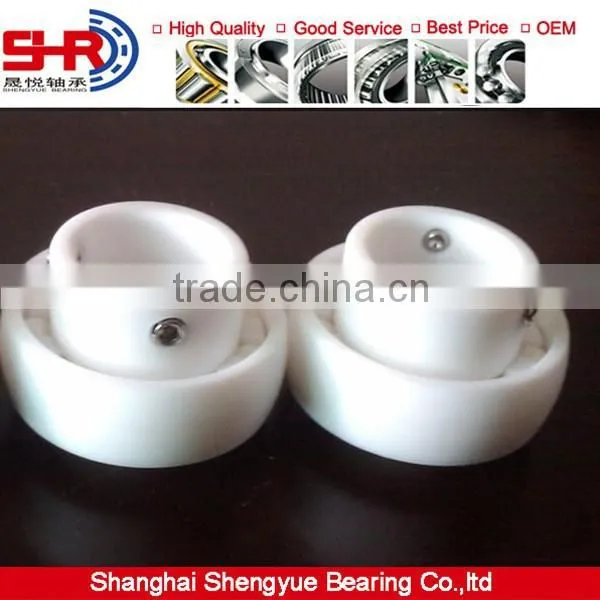

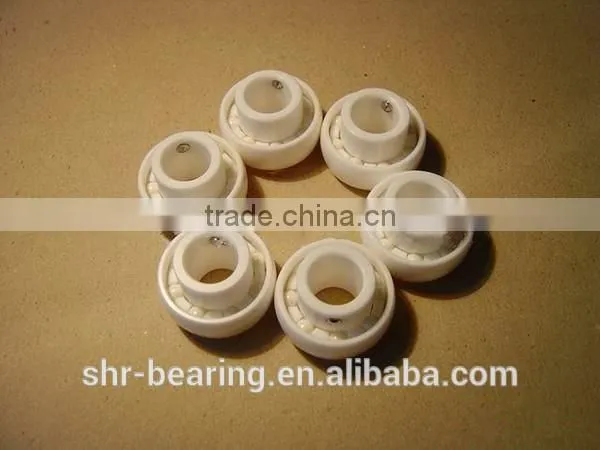

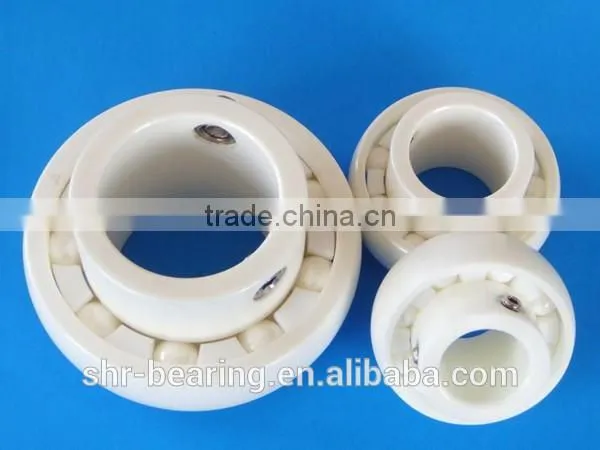

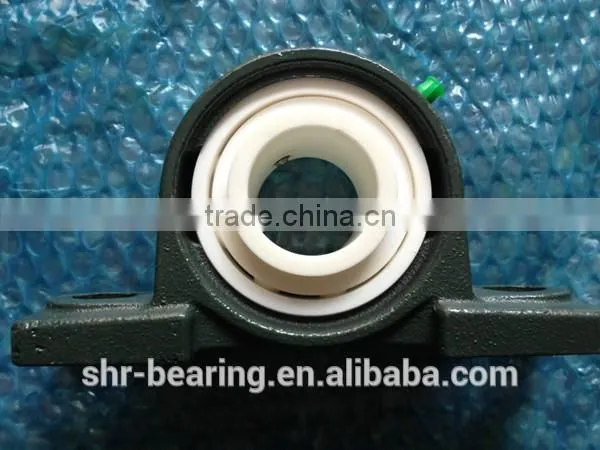

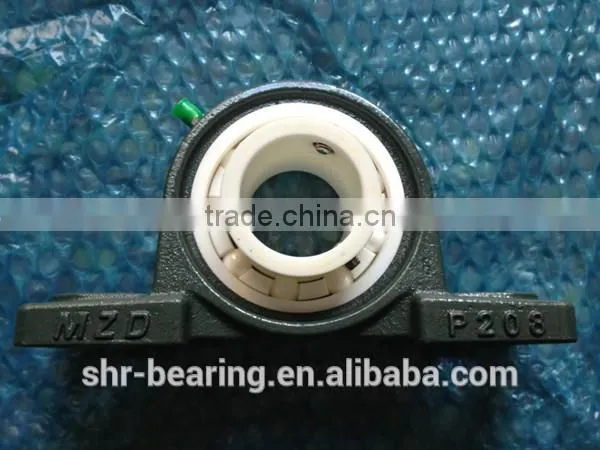

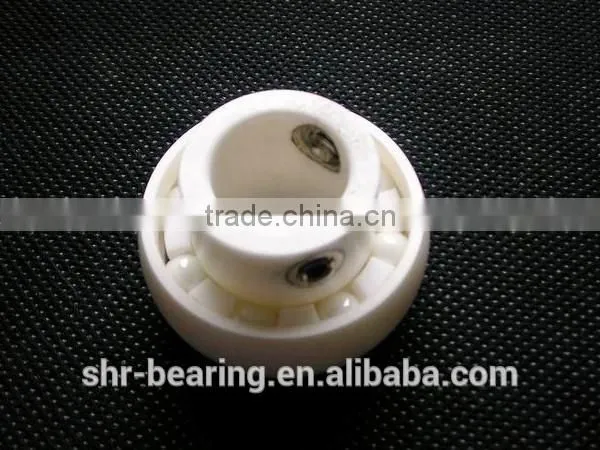

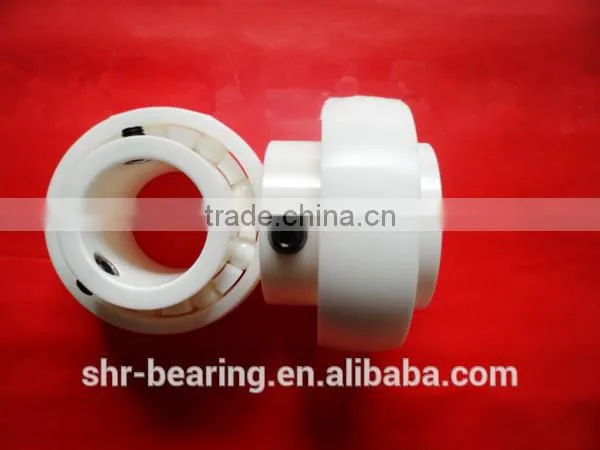

Ceramic insert bearing UC214CE pictures series :
Ceramic insert bearing features :
1)essentially increased life time
2)high stiffness because of high Young’s modulus,lower vibration
3)wear resistance and cost effective lubrication
4)electrical insulation and non-magnetism
5)high temperature resistance up to 1000oC
6)high corrosion resistance to most acids and alkalies
Comparision for ceramic bearing VS Chrome steel bearing :
| CERAMIC VS. STEEL | |||
| Item | Bearing Steel | Ceramics (SI3N4) | Characteristics of Ceramic Bearings |
| Density (g/m?) | 7.8 | 3.2 | Higher Speed Decreased centrifugal force Reduced Ball Skidding Lower Operating Temperature Less wear Less Friction |
| Heat Resistance (ºC) | 180 | 800 | Maintains stability at high temperatures |
| Coefficient of linear thermal expansion (1/ºC) | 12.5 X 10?6 | 3.2 X 10?6 | Minimal Ball Deformation Lower operating Temperature Stable Running Preload Reduced Contact Angle Change |
| Vicker's Hardness (HV) | 700~800 | 1400~1700 | Reduced Ball/Race Contact Area Minimum Ball Deformation Less Friction More Rigid Less Wear Lower Operating Temperature |
| Young's Modulus (Gpa) | 206 | 314 | |
| Poisson's Ratio | .30 | .29 | |
| Magnetism | Ferromagnetic | Non-Magnetic | Reduced Torque in Strong Magnetic Field |
| Conductivity | Conductive | Non-Conductive | No Electrical Arcing Through Balls Less Wear Reduced Race Way Pitting and Fluting |
| Corrosion Resistance | Not Good | Excellent | Less Wear Harsh Environment Durability Longer Life |
Ceramic Bearing Applications :
Full Ceramic ball bearings are used in specialty applications like chemical baths, vacuum environments, semiconductor manufacturing, food processing industries and more. Any extreme environment that requires non-corrosive, non-conductive or non-magnetic bearings is ideal for full ceramic bearings.
Our company information :
| Company name | shanghai shengyue bearing Co.,Ltd |
| Business type | manufacturer |
| Established year | 2012 |
| Business product | all kinds of bearings |
| OWN Brand | SHR |
| Export range | 81%-90% |
| OEM service | offer |
| Our advantages |
1. More than ten years bearing products exporting experiences. 2. OEM order and non-standard bearing order can be accepted. 3. Many sizes of bearing are available. Large quantity bearing can be provided. 4. To respect customers, you can choose the loading port. 5. A certain number of free sample can be provide to support our customer's after-sale services and warranty. |
Trading information :
| Price terms | EXW FOB CNF CFR, CIF |
| Payment terms | L/C ,T/T ,Western Union, Paypal |
| Express way | DHL FEDEX TNT UPS |
| Shipping port | shanghai ,qingdao ,nongbo, guangzhou |
| Packing |
1.Industrial packaging: plastic bag + kraft paper + carton + plywood pallets; plastic tube + carton + plywood pallets; 2. Commercial packing: 1pc/plastic bag + color box + carton + plywood pallets |
