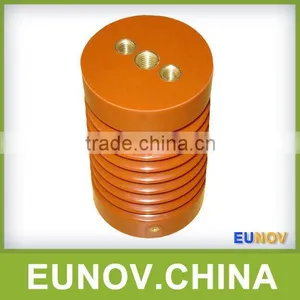

Help CenterAPG Casting Way 12kv CG2 Epoxy Casting Insulator With Epoxy Resin Insulator
Related Products
-
China Company Supply 33-45.5kv Epoxy Capacitive InsulatorUS$ 3 - 35MOQ: 10 Pieces -
China Manufacturer Quality Primacy Electric Fence Epoxy Resin InsulatorUS$ 3 - 30MOQ: 10 Pieces
-
China Supply Quality Primacy Epoxy Resin 10kv Capacitive InsulatorUS$ 3 - 30MOQ: 5 Pieces
-
Best Quality Epoxy Resin 24kv Capacitive InsulatorUS$ 3 - 30MOQ: 10 Pieces
-
Supply Epoxy Resin Capacitive Insulator For High VoltageUS$ 3 - 30MOQ: 10 Pieces
1. Adopts epoxy resin automatic pressure gel craft that be APG craft manufacture, Product beautiful, Machine, Electrical performance fit.
2. Adopts high toughness epoxy resin manufacture, Machine capability excellent. And adopts low reaction activity recipe system, Material solidifies slow, Product body stress low reaction activity recipe system, Material solidifies slow, Product body stress low, Maximum field enhances product's machine capability.
3. Adds activated silica slight powder, Furthurs enhance epoxy resin's machine capability, Much ensures insulate long-term keep good electric insulate performance under wet work environment.
4. Adds organic color, Product color and lustre bright, Does not reduce product's insulate performance.
| Type(insulator) | CG2 | CG-40.5 | CG3-24 | CG-175 | CG3-130 |
| Rated voltage(KV) | 12 |
33-40.5 | 24 | 10-17.5 | 12 |
| Creepage distance(MM) | 240 |
860 | 375-390 | 250 | 240 |
| Power frequency withstand voltage(KV/MIN) | 42 |
95 | 60 | 42 | 42 |
| Partial discharge(PC) | <10 | <10 | <10 | <10 | <10 |
| Lighting impulse withstand voltage(KV) | 75 |
200 | 125 | 75 | 75 |
| Bending strength(KN) | >10 | >10 | >2 | >4 | >10 |
| Capacitance(PF) | 120 | 10 or 40 | 60 | 60 | 120 |

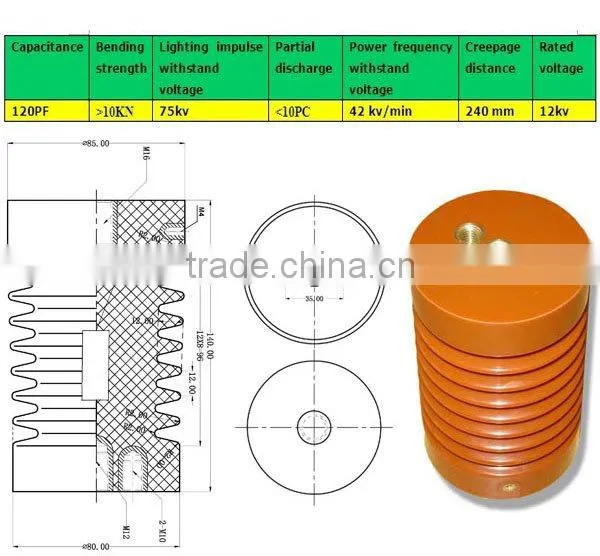

| Drawing pic : | |
|
|
