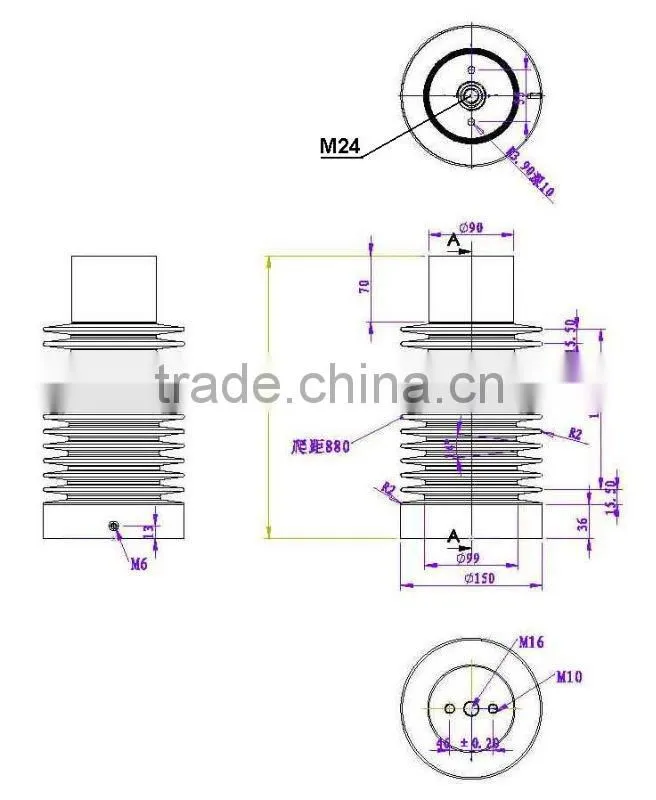

Type: CG-40.5-2 Capacitive Insulator
Rated voltage: 33—40.5kv
Creepage distance: > 840mm
Power frequency withstand voltage: 95kv/min
Partial discharge: < 10 PC
Lighting impulse withstand voltage: 200kv
Bending strength: > 10KN
Capacitance = 10 PF or 40PF
Our Advantages
1. Adopts epoxy resin automatic pressure gel craft that be APG craft manufacture, Product beautiful, Machine, Electrical performance fit.
2. Adopts high toughness epoxy resin manufacture, Machine capability excellent. And adopts low reaction activity recipe system, Material solidifies slow, Product body stress low reaction activity recipe system, Material solidifies slow, Product body stress low, Maximum field enhances product's machine capability.
3. Adds activated silica slight powder, Furthurs enhance epoxy resin's machine capability, Much ensures insulate long-term keep good electric insulate performance under wet work environment.
4. Adds organic color, Product color and lustre bright, Does not reduce product's insulate performance.
