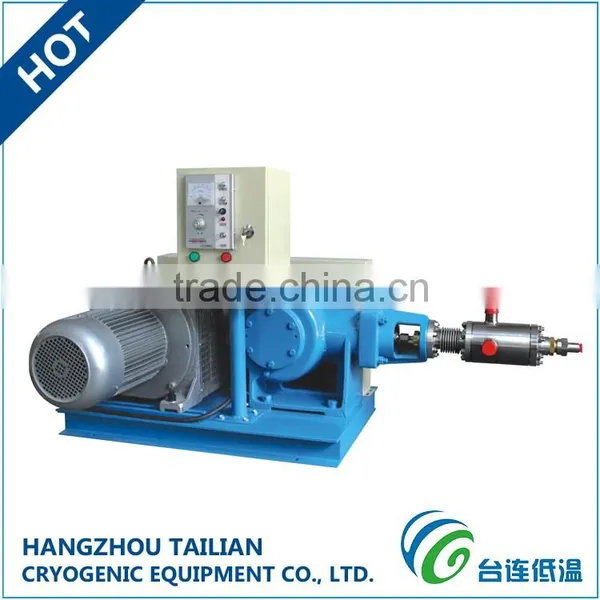

High Pressure Non-Standard Cryogenic Carbon Dioxide Liquid Pump

Name: High Pressure Non-Standard Cryogenic Carbon Dioxide Liquid Pump
Brand: Tailian
SKU: 108634265

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Tailian

Model Number:

BPLNG

Hangzhou Tailian Cryogenic Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Tailian

Model Number BPLNG

Theory Reciprocating Pump

Structure Piston Pump

Usage Other, LNG

Power Other, Depends on flow rate and pressure

Standard or Nonstandard Nonstandard

Fuel Gasoline

Pressure High Pressure

Application Cryogenic

Place of Origin:	Zhejiang, China	Brand Name:	Tailian	Model Number:	BPLNG
Theory:	Reciprocating Pump	Structure:	Piston Pump	Usage:	LNG
Power:	Depends on flow rate and pressure	Standard or Nonstandard:	Non-Standard	Fuel:
Pressure:	High Pressure	Application:	Cryogenic	Material:	Cast Iron
Color:	Customized	Name:	Liquid Nature Gas High Pressure Pump	Motor:	Electric motor (EX)
Flow Rate:	15 to 1500 L/H	Feature:	High Efficiency	Certificate:	ISO9001
Impeller:	Screw Centrifugal	Type:	Single cylinder	Weight:	300kgs more or less

Terms	Technical Details
Type	Horizontal, Piston Pump, Fixed-speed Flow Rate
Qty of Cold End	Two
Design Temperature	-196 Degree Celsius
Medium	L-CNG
Inlet Pressure	0.02~0.8 MPa
Outlet Pressure	20~70MPa
Max Working Pressure	30 MPa
Flow Rate	500~5000L/H
Motor	380V 50HZ 22~37KW EX-PROOF
Working Limit	At intervals / 24 Hours
Gross Weight	800 KG
Wear-parts Lifespan	3000 Hours
