Vertical Horizontal Drilling Milling Machine ZX6350 Factory Direct Sales

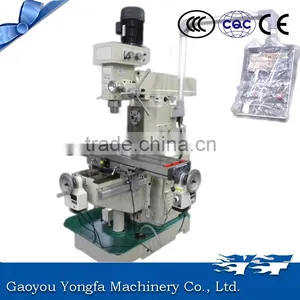

Vertical Horizontal Drilling Milling Machine ZX6350 Factory Direct Sales thumbnail-1
Vertical Horizontal Drilling Milling Machine ZX6350 Factory Direct Sales photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
Yong Fa
Contact Supplier Request Quote Chat Now
Gaoyou Yongfa Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name Yong Fa
Model Number ZX6350
Type Universal
CNC or Not Normal
Voltage Customer Requirement
Power(W) 2.2 kw
Dimension(L*W*H) 1580x1450x2150 mm
Weight 1300 kgs
Certification ISO9001:2008
Warranty 1 Year
After-sales Service Provided No overseas service provided
Product Description

This milling machine has a vertical and horizontal spindle that are designed to remove material from a metal workpiece secured to the work table or a mill vise. The cutting tool is fixed to the rotating spindle and the workpiece is moved into the cutting tool by loweing the spindle or moving the table.

Spindle downfeed options are rapid (coarse) control or slow(fine) control with adjustable auto-downfeed controls.

The wide range of cutting tools and optional avaiable equipment combined with the flexible features of this milling machine makes countless metalworking operations possible.

Technical Parameter
Model
ZX6350
Max.drilling dia.
50 mm(Iron)
Max.end milling capacity
25 mm(Iron)
Spindle taper
R8 / ISO30 / ISO40
Spindle speed number
8 (V) / 9 (H)
Spindle speed range(50/60Hz)
90-2000/108-2400(V)         40-1300/48-1560(H)
Distance between vertical spindle and surface of colum
200-550
Distance between vertical spindle and surface of table
60-420
Distance between horizontal spindle and surface of table
0-360(H)
Vertical spindle travel
120(V)
Table size
1120x280    /    1270x280
Table travel
600x230     /     750x230
Motor
YD100L1-4 2.2KW(V)           /               y100L-4 2.2KW(H)
Overall size
1580x1450x2150
N.W
1300kg
Feature

recycling coolant system

Longitudinal power feed

high-precision spindle

two-speed motor

work light

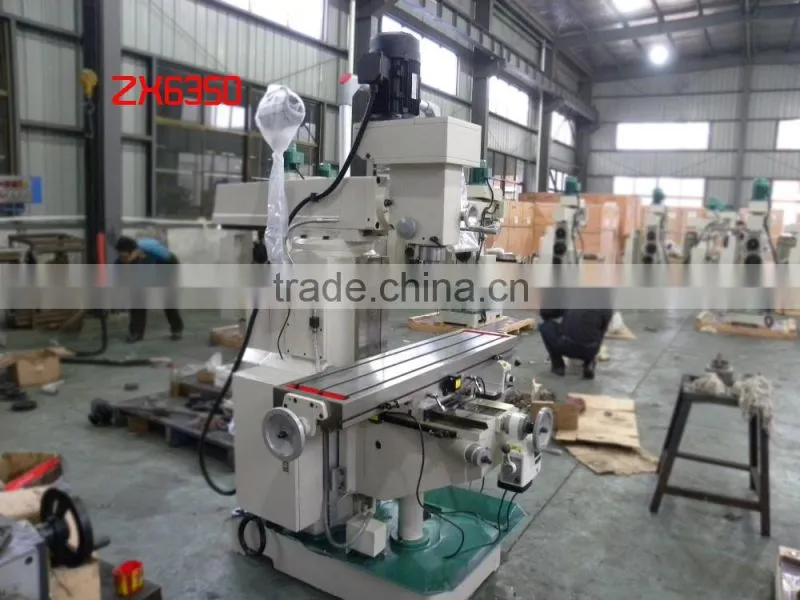

Product Photo
Company profile

Gaoyou Yongfa Machinery Co., Ltd. is located in the ancient town of Gaoyou City Industrial Park, the plant is favorable geographical position. The company covers an area of over 30,000 square meters, construction area of over 20,000 square meters. More than 380 employees, including more than 50 senior engineers and technicians, with turning, milling, grinding and other metal cutting machinery, testing and other equipment more than 250 sets, and supporting a heat treatment equipment. The main products are bench lathe, milling machine series, machine parts and accessories, power tools and related parts. Products are exported to Europe and America over 50 countries and regions, favored by the users.

Certifications

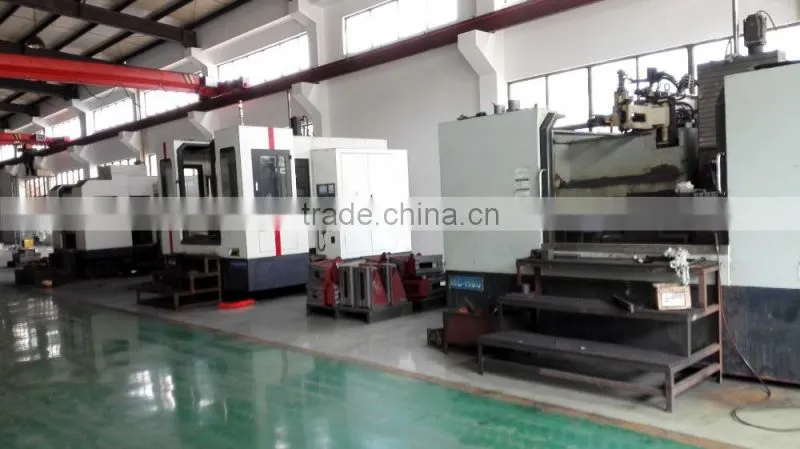

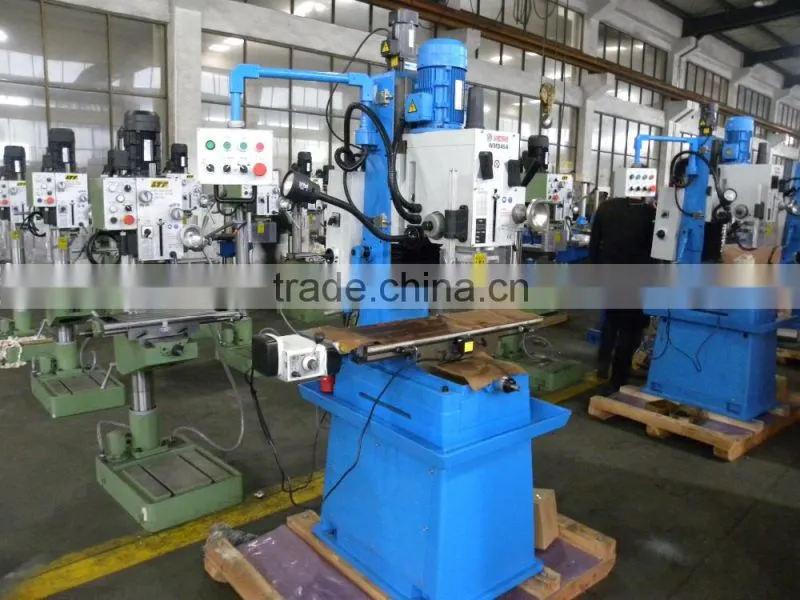

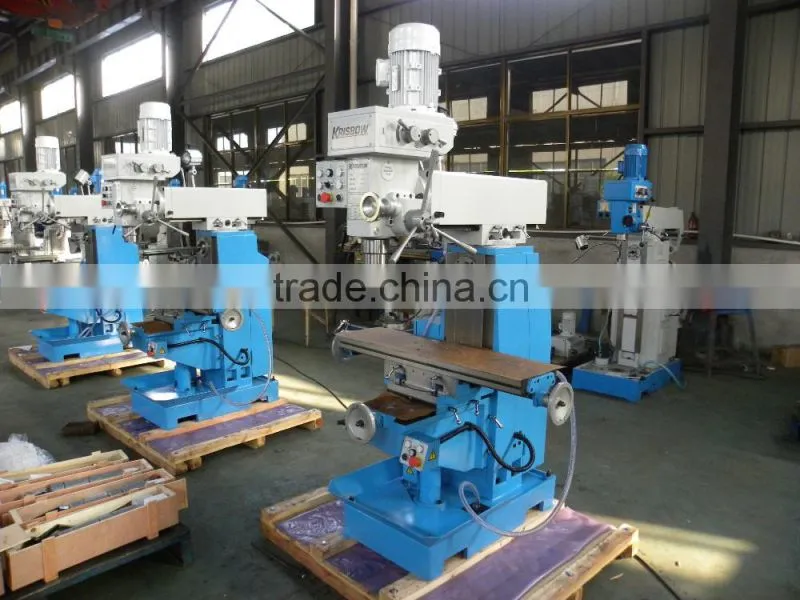

Workshop & Equipment
