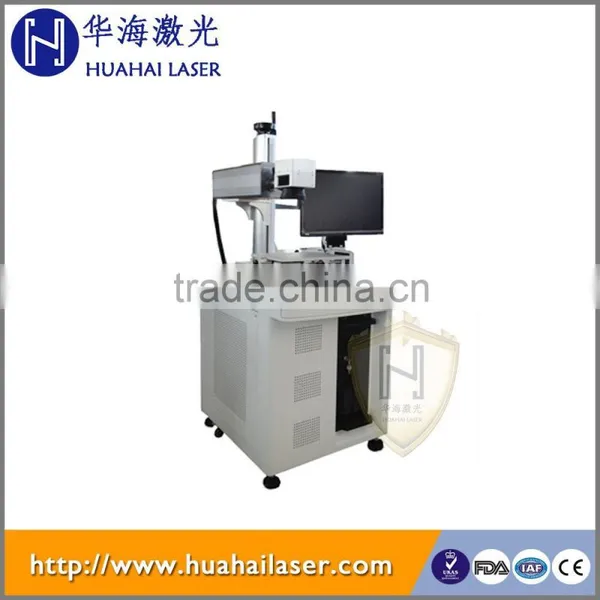

10W 20W 30W 50W IPG Portable Fiber Laser Marking Machine for metal/plastic/stainless steel/jewelry
- Mark Permanence& Awesome Performance
- Graphic Flexibility
- Process Repeatability
- High Resolution
- Environmentally Friendly
- Superior quality and accuracy
- Material flexibility
It is mainly applied to the higher marking precision such as
mobile phones buttons, plastic translucent keys, electronic components,
integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools,
accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils,
stainless steel products, etc.
LASER MARKING MACHINE CONFIGURATION:
Fiber Laser |
Germany IPG/China Raycus |
Scanner Head |
Germany scanlab/USA CTI/China made |
Card and Software |
Germany SAMLIGHT/China made |
Computer System |
19inch LCD |
LASER MARKING MACHINE FEATURES:
Compact design, easy to move equipment, air-cooling, compact machine, output beam quality,
high reliability, no consumables, maintenance-free. Long life working time over100, 000 hours long life span.
Import Germany IPG fiber laser, the international latest, most reliable structure, small size,
power consumption is small, no high-voltage without large water-cooled system. Close to the ideal beam,
USB interface, output control, optical scanning system, laser repetition rate high, high-speed without distortion.
LASER MARKING MACHINE PARAMETERS:
Type |
HM10F |
HM20F |
HM30F |
HM50F |
HM100F |
||||
Power |
10/W/20W/30W(regular),customer power allowed 50W/100W |
||||||||
Laser Wavelength |
1064nm |
||||||||
Marking Area |
110mm*110mm |
||||||||
Optional Marking Area |
70mm*70mm / 175mm*175mm |
||||||||
Marking Depth |
≤1.2mm |
||||||||
Marking Speed |
7000mm/s,800 standard characters/second |
||||||||
Minimum Line Width |
0.01mm |
||||||||
Minimum Character |
0.15mm |
||||||||
Repeated Precision |
±0.003mm |
||||||||
Fiber Laser Source |
CHINA/GERMANY |
||||||||
Scan head |
CHINA/GERMANY |
||||||||
Controller |
CHINA/GERMANY |
||||||||
Life-span of Fiber Laser Module |
100 000hours |
||||||||
Beam Quality |
M2 <1.5 |
||||||||
Focus Spot Diameter |
<0.01mm |
||||||||
Output Power of Laser |
10%~100% continuously to be adjusted |
||||||||
Output Frequency of Laser |
20KHz~100KHz continuously to be adjusted |
||||||||
Power Stability (8h) |
<±1%rms |
||||||||
Marking Type |
Dynamic Mark / Static Mark |
||||||||
System Operation Environment |
Windows 7--32bits / Windows XP / 2000 / Windows 7--64bits (Not recommended) |
||||||||
Cooling |
Air cooling |
||||||||
Temperature of Operation Environment |
15°C~35°C |
||||||||
Voltage |
220V / 50HZ / single phase |
||||||||
Power Requirement |
120W |
200W |
250W |
300W |
500W |
||||
Computer Requested |
There will be one PC with the machine |
||||||||
Communication Interface |
USB |
||||||||
Dimension (L*W*H) |
800mm×680mm×1200mm or 1150mm*680mm*1300mm |
||||||||
Package Size |
900mm*1000mm*1500mm |
||||||||
Net Weight |
140KG |
||||||||
Gross Weight |
180KG |
||||||||
Optional (Not free of charge) |
Rotary Device, Moving Table, other Automatic Matching System |
||||||||
LASER MARKING MACHINE OVERVIEWS:
HUAHAI LASER MACHINE VIDEO ON YOUTUBE
Marking on metal/stainless steel |
/watch?v=bH6HhjWCSTM |
Marking on bird ring |
/watch?v=pArcRjDMmLw&feature=youtu.be |
Marking on ear tag |
https:///watch?v=-KZ2FXHxjIU&feature=youtu.be |
Bar code marking |
/watch?v=60aGwcq2YrM |
QR code marking |
/watch?v=17DBl_JWDa4 |
Enclose type machine working |
/watch?v=O3zIe5tl-2I&feature=youtu.be |
LASER MARKING MACHINE SAMPLES:
Various fiber laser marking machine models are available for
different applications:
Standardization of Service “212" |
|
Installation Service |
|
Installation Services are available with all HUAHAI LASER machines. We dispatch technician to customer's factory for installation and preoperation of machines. |
Training Service |
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn to operate machine. |
Quality Guarantee |
|
Wuhan Huahai Century Laser Co., Ltd is a high-tech enterprise engaging in the development and manufacture
of gas laser and solid laser. It is located in Wuhan Optical Valley of China.
With a group of high quality technical experts and personnel and backed by the environment of the favorable
policies and many universities in Wuhan, Huahai explores actively,
and is keen on forging ahead and constant innovation.
Warranty:
a. Each machine in the detection process will pass through a specialized 24 hours continuous working
testing for equipment and facilities before machine out of the factory.
b. All of Huahai laser machine out from our factory enjoy 2 year quality Warranty
from the time customer receive machine. Huahai Laser Company
will built life-long correspondence files for you.
After-sales Service:
1. User-friendly English manual and video CD for laser engraving machine using and maintaining
2. My company English software can do all kinds of pattern recognition,
software upgrading and updating free
3. We always offer you our best service no matter when and where.
