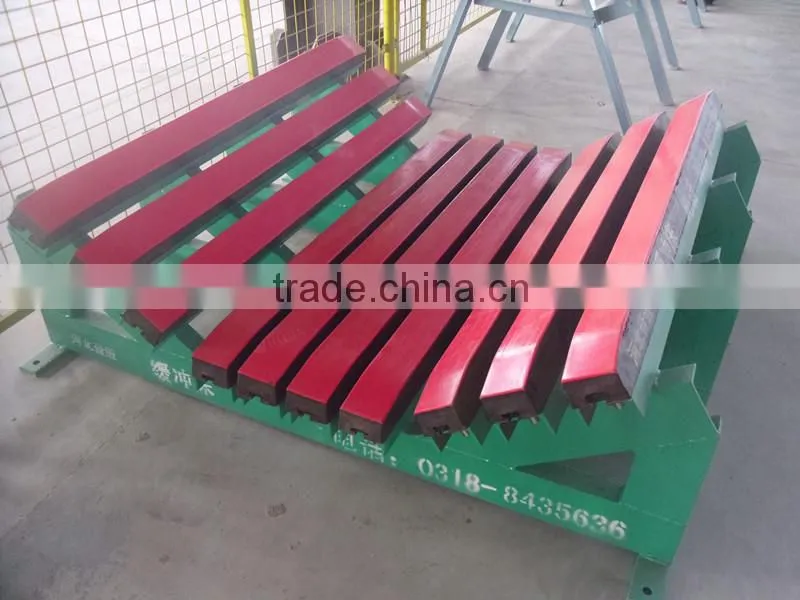

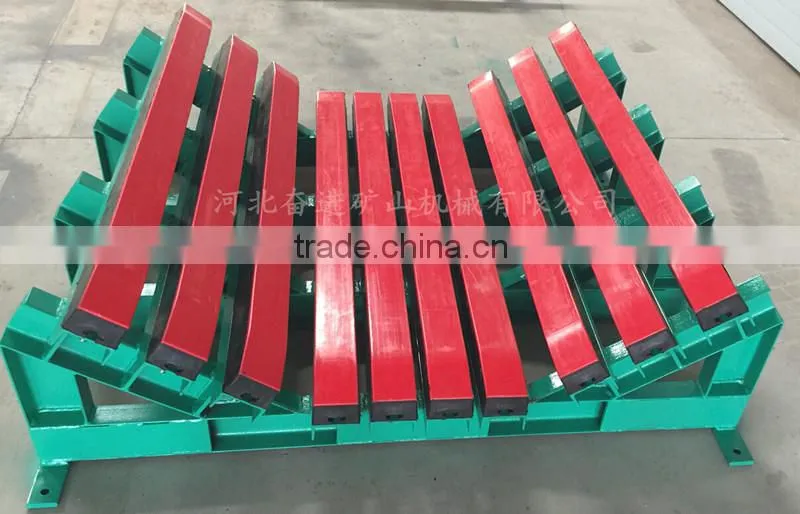

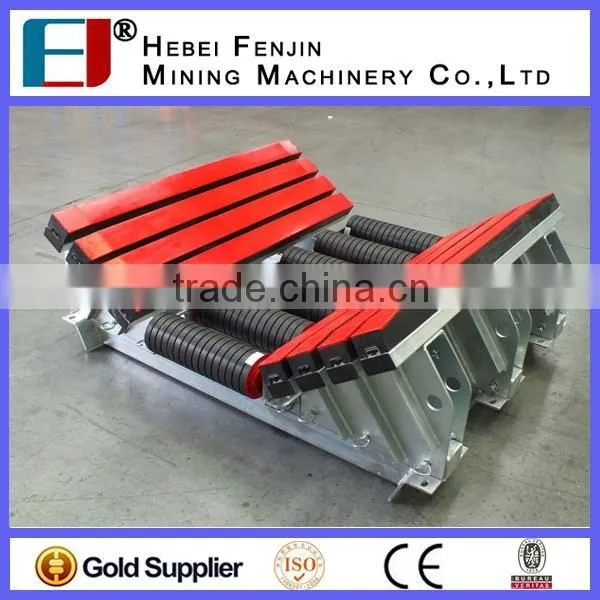

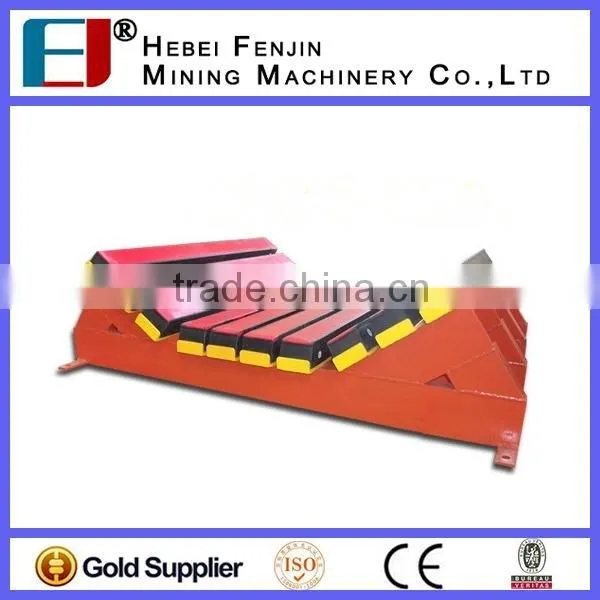

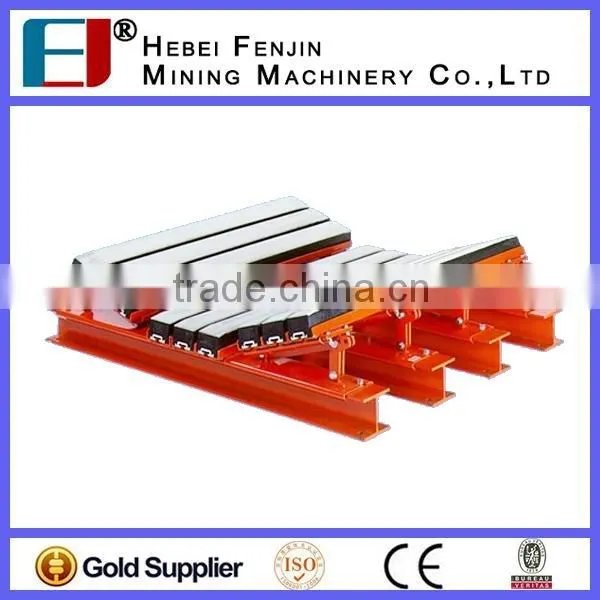

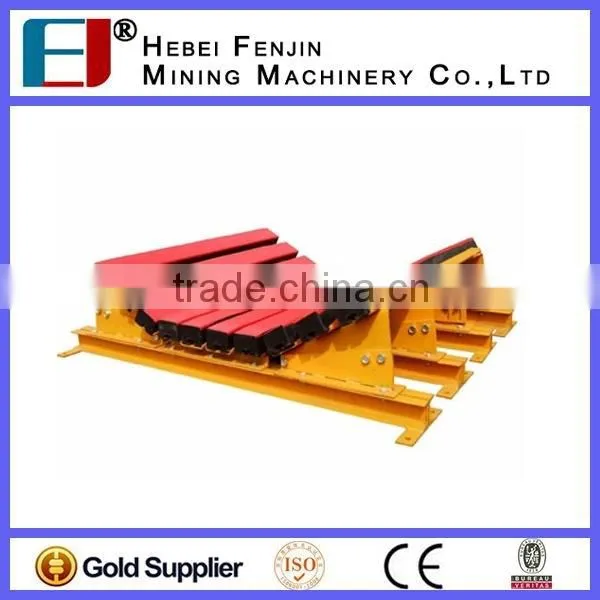

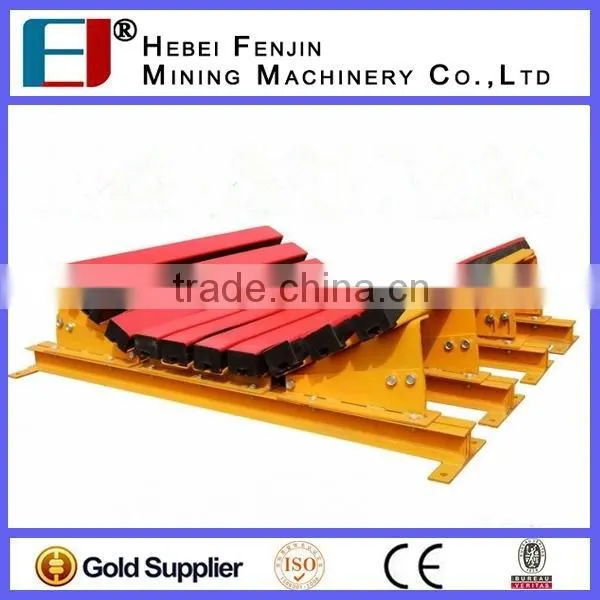

Belt Conveyor Impact Bed/Buffering Bed/Impact Station/Impact Cradle For Mining Industry
Impact Bed / Stations Introduction
Impact bed is used on the feed point in replacement of buffer rollers to reduce the impact force from material on rubber belt and possibility of damage ; protect rubber belt from being torn apart or scratched by sharp objects ; prevent material from spilling.
Technical Parameter of Impact Bed / Stations

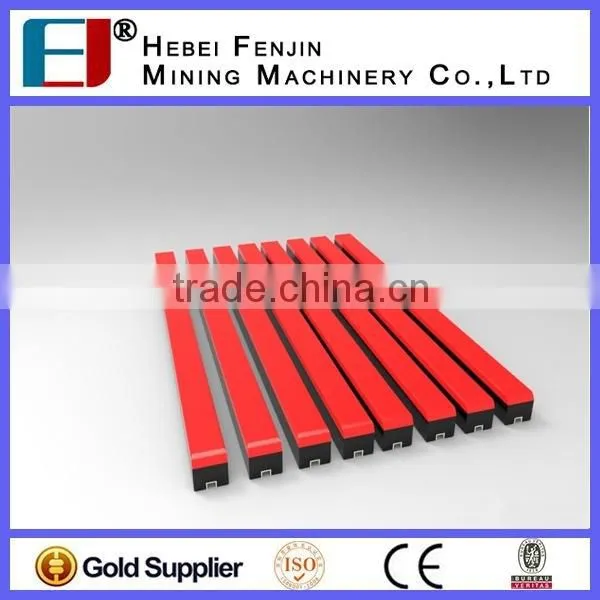

1).Material of surface of impact bar: UHMW
---Tensile strength: >25N/mm2
---Elongation:> 350%
---Impact strength: >15kJ/m2
---Speeling stength:
UHMW and Rubber>200N/cm
Rubber and aluminum frame >200N/cm
2).Impact rubber of impact bar
---Tensile strength:> 15N/mm2
---Elongation:> 400%
---Hardness:Shore A 45~55
3.Framework of impact bar: Aluminum
4.Standard legnth of impact bar:L1=1220mm L2=1400mm
5.We can do according to customer's requirments
Advantages of using the Impact Beds / Stations
- The impact station is used to absorb any impact caused by large product that could damage the belt at the point of loading.
- The sides of the bed are adjustable which can be used for dust suppression and to control spillage.
Impact Bed /Stations Applications
---Cement Industry
---Chemical Industry
---Coal Industry
---Salt Industry
---Ceramic Industry
---Sugar Industry
---Paper and Pulp Industry
---Iron and Steel Industry
---Pharmaceuticals Industry
---Textile Industry
---Leather and Plastic Industry
---Food Processing Industry
Fenjin Roller, Service to Every Industry
1 |
Standard Steel Roller |
2 |
Carrier Roller |
3 |
Impact Roller |
4 |
Rubber Coated Roller |
5 |
Friction Roller |
6 |
Friction Roller With two heads |
7 |
Return Spiral Roller |
8 |
Tapered Roller |
9 |
Stainless Conveyor Roller |
10 |
Impact Bed |
11 |
Nylon Roller |
12 |
UHMWPE Roller |
13 |
Ceramic Roller |
14 |
Belt Cleaner |
15 |
Suspension Roller |
16 |
HDPE Roller |
1 We are a professional manufacturer , provide you the competitive factory price.
2 Various style of roller products for you choose, like trough roller, impact roller, taper roller etc.
3 We ensure the deliver time and the high quality for you, and the best after-sale service.
4 Any problem, no matter big or small, we will do our best to solve it with you, made you satisfied.
5 We have the international leading full automatic flexible roller assembly production line, the annual production capacity is more than 700,000 pieces.
Fenjin unique full-automatic roller production line represents the international most advanced roller
manufacturing level, mainly including shaft, roller processing, welding, assembly line, spraying, dry production line. High machining accuracy, uniform and stable quality, which can realize continuous
and efficient professional production, every 27 to 37 seconds to produce a roller, roller diameter from 89 mm to 89 mm, length can up to 2600 mm.
The roller has achieved automatic production line with high efficiency and high quality production an satisfy the needs of users by the large.
1 What is the business of your company?
Hebei Fenjin Mining Machinery Co., Ltd is specialized in designing and manufacturing conveying
machinery, conveyor rollers, conveyor pulley, impact idler, nylon roller, aligning roller, friction
roller, taper idler, flat roller, return roller, spiral roller, belt cleaner, conveyor idler bracket
2 What is the advantages compared to other suppliers?
Fenjin has the unique full automatic roller production line, high machining accuracy, uniform and
stable quality, which can realize continuous and efficient professional production, so Fenjin can
provide good quality product and service to our customers.
3 Can we visit your company?
No problem, we are a professional manufacturer, look forward to your arrival and we will lead
you to visit our factory.
4 What is the lead time?
In general, mass production needs 15-30 days, also according to the order volume.
5 Can you accept mixed batch of different products?
Yes, we support different product mix wholesale, no limit of raw materials and mechanical parts, and color specifications, etc
6 How about the packing ?
We can provide wooden packing, plywood board packing, 20 feet container, 40 feet container
