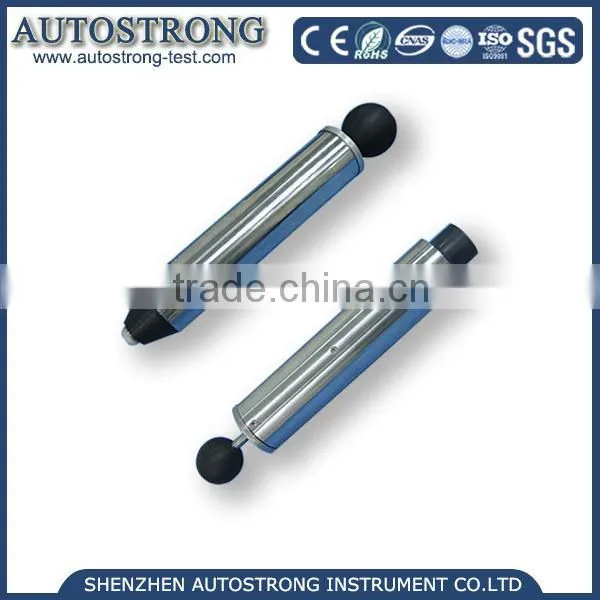

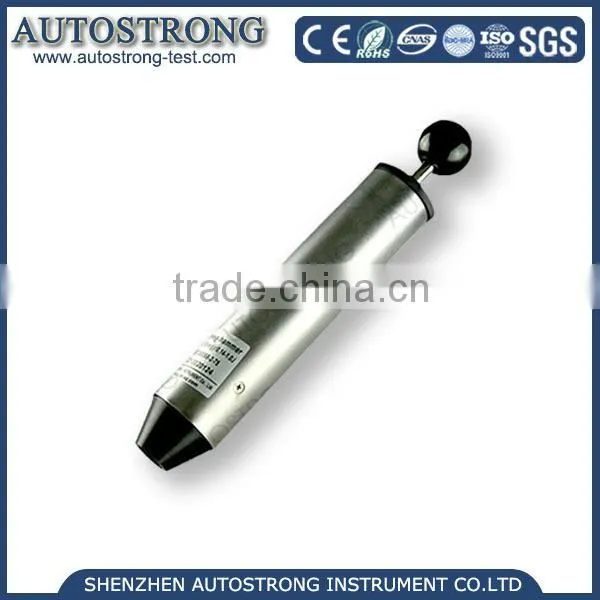

IEC60068 Electric Impact Hammer (IEC 60068-2-75)
(1) IEC60068-2-75 Spring Impact Hammer is strictly designed according to IEC60068-2-75,GB/2423.55-2006.GB4706.1 and GB8898 standard.
(2)After applying the impact with the hammer, the products is examined with accessibility probes to determine access to chock, energy,and injury hazards. Built in exact accordance to IEC/EN/UL/CSA and other standards.
Application:
Adjust the impact severity by rotating the knurled cap until the desired energy-value is displayed. Pull the knob slowly out of the device until it locks in place. If moved too fast, the clamp may skip its arrester and will lock at its way back when the pulling force declines. Hold the device horizontally at it’s housing tube and press the (black) release cone to the specimens plane of impact. The strike is automatically released when the release force threshold is reached
Types:
|
Spring Operated Impact Hammer |
Energy |
Tolerance Mistake |
0.14J |
±0.014J |
|
0.20J |
±0.02J |
|
0.35J |
±0.03J |
|
0.50J |
±0.04J |
|
0.70J |
±0.05J |
|
1.00J |
±0.05J |
|
2.00J |
±0.10J |
Length:211mm;Weight:1250g;
OD:50 mm;Hammer
Weight:60g;
Hammer radius:10mm ;
Impact Components:
including the hit ball handle the hammer,
weight 250g,
hammer head is made from white polyethylene imine first
The release force of impact :<10N.
