1,INOCO YNTSH-SGA-A series Compressed air filter
Description >>
1 Extension current route to slow pressure drop
2 High grade aluminium-silicon and carbon-steel cartridge
3 Painted surface with epoxy resin for wear resistance and corrosion resistance
4 Screw threads structure at inlet and outlet for easy installation with air flow indication on the cartridge
5 Compact design for flexible troubleshooting
6 Exact pressure indicator to secure element replacement
7 Level indicator to monitor critical level for down stream pollution prevention
8 Reliable automatic drain

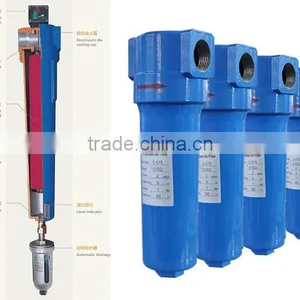

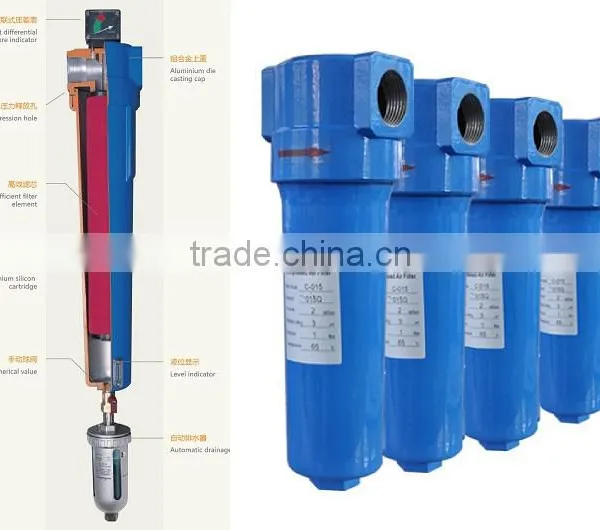

Assembly part >>
Linked direct differential pressure indicator
Aluminium die casting cap
Decompression hole
High efficient filter element
Aluminium silicon cartridge
Level indicator
Manual spherical ball valve
Automatic drain
INOCO YNTSH-SGA-A series Compressed air filter Specification
INOCO YNTSH-SGA-A series Compressed air filter Product show
2,INOCO-SGA-D series high pressure filter
Description >>
The working pressure range of SGA-D series high pressure filter is 25-400 bar, and it is the most security and reliability record range. Compared with other products in filter industry, HS series high pressure filter provides considerable technical and economic advantages for high pressure operation system.
Material >>
Top shell: CS(optional 16 MnR III), SS(316 III)
Bottom shell: CS(optional 16 MnR III), SS(316 III)
Sealing: fluorine rubber
Connection: flange, thread, butt welding
Filter element >>
Polyester filter element, glass fiber filter element
Washable Stainless steel filter element
Filtration precision: 0.003 micron to 10 micron
High pressure filter Specification
| Filter model | Max flow rate m3/min @7bar |
Max working pressure barg | Installation specification mm | |||||||
| A | B | C | D | E | F | G | H | |||
| SGD-D-30 | 30 | 64 | 165 | 85 | R1/4" | 145 | 130 | 90 | 50 | 4 x M8 |
| D-60 | 60 | 64 | 165 | 85 | R3/8" | 145 | 130 | 90 | 50 | 4 x M8 |
| D-120 | 120 | 64 | 205 | 105 | R1/2" | 185 | 190 | 110 | 50 | 4 x M8 |
| D-180 | 180 | 64 | 230 | 105 | R3/4" | 205 | 190 | 110 | 50 | 4 x M8 |
| D-270 | 270 | 64 | 235 | 119 | R1" | 210 | 190 | 130 | 70 | 4 x M10 |
| D-360 | 360 | 64 | 290 | 119 | R1 1/4" | 255 | 250 | 130 | 70 | 4 x M10 |
| D-480 | 480 | 64 | 315 | 150 | R1 1/2" | 280 | 250 | 160 | 80 | 4 x M10 |
| D-720 | 720 | 64 | 405 | 186 | R2" | 365 | 340 | 200 | 110 | 4 x M10 |
| Filter model | Max flow rate m3/min @7bar |
Max working pressure barg | Installation specification mm | |||||||
| A | B | C | D | E | F | G | H | |||
| SGD-D-30 | 30 | 64 | 165 | 85 | R1/4" | 145 | 130 | 90 | 50 | 4 x M8 |
| D-60 | 60 | 64 | 165 | 85 | R3/8" | 145 | 130 | 90 | 50 | 4 x M8 |
| D-120 | 120 | 64 | 205 | 105 | R1/2" | 185 | 190 | 110 | 50 | 4 x M8 |
| D-180 | 180 | 64 | 230 | 105 | R3/4" | 205 | 190 | 110 | 50 | 4 x M8 |
| D-270 | 270 | 64 | 235 | 119 | R1" | 210 | 190 | 130 | 70 | 4 x M10 |
| D-360 | 360 | 64 | 290 | 119 | R1 1/4" | 255 | 250 | 130 | 70 | 4 x M10 |
| D-480 | 480 | 64 | 315 | 150 | R1 1/2" | 280 | 250 | 160 | 80 | 4 x M10 |
| D-720 | 720 | 64 | 405 | 186 | R2" | 365 | 340 | 200 | 110 | 4 x M10 |
Gas filter separator Product show
INOCO YNTSH company capacity
Inoco provide a wide range of filter and filter system for oil production, processing; mining processing, liquefaction, transportation in natural gas industry around the world,used to remove pollutants in liquid or gas. With 18000 companies service experience in worldwide, leading filter laboratory, strong manufacturing capacity, we can provide you with excellent reliability and high performance products.
Inoco all gas filtration and separation products are available with ASME "U" seal "U2", we can also accept BureauVeritas, TUV third-party certification.
For more details pls contact Inoco sales team.
