High Filter Precision Stainless Steel industrial air filter with great price

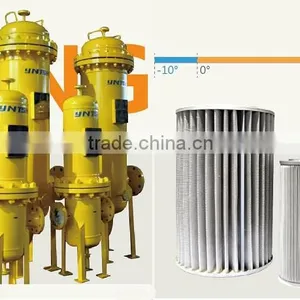

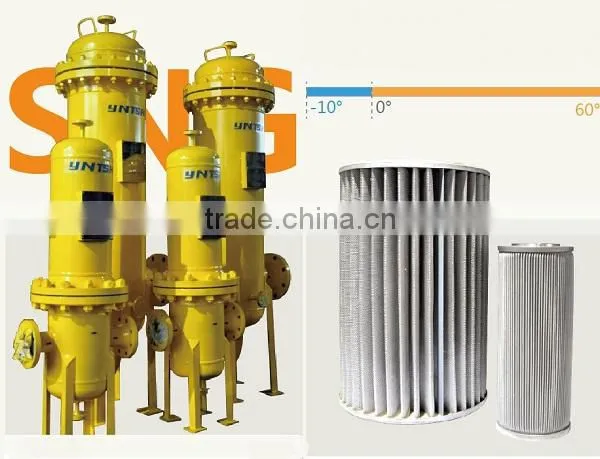

1. YNTSH-SNG GAS FILTER
Gas filter is one pre-filtration equipment, most filter will use stainless steel folded element.
It is suitable for the condition in removal solid particles from the gas or working condition without liquid separation requirements.
Technical Data
Max working pressure:40mpa
Max working temperature:-10~60℃
Media: gas, manufactured gas, lique fied petroleum gas and various non corrosive gas
Design standard:GB150,ASME
Installation direction: horizontal, vertical
Shell material: carbon steel 20#,16MN,16MNR,16MNDR,304,316L
Element material:aluminum+304, 304
Filter precision: 20microns,50microns, 100 microns,150microns, 200microns
Filter efficiency: above 99%
Accessory
Drain valve, relief valve, pressure gauge, pressure differential pressure indicator, pressure different switch, along with on site indicator and remote pressure difference transmitter/ differential pressure valve, level indicator and level switch.
2. YNTSH-LCN-1 Dry Gas Air Filter
YNTSH-LCN-1 is high filtration equipment which plays a crucial role on the protection of precision equipment in gas processing and transportation systems downstream. It is mainly removed dust, solid particle and rust in the gas. It can used for gas dust removing, removing the desiccant particles on drying bed downstream, removing catalyst particles on catalyst bed downstream, metering and regulating stations, city gas distribution system, protection downstream equipment.
Working Principle
While containing impurities flow into the filter, large particle collide with deflector inside the filter then start separating from the natural gas. Fine solid particle will be removed when the gas flow from the outside through filter element. Finally the purified gas exiting from the filter.
Technical Data
Design standard: GB150,ASME
Shell material: carbon steel, SS304, SS316L
Working temperature: exceed 60℃
Filter precision:0.1μm, 1μm, 2μm, 3μm, 5μm, 10μm
Filter efficiency:99.98%
Installation: vertical or horizontal
3. YNTSH-LCN-2 Gas-Liquid Coalescer Filter
Gas-liquid coalescling filter effects: liquid content can be reduced to 0.003ppmw, for removal of solid
particles with accuracy 0.3micron,99.99% filtering efficiency. Cleaning and excluding fluid mist gas is
crucial for equipment reliability and economic efficiency. It is fitted with INCOCO patent element, with
multilayer combination of separation material and hydrophobic and oleophobic treatment, it removes
liquid and solid contaminants at a lower pressure, maximum efficiency, reduce maintenance and
operation cost caused by gas contamination.
Working Principle
Wet gas flow into inlet of filter, when large particle met with dam-board, it will accumulate into larger particle, then drop down, gas with fine particle will flow around filter element, filter from outside to inside, separate from inside to outside, then impurity accumulates and discharge from drain, dry gas flow from outlet.
Application:
1.compressor and turbine protection
2. removal of oil, water and the product compressor wear, corrosion products and other contaminants in the gas
3.Reduce loss of solution gas purification unit
4.The shielding gas flow meter,ensure proper instruction flow
5. Clean fuel gas, device protection
6.Prevent the overflow liquid in the gas clogging well bore
7.Reduce foaming of amines and ethylene glycol in the contactor
8.The protection of the catalyst and desiccant and adsorbent.
4. Gas cartridge filters
INOCO years of accumulated experience and technology development on the membrane process,
using the most advanced technology and production equipment, provide global customers with all kinds of high-performance, high-quality micro porous membrane filtration system.Filter reasonable application of fluid mechanics technology, according to GB150-1998 design, manufacture, inspection.
Filter parameters
Media:water chemical air gas nitrogen oxygen hydrogen and etc
Capacity:Standard Mode accommodate 12-300 pcs folding membrane
elements,the filter length could be 10,20,30,40 (Unit inch)
Flow rate:
1~10000Nm3/H; Air as unit
Shell material:
CS,304,304L,316,316L,C276,2205,coating
Filter accuracy:
0.003 micron ~ 50 microns
Standard:
steel pressure vessel,water treatment filter criteria, ASME "U"
Pressure and temperature:
0-2.5Mpa / 0-260℃
The maximum pressure and temperature only shows vessel level, the safe operating temperature and pressure will depend on the filter elements and seal ring
Polypropylene folded elements
Teflon elements
Nylon elements
Polyvinylidene fluoride absolute elments
Perfluorinated elements
Stainless steel fiber felt elements
Stainless steel sintered mesh elements
Stainless steel powder sintered elements
Filter connection size: DN15-DN500,NPT,M series
Drain outlet:DN50
Vent:DN15
Discharge port:DN25
Detailed cases refer to the left picture!

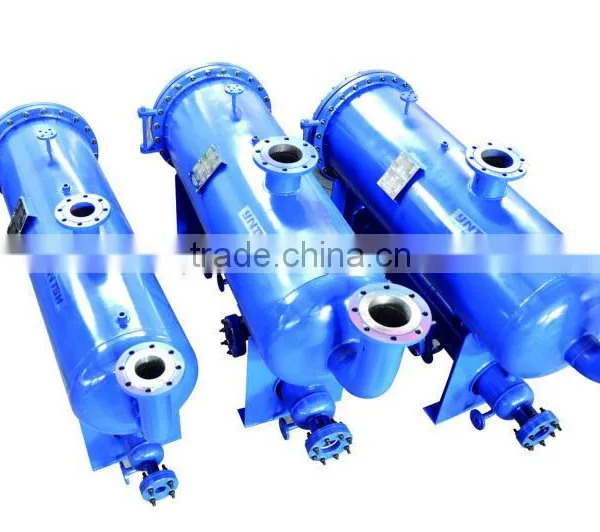

5. INOCO-500series wire mesh gas separator filter
INOCO 500 Series gas separator filter is mainly used in the need for efficient removal of solid and liquid particles , regardless of the particle size these also can be applied. Gas separator filter is particularly suitable for removing dust and smoke which is extremely small. Its wide range of applications, including eliminating lubricants from processing air, removing impurity from upstream gas pipelines in regulator stations and compressor stations and removing ethanol from the gas after dehydration and etc. Series 500 gas filter separator is combined by YNT mesh demister and YNT coalescence elements. the droplets more than 3-5μm can be 100% separated; between 0.5 ~ 3μm droplets can be 99%separated , and the solid particles 0.5μm are 99% filtered.
Technical parameters >>
1 Work pressure: 0.1~40.0Mpa 2 Work temp: -40~+300℃
3 Separate accuracy: 0.3,1,3,5μm 4 Separate efficiency: 99.98%
5 Max flowrate: 6500000Nm3/hr
Parameters >>
1 Design code ASME sec. vill div.1 div.2
2 Available material: Carbon steel, SS316/304...
3 Finish: Blasted and painted for cs glass bead for ss vessels, or to meet spec.
4 Bolts and hex nuts: Plated carbon steel,or to meet specification
5 O’RINGS: buna n or epdm standard viton, TEV or other optional
Options >>
Quick open blind plate(insert type,hooptype,locked ring type)
Relief valve
Drain valve
Inlet/outlet ball valve
Differential pressure switch
Differential pressure indicator
Level indicator
Level switch
Skid-mounted
Gas separator filter Operation priciple>>
The wire mesh separator filter working process has three stages:
Step 1: Gravity separating
Gas flows into the filter body from inlet pipe. With the strong impact towards the shell surface or cartridge frame, impurity substances in big size will be separated;
Step 2: Screening holes separating
Rechargeable filtering devices are equipped at the head side of the separator. The type and accuracy level can be chosen with different working requirements. Solid impurity substances in minimal size will be gathered into mist style stuff and removed.
Step 3: Leaf separating
With a mesh demistre, the liquid drop will be collected and stored in the catch basin in the bottom of the filter separator.
6. YNTSH-SN-700 series vane separator
INOCO 700 series separating filter is combined by YNT vane separated and YNT coalescence elements ,the droplets more than 5-8 um can be 100% separated ad the solid particles 0.5 um are 99% filtered.
The wire mesh filter separator working process has three stages:
Step 1: Gravity separating Gas flows into the filter body from inlet pipe. With the strong impact towards the shell surface or cartridge frame, impurity substances in big size will be separated;
Step 2: Screening holes separating Rechargeable filtering devices are equipped at the head side of the separator. The type and accuracy level can be chosen with different working requirements. Solid impurity substances in minimal size will be gathered into mist style stuff and removed.
Step 3: Leaf separating
With a mesh demistre, the liquid drop will be collected and stored in the catch basin in the bottom of the filter separator.
Main performance >>
Van separator can treat various ratio of gas-liquid medium. It is having high efficiency to solve large amounts of liquid.
Structure feature>>
1 The vane element can be fixed or movable structure
2 Welded or bolted bracket
3 Available to add the self-cleaing system
4 Available to increase the variety of flow distribution structure
Application:
1.recovery ( methyl alcohol, hydrogen nitride)
2.transportatin pipelines, main dispatch station, gas gathering system
3.the compressor entrance dispenser fuel gas scrubber, the combustion exhaust gas srubber, pump mill evaporator.

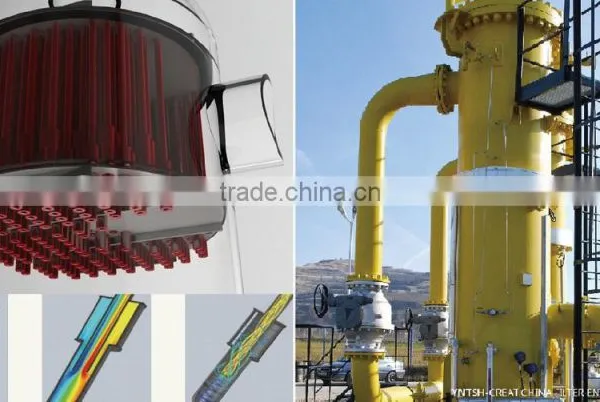

7. YNTSH-SN-900 series cyclone separator filter
Description >>
INOCO 900 series cyclone separator is a combination of multi-branch cyclone tube and cartridges for separating particles and droplets from gas.
First stage filtering:
Cyclone tube gas-liquid separator:
when the gas flows containing liquid into the gas-liquid separator, due to the rotation of the cyclone vortex tube design, the flow will provide a strong centrifugal force, making the solid particles and liquid impurities attached to the cyclone tube wall.
After the impurities are separated from the gas stream, them fluid accumulates in the region of the container. Gas after purification leaves cyclone tube separator with minimal pressure drop into the next level of filtering.
Second stage filtering:
Cartridge filtration and separation:
this level is made of numbers of filter elements which can be replaced or repeatedly cleaned.
Such type of filter element and the accuracy level are selected according to work conditions, the poupose is to remove the smalest solid particles and condense mist and make maximum droplets could be removed fromt the separator.
8.YNTSH-SN-920 series cyclone separator filter
INOCO learns the advantages of domestic and foreign cyclone tube technology and developed the separation for gas-liquid-solid phase with high efficiency performance and wear resistant and corrsion resistance. It has high surface hardness(surface hardness up to HV 900~1000), great corrosion resistance(applicable to acids, alkalis, wet hydrogen sulfide environment and etc)
Cyslone tube is a 2" using centrifugal principle of tubular pipe. Gas to be filtered entrrs the inlet port and forms torational flow in tube, as for the liquid and solid particles and gas density differences, with the centrifugal force separated, clean fuel gas from the conduit to flow away the solid and liquid particles fall into the bottom of the separator from the conduit then drain away from the outfall, The number of cyclone tube is based on the actual gas flow and pressure drop allowed.
9. Three Phase Separator
From land and ocean’s crude oil exploration and exploitation to its refining and refining process, INOCO adopts continuous innovation of technology and wide filtration system, which ensure supply complex filter solution for customer. For decades, we have always supplied filter for CNPC, CNOOC, SINOPEC and the filter meets customer’s separation efficiency,
Reliability and economy.
Detailed Description
While finish drilling work, reservoir fluid mixture flows into hole and it is trapped to surface by high pressure pump. This mixture has three liquid (crude oil, natural gas and water), it will usually generate some solids. High efficient three phase separator has good separating efficiency, use liquid pretreatment, plate groove distribution liquid, mechanical demulsification
Technology circulating environment, high efficient packing and coalescence and rectification,
Oil and water page and interface automatically control, separate with chemical demulsifier,
Which lets separator with low resistance, large capacity, high efficient dehydration to achieve max automatic operation.
Separating technology characteristics
1. High quality water deprivation, crude oil with high water content will achieve qualified
Oil purification standard, that is waste water containing oil less than 1000mg/l.
2. high flow capacity, 2-3 times compared with ordinary three phase separator.
3. Strong discharge capacity, INOCO-SXTY type is high efficient separator with vertical type to easily discharge. Compared with traditional type, it is equipped with stronger discharge capacity.
4. High efficient oil water interface control, compared with traditional type with mechanical adjustment, INOCO three phase separator adopts intelligent admittance interface tester which can efficiently control oil water interface.
5. Gas phase outlet’s gas is with small water content, with INOCO-SXFY vane’s influence, Gas’s water content will less than 0.008%.
