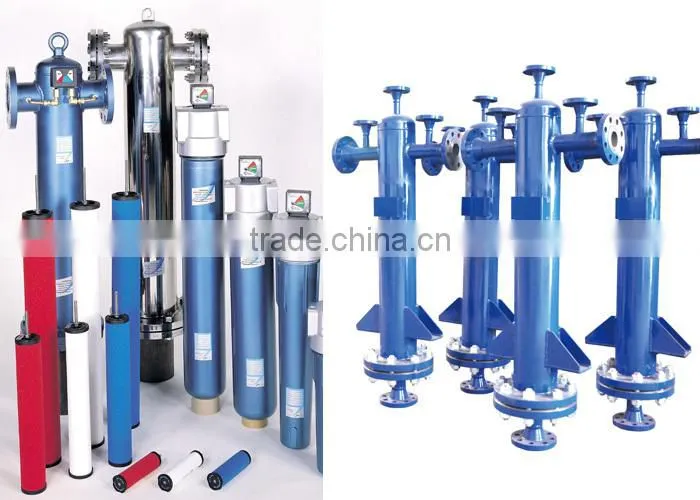

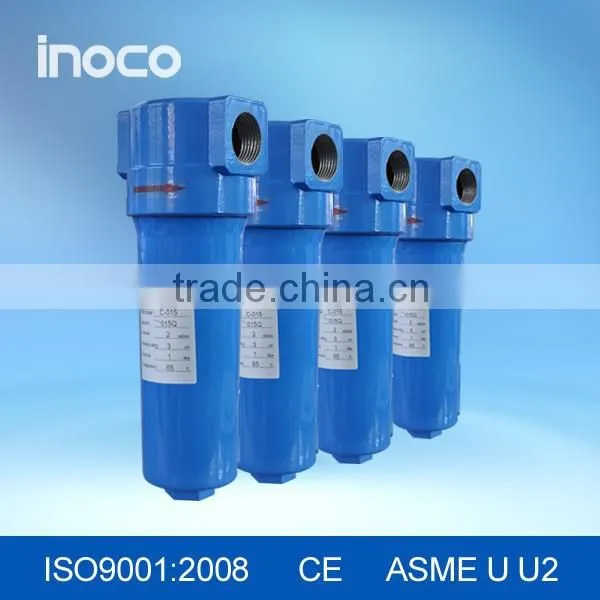

1,INOCO-SGA-A series Compressed air filter air filter housing
Description >>
1 Extension current route to slow pressure drop
2 High grade aluminium-silicon and carbon-steel cartridge
3 Painted surface with epoxy resin for wear resistance and corrosion resistance
4 Screw threads structure at inlet and outlet for easy installation with air flow indication on the cartridge
5 Compact design for flexible troubleshooting
6 Exact pressure indicator to secure element replacement
7 Level indicator to monitor critical level for down stream pollution prevention
8 Reliable automatic drain
Assembly part >>
Linked direct differential pressure indicator
Aluminium die casting cap
Decompression hole
High efficient filter element
Aluminium silicon cartridger
Level indicator
Manual spherical ball valve
Automatic drain

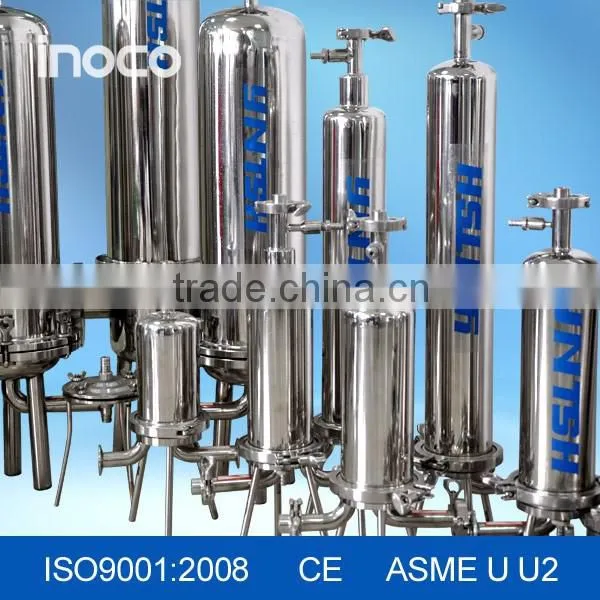

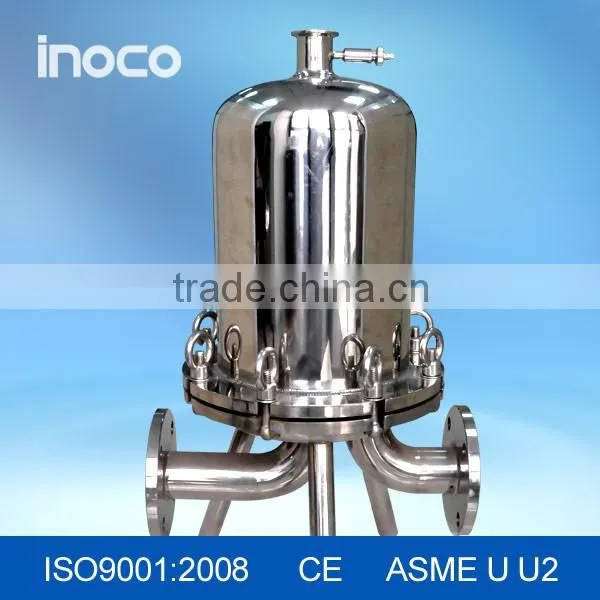

2,INOCO cartridge water filter
Description >>
INOCO has years experience of development and technology in membrane process, with the most advanced technology and production equipment, Inoco provides global customers all kinds of highly efficient, high quality of microporous membrane filter system.
Cartridge filters are effective in the removal of moderate amounts of particles from liquids in the size range of 50 to 0.035microns. When filtering large amounts of solids at high flow rates, other treatment methods such as self-cleaning multimedia filters may be required aspre-filters, followed by cartridge filtration, if needed.
The most popular micron sizes are the 5-micron general-purpose filter cartridge, and 0.2 submicron“Absolute” pleated filter cartridge for final filtration on high purity water systems.
INOCO cartridge water filter Specification>>
|
Rated capacity (m3/min) |
Elements info | Inlet/outlet | Outer size (mm) | ||||||
| QTY | L | D(mm) | Connection | D | W | H | H1 | H2 | |
| 1 | 1 | 5" | DN25 | Flange or clamp | φ102 | 222 | 370 | 250 | |
| 2 | 10" | 510 | 370 | ||||||
| 4 | 20" | DN40 | 760 | 610 | |||||
| 6 | 3 | 10" | DN50 | Flange | φ184 | 344 | 780 | 286 | 400 |
| 10 | 20" | DN65 | 1050 | 296 | 640 | ||||
| 15 | 5 | φ234 | 414 | 1170 | 376 | 653 | |||
| DN80 | |||||||||
| 20 | 1210 | 391 | |||||||
| DN100 | |||||||||
| 30 | 7 | φ274 | 454 | 1260 | 663 | ||||
| 40 | 9 | φ306 | 506 | 1330 | 415 | 685 | |||
| DN125 | |||||||||
| 60 | 12 | φ356 | 556 | 1350 | 424 | 698 | |||
| 15 | |||||||||
| 80 | φ406 | 606 | 1410 | 710 | |||||
| 19 | DN150 | 1440 | 434 | ||||||
| 100 | 444 | ||||||||
| 120 | 29 | φ506 | 726 | 1560 | 468 | 735 | |||

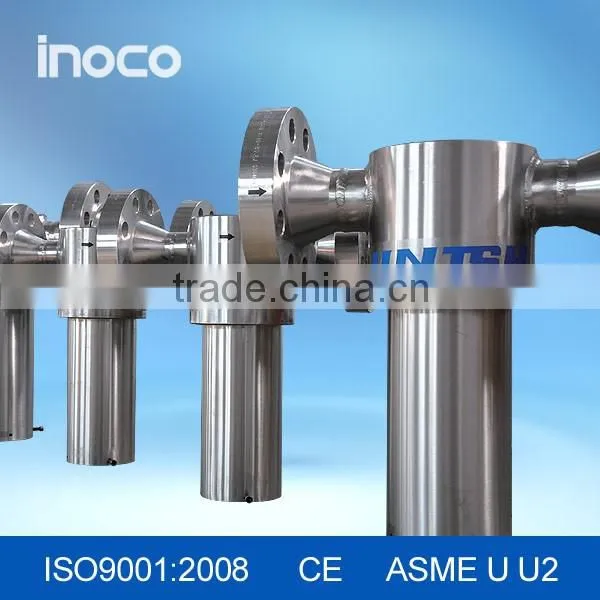

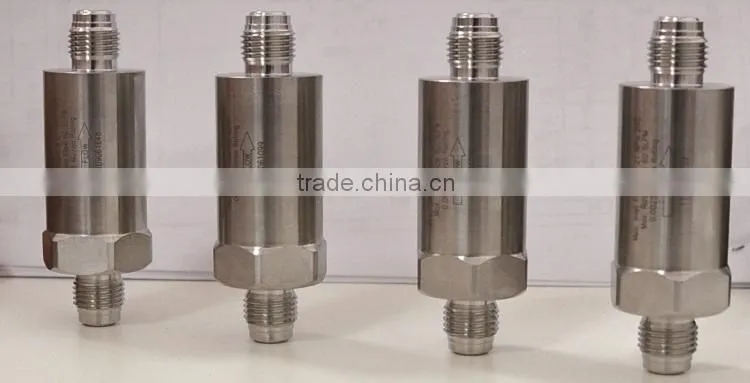

3,INOCO-SGA-D series high pressure gas filter
Description >>
The working pressure range of SGA-D series high pressure filter is 25-400 bar, and it is the most security and reliability record range. Compared with other products in filter industry, HS series high pressure filter provides considerable technical and economic advantages for high pressure operation system.
Material >>
Top shell: CS(optional 16 MnR III), SS(316 III)
Bottom shell: CS(optional 16 MnR III), SS(316 III)
Sealing: fluorine rubber
Connection: flange, thread, butt welding
Filter element >>
Polyester filter element, glass fiber filter element
Washable Stainless steel filter element
Filtration precision: 0.003 micron to 10 micron
high pressure gas filter Specification>>
| Filter model | Max flow rate m3/min @7bar |
Max working pressure barg | Installation specification mm | |||||||
| A | B | C | D | E | F | G | H | |||
| SGD-D-30 | 30 | 64 | 165 | 85 | R1/4" | 145 | 130 | 90 | 50 | 4 x M8 |
| D-60 | 60 | 64 | 165 | 85 | R3/8" | 145 | 130 | 90 | 50 | 4 x M8 |
| D-120 | 120 | 64 | 205 | 105 | R1/2" | 185 | 190 | 110 | 50 | 4 x M8 |
| D-180 | 180 | 64 | 230 | 105 | R3/4" | 205 | 190 | 110 | 50 | 4 x M8 |
| D-270 | 270 | 64 | 235 | 119 | R1" | 210 | 190 | 130 | 70 | 4 x M10 |
| D-360 | 360 | 64 | 290 | 119 | R1 1/4" | 255 | 250 | 130 | 70 | 4 x M10 |
| D-480 | 480 | 64 | 315 | 150 | R1 1/2" | 280 | 250 | 160 | 80 | 4 x M10 |
| D-720 | 720 | 64 | 405 | 186 | R2" | 365 | 340 | 200 | 110 | 4 x M10 |
4,INOCO-CSB series dust collector
Description >>
INOCO CSB series is suitable for large flow and high solid content filter. Inoco dust removal gas filter is mainly used in petrochemical, chemical fiber, chemical, electric power, metallurgy, steel, electronics and other high efficient gas filtering field; at the same time it also can be used in inflammable, explosive, sticky dust or fine dust filtering.
INOCO can design and manufacture filters according to customer's requirements under different standards such as CS/ASME/CE to meet different demand.
Performance parameters>>
Manufactured standard: GB150 or ASME
Vessel material: CS ,stainless steel
Filter accuracy: 0.01-100um
Flow range: 0-10,000,000Nm3/hr
Cleaning type: Automatic or manual
dust collector Performance feature>>
1. High precision of dust removal, emissions can meet European standards(25 mg/Nm3) or less, under special circumstances emissions can be 5 mg/Nm3 ore less.
2. Automatic control, high efficienc ash removal system and automatic transmission system to ensure the stable operation of equipment.
3. High efficient pulse dust removal system, prolong the service life of filter element, saving the cost of operating maintenance
4. INOCO can design various special gas dust filter according to other filter medium based on customer requirements.
dust collector Cartridge dust collector Specification >>
| Material | External D * Internal D * H | Filter area | Accuracy | Rated flow | Pressure difference |
| Compose Fiber | 324*213*1000 | 20m2 | 0.5um | 1200m3/h | 80-100Pa |

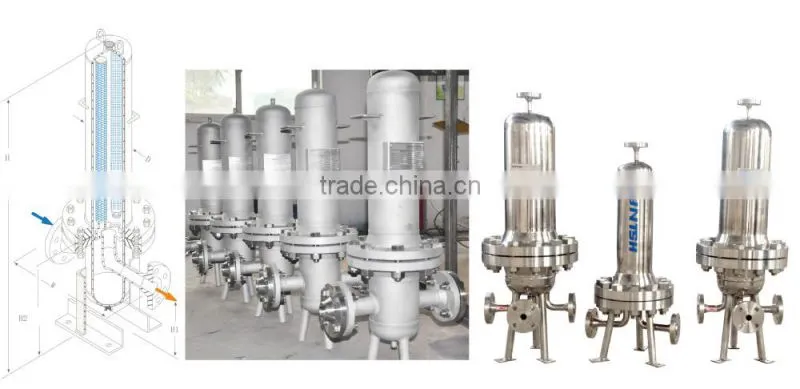

5, INOCO-SGA-II Large flow of cartridge filter
Description>>
INOCO SGA-II series filters are mainly used in the design of large flow of gas and high temperature gas filtration, such as air, hydrogen nitrogen steam. In INOCO designed filter cases, flow rate for a single filter could reached 250000m3/h, filtration efficiency could be 99.99%.
Elements performance description>>
1 wide fold distance design
2 high precision filtration, filtration efficiency reaches up to 99.99%
3 high flow rate, equivalent to four times the area of the same size element
4 rubber ring seal
5 easy cleaning cone / diversion type with excellent cleaning effect
6 user-friendly installation design
Specification>>
ITEM |
Ⅱ-200 | Ⅱ-400 | Ⅱ-800 | Ⅱ-1000 | Ⅱ-1600 | Ⅱ-2000 | Ⅱ-2800 |
| Air flow range m3/min | 200 | 400 | 800 | 900 | 1600 | 1920 | 2720 |
| Filtration efficiency | 99.90% | ||||||
| Filtration precision | 1um | ||||||
| Filter initial pressure drop | 150Pa | ||||||
| Compress air consumption | 0.1-0.3 m3/min | ||||||
| Filter element number | 10 | 20 | 36 | 48 | 80 | 96 | 136 |
| External size m | 1*2.5*3 | 2*2.5*3 | 3*3*3 | 4.26*3*3 | 4.26*5*3 | 4.26*6*3 | 4.26*8.5*3 |
6, dust collector element
Dust filter element material selection >>
R1 composite fiber filter
R3 standard polyester fiber
R7 treated polyester film
Dust filter core component source >>
USA HV
USA Donaldson
Japan Toray
Korea Kolon

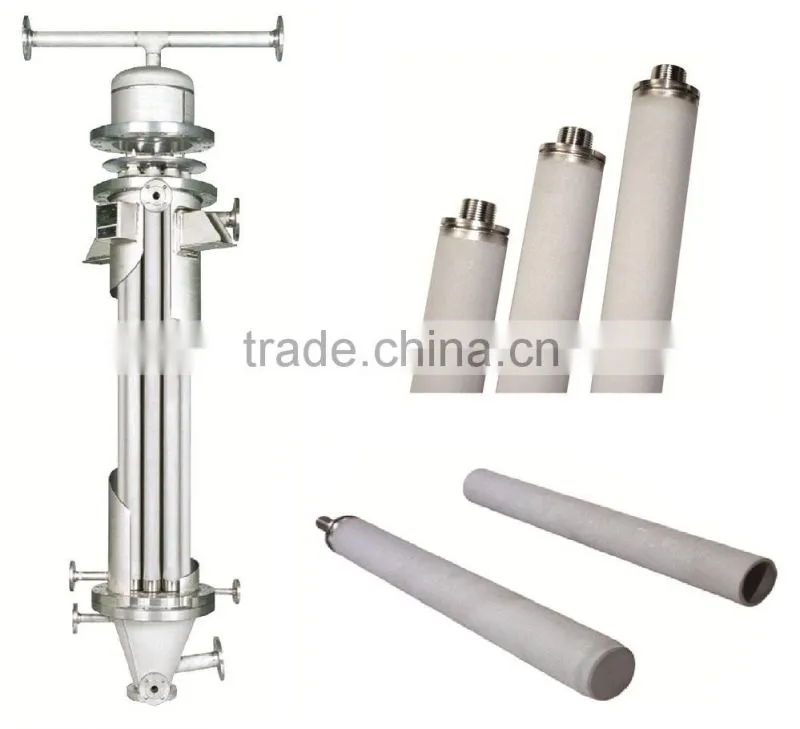

7, YNTSH-CSF series gas filter element
YNTSH-CSF-1 series SS powder sintering filter element>>
Material: 316 low carbon stainless steel powder sintered in inert gas with INOCO proprietary technology. Before sintering, metal powder formed by extrusion, not by using of other materials like adhesives. There are other material that can be used, such as nickel, 300 series stanless steel and a variety of alloys.
Model selection>>
Filtration precision: 0.003um~10um
Flow rate: 3Nm3 / 10" / 5um

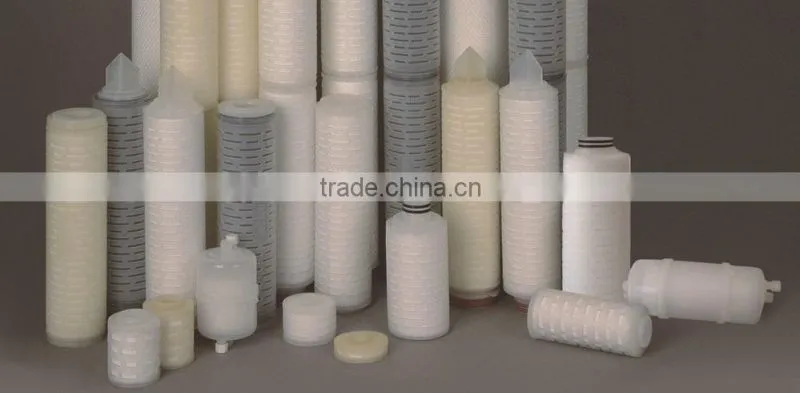

YNTSH-MMP-I series SS powder sintering filter element>>
INOCO MMP-I series filter cartridge makes high-precision and low-cost filtration become a reality, the filter media from the United States and Japan ensures a high retention efficiency. High flow rates and high dirt holding capacity, MMP series cartridges become the most economical for pre-filter cartridge, widely used in areas of medicine, electronics, chemicals, food and beverage and etc.
Elements parameter>>
material | |
membrane |
hydrophobic PP |
support |
pp |
shell (housing) |
pp |
end lid |
pp |
O ring pad |
EPDM / Viton / outsourcing PTFE / silicone rubber |
seal technology |
Hot melt welding (no adhesive) |
connection type |
222,226 |
size mm | |
diameter |
68,83,150 |
length |
250,500,750,1000,1500 |
Filter area/68-10″ |
0.6M2 |
filter accuracy |
0.1,0.22,0.45,1.3,5,10 |
Positive pressure difference |
4.2Kg/23℃;1.5Kg/85℃; |
flow rate and pressure difference |
10″(Clean state) |
0.22μm |
≥2.0NM3/Min |
Sterilization cycle times | |
Achieve 15 times on line steam sterilization continuously or 123 ℃ / 30min autoclaved | |

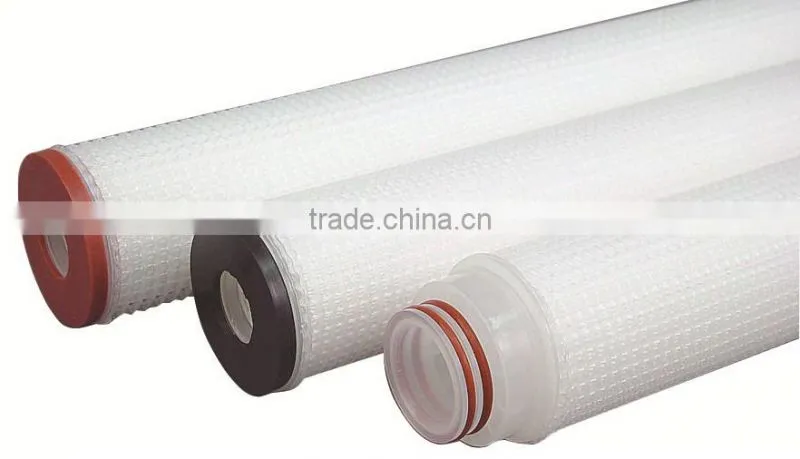

YNTSH-TFEG series PTFE folded elements>>
The most efficient gas sterilization elements
Teflon membrane elements widely used in gas sterilization filter for pharmaceutical, biological products, food and beverage, fermentation industry and etc, Natural hydrophobic and double-deck PTFE membrane structure and 100% completely tests, all ensure media to be absolute sterilized.
Elements parameter>>
material | |
membrane |
hydrophobic PTFE |
support |
PP |
shell |
PP |
end lid |
PP |
O ring pad |
EPDM / Viton / outsourcing PTFE / silicone rubber |
seal technology |
Hot melt welding (no adhesive) |
connection type |
222,226 |
size | |
diameter |
68,83,150 |
length |
250,500,750,1000,1500 |
filter area/68-10″ |
0.64M2 |
filter accuracy |
0.003,0.05,0.1,0.22,0.45,1.3,5,10 |
positive pressure difference |
4.2Kg/23℃;1.5Kg/85℃; |
flow rate and pressure difference |
10″(clean state) |
0.45μm |
≥2Nm3/min |
wholeness test @23℃ | |
Bubble Point |
≥1100 mbar,60% IPA |
Water immersion method |
≤0.75mL/min/10″@2620mbar |
Sterilization cycle times | |
Achieve 15 times on line steam sterilization continuously or 123 ℃ / 30min autoclaved | |
8, Inoco company capacity
Inoco provide a wide range of filter and filter system for oil production, processing; mining processing, liquefaction, transportation in natural gas industry around the world,used to remove pollutants in liquid or gas. With 18000 companies service experience in worldwide, leading filter laboratory, strong manufacturing capacity, we can provide you with excellent reliability and high performance products.
Inoco all gas filtration and separation products are available with ASME "U" seal "U2", we can also accept BureauVeritas, TUV third-party certification.
9, Related products
1. GAS FILTER
2. DRY GAS FILTER
3. GAS-LIQUID COALESCER FILTERS
4. WIRE MESH SEPARATOR
5. VANE SEPARATOR
6. CYCLONE SEPARATOR
7. COKE OVEN GAS FILTER
8. GAS CARTRIDGE FILTER
9. LARGE FLOW CARTRIDGE FILTER
10. COMPRESSED AIR FILTER
11. HIGH PRESSURE FILTER
12. CARTRIDGE DUST COLLECTOR
13. AERATION CONE
14. CERAMIC MEMBRANE DUST REMOVAL FILTER
15. ULTRA PURE GAS FILTRATION SEPARATION
16. GAS MEMBRANE SEPARATION DEVICE
For more details pls contact Inoco sales team.
