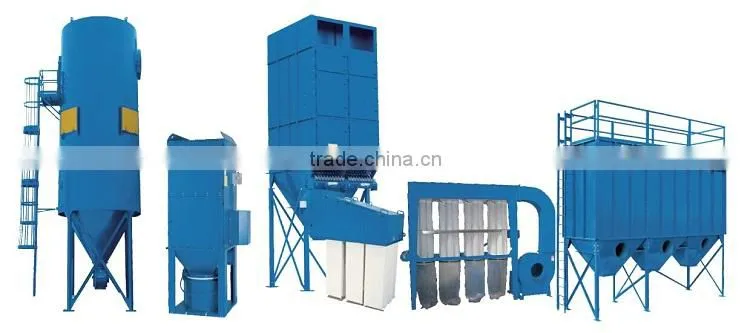

1,INOCO-CSB series dust collector
Description >>
INOCO CSB series is suitable for large flow and high solid content filter. Inoco dust removal gas filter is mainly used in petrochemical, chemical fiber, chemical, electric power, metallurgy, steel, electronics and other high efficient gas filtering field; at the same time it also can be used in inflammable, explosive, sticky dust or fine dust filtering.
INOCO can design and manufacture filters according to customer's requirements under different standards such as CS/ASME/CE to meet different demand.
Performance parameters>>
Manufactured standard: GB150 or ASME
Vessel material: CS ,stainless steel
Filter accuracy: 0.01-100um
Flow range: 0-10,000,000Nm3/hr
Cleaning type: Automatic or manual
2, dust collector Performance feature
1. High precision of dust removal, emissions can meet European standards(25 mg/Nm3) or less, under special circumstances emissions can be 5 mg/Nm3 ore less.
2. Automatic control, high efficienc ash removal system and automatic transmission system to ensure the stable operation of equipment.
3. High efficient pulse dust removal system, prolong the service life of filter element, saving the cost of operating maintenance
4. INOCO can design various special gas dust filter according to other filter medium based on customer requirements.
3, dust collector Specification
Cartridge dust collector >>
| Material | External D * Internal D * H | Filter area | Accuracy | Rated flow | Pressure difference |
| Compose Fiber | 324*213*1000 | 20m2 | 0.5um | 1200m3/h | 80-100Pa |
Large flow cartridge filter >>
ITEM |
Ⅱ-200 | Ⅱ-400 | Ⅱ-800 | Ⅱ-1000 | Ⅱ-1600 | Ⅱ-2000 | Ⅱ-2800 |
| Air flow range m3/min | 200 | 400 | 800 | 900 | 1600 | 1920 | 2720 |
| Filtration efficiency | 99.90% | ||||||
| Filtration precision | 1um | ||||||
| Filter initial pressure drop | 150Pa | ||||||
| Compress air consumption | 0.1-0.3 m3/min | ||||||
| Filter element number | 10 | 20 | 36 | 48 | 80 | 96 | 136 |
| External size m | 1*2.5*3 | 2*2.5*3 | 3*3*3 | 4.26*3*3 | 4.26*5*3 | 4.26*6*3 | 4.26*8.5*3 |

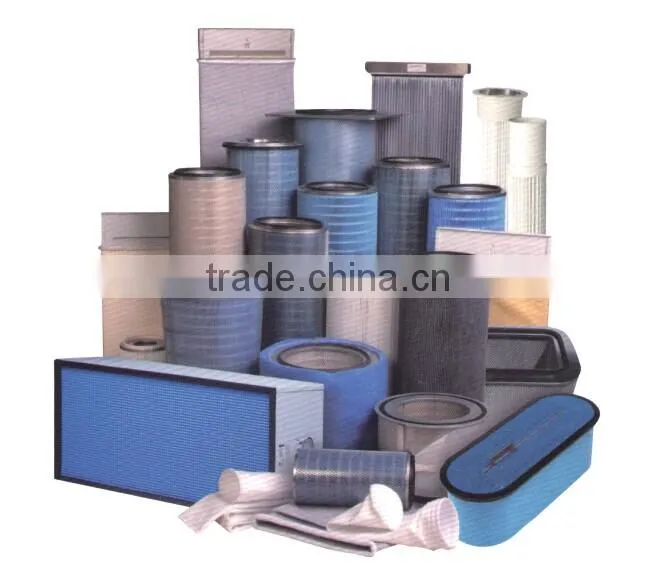

4, dust collector element
Dust filter element material selection >>
R1 composite fiber filter
R3 standard polyester fiber
R7 treated polyester film
Dust filter core component source >>
USA HV
USA Donaldson
Japan Toray
Korea Kolon

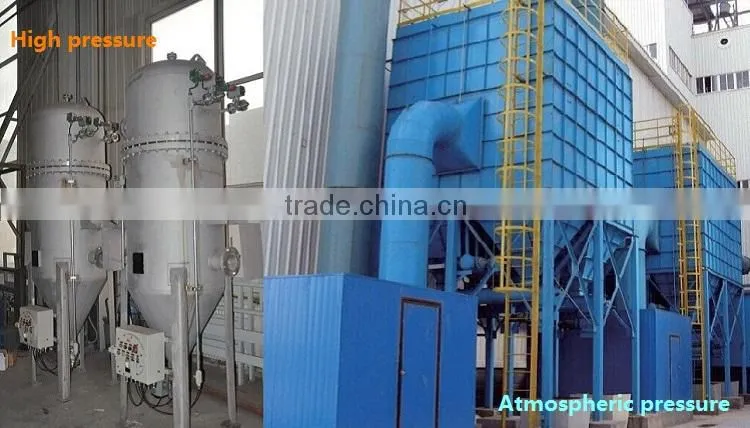

5, dust collector Application cases
1 Wide fold distance design
2 High precision filtration, filtration efficiency reaches up to 99.99%
3 High flow rate, equivalent to four times the area of the same size element
4 Rubber ring seal
5 Easy cleaning cone/diversion type with excellent cleaning effect
6 User-friendly installation design
6, Inoco company capacity
Inoco provide a wide range of filter and filter system for oil production, processing; mining processing, liquefaction, transportation in natural gas industry around the world,used to remove pollutants in liquid or gas. With 18000 companies service experience in worldwide, leading filter laboratory, strong manufacturing capacity, we can provide you with excellent reliability and high performance products.

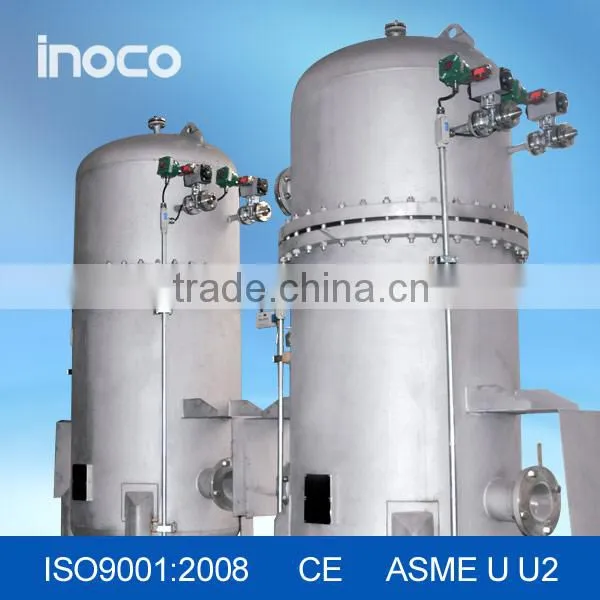

Inoco all gas filtration and separation products are available with ASME "U" seal "U2", we can also accept BureauVeritas, TUV third-party certification.
7, Related products
1. GAS FILTER
2. DRY GAS FILTER
3. GAS-LIQUID COALESCER FILTERS
4. WIRE MESH SEPARATOR
5. VANE SEPARATOR
6. CYCLONE SEPARATOR
7. COKE OVEN GAS FILTER
8. GAS CARTRIDGE FILTER
9. LARGE FLOW CARTRIDGE FILTER
10. COMPRESSED AIR FILTER
11. HIGH PRESSURE FILTER
12. CARTRIDGE DUST COLLECTOR
13. AERATION CONE
14. CERAMIC MEMBRANE DUST REMOVAL FILTER
15. ULTRA PURE GAS FILTRATION SEPARATION
16. GAS MEMBRANE SEPARATION DEVICE
For more details pls contact Inoco sales team.
