1,INOCO-500series gas separator filter gas filter
Description >>
INOCO 500 Series gas separator filter gas filter is mainly used in the need for efficient removal of solid and liquid particles , regardless of the particle size these also can be applied. Gas separator filter is particularly suitable for removing dust and smoke which is extremely small. Its wide range of applications, including eliminating lubricants from processing air, removing impurity from upstream gas pipelines in regulator stations and compressor stations and removing ethanol from the gas after dehydration and etc. Series 500 gas filter separator is combined by YNT mesh demister and YNT coalescence elements. the droplets more than 3-5μm can be 100% separated; between 0.5 ~ 3μm droplets can be 99%separated , and the solid particles 0.5μm are 99% filtered.
Technical parameters >>
1 Work pressure: 0.1~40.0Mpa 2 Work temp: -40~+300℃
3 Separate accuracy: 0.3,1,3,5μm 4 Separate efficiency: 99.98%
5 Max flowrate: 6500000Nm3/hr
Parameters >>
1 Design code ASME sec. vill div.1
2 Available material: Carbon steel, SS316/304...
3 Finish: Blasted and painted for cs glass bead for ss vessels, or to meet spec.
4 Bolts and hex nuts: Plated carbon steel,or to meet specification
5 O’RINGS: buna n or epdm standard viton, TEV or other optional
Options >>
Quick open blind plate(insert type,hooptype,locked ring type)
Relief valve
Drain valve
Inlet/outlet ball valve
Differential pressure switch
Differential pressure indicator
Level indicator
Level switch
Skid-mounted
Gas separator filter gas filter Operation priciple>>
The wire mesh separator filter working process has three stages:
Step 1: Gravity separating
Gas flows into the filter body from inlet pipe. With the strong impact towards the shell surface or cartridge frame, impurity substances in big size will be separated;
Step 2: Screening holes separating
Rechargeable filtering devices are equipped at the head side of the separator. The type and accuracy level can be chosen with different working requirements. Solid impurity substances in minimal size will be gathered into mist style stuff and removed.
Step 3: Leaf separating
With a mesh demistre, the liquid drop will be collected and stored in the catch basin in the bottom of the filter separator.
2, Gas separator filter gas filter Mesh demister
Description >>
Wire mesh demister, also known as wire mesh mist eliminator, screen capture demister, demister. Primarily used for the separation of diameter greater than 3μm ~ 5μm droplets.
When the gas mist with a certain speed to rise through the filter mesh of the intermediate grid, the inertia of the rising mist, make the filaments collide with the mist and adhere to the surface of the filaments.
Mist further spread on the surface of the filament, as for itself gravity, the mist is formed larger droplets and flow along its filament interleaving.Along with wettability of the filaments, capillary action and surface tension of the liquid filaments the droplets increases, until the force of its own weight
exceeds the buoyancy of the rising gas and liquid surface tension, the drop was separated.
3,INOCO-LCN-1series Dry gas filter separator filter
Description >>
INOCO LCN-1 series of dry gas filter is to remove dust particles from the gas high efficiency filtration products. It is used to remove dust, solid particles and rust inthe gas. High performance filters pay a crucial role on the protection of precision equipment in gas processing and transportation systems downstream.
Filter uses advanced and reliable elements, in order to ensure performance of the device. A wide selection of filter material, such as ultrafine glass fiber, polyester, multilayer fiberglass, polypropylene, nylon and so on. according to different requirements Select the type of cartridge
Performance parameters>>
Manufactured standard: GB150 or ASME
Vessel material: CS ,stainless steel
Filter accuracy: 0.1μm ,1μm,2μm,3μm,5μm, 10μm
Filtration efficiency: 99.98%
Installation: Vertical or Horizontal
Dry gas separator filter Operation priciple>>
After the containing impurities gas into the filter, large particles collide with deflector inside the filter then start separating from the natural gas. fine solid particles will be removed when the gas flow from the outside through filter element. Finally, the purified gas exiting from the filter.
One end of the device using the quick opening blind or blind flanges, open and close when to replace the filter. Using quick blind can turn on or off real fast, just need one minute so saving time and avoiding some security risk when replace the filter elements
3, YNTSH-SN-900 series cyclone separator filter
|
Description >>
Principle of operation >>
First stage filtering: Cyclone tube gas-liquid separator: when the gas flows containing liquid into the gas-liquid separator, due to the rotation of the cyclone vortex tube design, the flow will provide a strong centrifugal force, making the solid particles and liquid impurities attached to the cyclone tube wall. After the impurities are separated from the gas stream, them fluid accumulates in the region of the container. Gas after purification leaves cyclone tube separator with minimal pressure drop into the next level of filtering.
Second stage filtering: Cartridge filtration and separation: this level is made of numbers of filter elements which can be replaced or repeatedly cleaned. Such type of filter element and the accuracy level are selected according to work conditions, the poupose is to remove the smalest solid particles and condense mist and make maximum droplets could be removed fromt the separator. |
|
YNTSH-SN-920 series cyclone separator filter
Description >>
INOCO learns the advantages of domestic and foreign cyclone tube technology and developed the separation for gas-liquid-solid phase with high efficiency performance and wear resistant and corrsion resistance. It has high surface hardness(surface hardness up to HV 900~1000), great corrosion resistance(applicable to acids, alkalis, wet hydrogen sulfide environment and etc)
Cyslone tube is a 2" using centrifugal principle of tubular pipe. Gas to be filtered entrrs the inlet port and forms torational flow in tube, as for the liquid and solid particles and gas density differences, with the centrifugal force separated, clean fuel gas from the conduit to flow away the solid and liquid particles fall into the bottom of the separator from the conduit then drain away from the outfall, The number of cyclone tube is based on the actual gas flow and pressure drop allowed.
4, YNTSH-LCN-2 series gas liquid coalescer filter
Description >>
INOCO LCN-2 gas-liquid coalescing filter effects:liquid content can be reduced to0.003 ppmw, for the removal of solid particles with accuracy 0.3um up to 99.99%
In gas processing, oil refining and chemical processing and other processes,cleaning and excluding fluid mist gas is crucial for equipment reliability and economical efficiency, coalescer filter elements with INOCO patent, a multilayer combination of separation material and the hydrophobic and oleophobic treatment,have max effciency to remove liquid and solid contaminants at a lower pressure and would reduce maintenance and operating costs caused by gas contamination.
1,INOCO-SGA-D series high pressure gas filter
Description >>
The working pressure range of SGA-D series high pressure filter is 25-400 bar, and it is the most security and reliability record range. Compared with other products in filter industry, HS series high pressure filter provides considerable technical and economic advantages for high pressure operation system.
Material >>
Top shell: CS(optional 16 MnR III), SS(316 III)
Bottom shell: CS(optional 16 MnR III), SS(316 III)
Sealing: fluorine rubber
Connection: flange, thread, butt welding
Filter element >>
Polyester filter element, glass fiber filter element
Washable Stainless steel filter element
Filtration precision: 0.003 micron to 10 micron
2, high pressure gas filter Specification
| Filter model | Max flow rate m3/min @7bar |
Max working pressure barg | Installation specification mm | |||||||
| A | B | C | D | E | F | G | H | |||
| SGD-D-30 | 30 | 64 | 165 | 85 | R1/4" | 145 | 130 | 90 | 50 | 4 x M8 |
| D-60 | 60 | 64 | 165 | 85 | R3/8" | 145 | 130 | 90 | 50 | 4 x M8 |
| D-120 | 120 | 64 | 205 | 105 | R1/2" | 185 | 190 | 110 | 50 | 4 x M8 |
| D-180 | 180 | 64 | 230 | 105 | R3/4" | 205 | 190 | 110 | 50 | 4 x M8 |
| D-270 | 270 | 64 | 235 | 119 | R1" | 210 | 190 | 130 | 70 | 4 x M10 |
| D-360 | 360 | 64 | 290 | 119 | R1 1/4" | 255 | 250 | 130 | 70 | 4 x M10 |
| D-480 | 480 | 64 | 315 | 150 | R1 1/2" | 280 | 250 | 160 | 80 | 4 x M10 |
| D-720 | 720 | 64 | 405 | 186 | R2" | 365 | 340 | 200 | 110 | 4 x M10 |
| Filter model | Max flow rate m3/min @7bar |
Max working pressure barg | Installation specification mm | |||||||
| A | B | C | D | E | F | G | H | |||
| SGD-D-30 | 30 | 64 | 165 | 85 | R1/4" | 145 | 130 | 90 | 50 | 4 x M8 |
| D-60 | 60 | 64 | 165 | 85 | R3/8" | 145 | 130 | 90 | 50 | 4 x M8 |
| D-120 | 120 | 64 | 205 | 105 | R1/2" | 185 | 190 | 110 | 50 | 4 x M8 |
| D-180 | 180 | 64 | 230 | 105 | R3/4" | 205 | 190 | 110 | 50 | 4 x M8 |
| D-270 | 270 | 64 | 235 | 119 | R1" | 210 | 190 | 130 | 70 | 4 x M10 |
| D-360 | 360 | 64 | 290 | 119 | R1 1/4" | 255 | 250 | 130 | 70 | 4 x M10 |
| D-480 | 480 | 64 | 315 | 150 | R1 1/2" | 280 | 250 | 160 | 80 | 4 x M10 |
| D-720 | 720 | 64 | 405 | 186 | R2" | 365 | 340 | 200 | 110 | 4 x M10 |

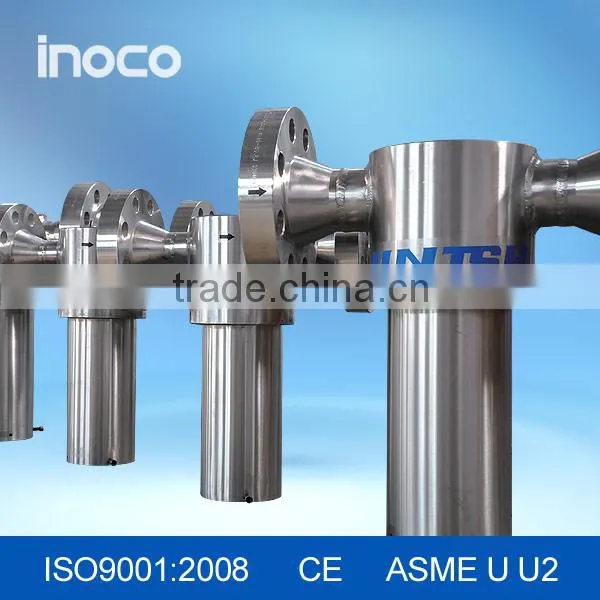

3, high pressure gas filter Product show
4, Inoco company capacity
Inoco provide a wide range of filter and filter system for oil production, processing; mining processing, liquefaction, transportation in natural gas industry around the world,used to remove pollutants in liquid or gas. With 18000 companies service experience in worldwide, leading filter laboratory, strong manufacturing capacity, we can provide you with excellent reliability and high performance products.
Inoco all gas filtration and separation products are available with ASME "U" seal "U2", we can also accept BureauVeritas, TUV third-party certification.
5, Related products
1. GAS FILTER
2. DRY GAS FILTER
3. GAS-LIQUID COALESCER FILTERS
4. WIRE MESH SEPARATOR
5. VANE SEPARATOR
6. CYCLONE SEPARATOR
7. COKE OVEN GAS FILTER
8. GAS CARTRIDGE FILTER
9. LARGE FLOW CARTRIDGE FILTER
10. COMPRESSED AIR FILTER
11. HIGH PRESSURE FILTER
12. CARTRIDGE DUST COLLECTOR
13. AERATION CONE
14. CERAMIC MEMBRANE DUST REMOVAL FILTER
15. ULTRA PURE GAS FILTRATION SEPARATION
16. GAS MEMBRANE SEPARATION DEVICE
For more details pls contact Inoco sales team.
