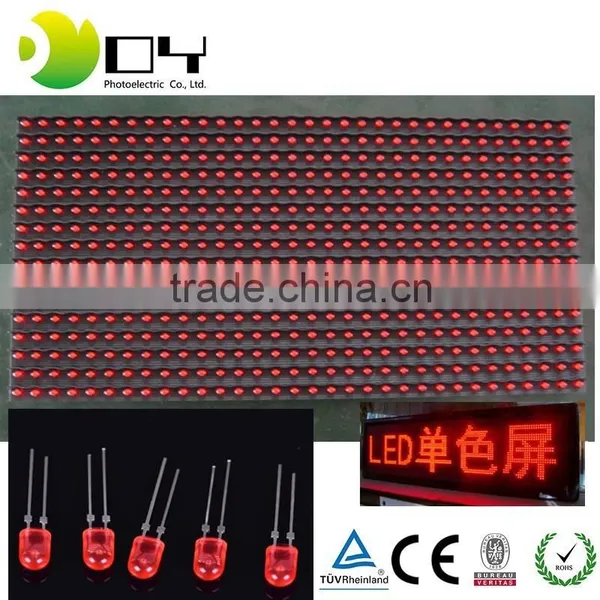

P10 Outdoor Single Color Led Display Module

Name: P10 Outdoor Single Color Led Display Module
Brand: DY-mp10
SKU: 108793817

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

DY-mp10

Model Number:

P10r module, p10 led display red color

Dongguan Deying Photoelectric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ShenZhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name DY-mp10

Model Number P10r module, p10 led display red color

Usage Other, Outdoor, Outdoor

Tube Chip Color Other, Red, Red

Display Function Video

Pixels 10mm

Screen Dimension 320mm*160mm

Specification

p10 led display red color

1)Outdoor advertising red led display board
2)CE&ROHS certificate
3)stability
4)low power consume

Culture

Technical Parameters

1. Module

The technical parameter of P10 Display Module
Number	Item	P10 Single Red Module
1	Pixel pitch	10mm
2	Size of module(wxh)	320mm X160 mm
3	Resolution of module (wxh)	32 dots X16 dots
4	Density of pixel	10000dots/m²
5	Pixel configuration	1R or 1G or 1B or 1W
6	Red wavelength	625±2nm
7	Green wavelength	525±2nm
8	Blue wavelength	470±2nm
9	Colors	Red
10	Best viewing distance	10-100m
11	Horizontal viewing angle	120°
12	power consumption	200w/m²
13	Brightness	>2500cd /m2
14	Gray scale	16bits per color
15	Color temperature	5500k
16	Control method	Synchronization & Asynchronization
17	Driving method	1/4 scanning
18	Frame frequency	60Hz
19	Refresh frequency	>300Hz
20	Working voltage	AC220V/110V±10%
21	IP grade	IP65
22	Working temperature	-20°C~80°C
23	MTBF	>10000 hours
24	Lifespan	>100,000 hours
25	Defects rate	≤0.00001(Led display line standard<0.0001)
