Home > Manufacturing & Processing Machinery > Plastic Machinery > Blow Molding Machine > Fully Automatic Blow Moulding Machine

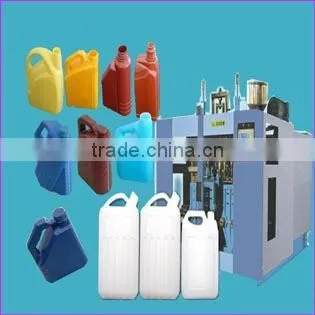

Fully Automatic Blow Moulding Machine

Fully Automatic Blow Moulding Machine thumbnail-1
Fully Automatic Blow Moulding Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Bottle
Plastic Processed:
PE
Contact Supplier Request Quote Chat Now
Zhangjiagang Longhua Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Bottle
Plastic Processed PE
Blow Moulding Type Extrusion Blow Moulding
Automatic Yes
Place of Origin Jiangsu, China
Brand Name LONGHUA
Model Number LHB75D

Specifications

blow moulding machine
material:HDPE,PP,PVC,ABS
apply:bottle,jar,pot,jerry can,barrel
drum,water tank,tool box,bumper



blow moulding machine:



 Applied material: HDPE, PP, PE, PVC, etc.

Production capacity: 8L(max)

Output(Cycle Time):240Pc/hr

Machine Dimension:3.8*2.3*2.7m

Machine Weight: 5.2T

Screw type: same distance, different depth, gradual change

Screw diameter: 75mm

Screw L/D: 24/1

Extruding power:30kw

NO.of heater:3

Screw heating power: 12.5kw

Plasticising capacity:90kg/Hr

        Single Die head

Max die-pin diameter:150mm

heating powerof die-head: 6kw

heating zones: 3

mould material: treated with N, P, Cr

temp. control: TAIWAN YANHUA PID

core and convention of mould: a set with machine, if adding it should be paid more.

 Double Die Head

Center Distance of Die Head:160mm

Max die-pin diameter:80mm

heating powerof die-head: 6.4kw

heating zones: 3

mould material: treated with N, P, Cr

temp. control: TAIWAN YANHUA PID

core and convention of mould: a set with machine, if adding it should be paid more.

 Tri-Die Head

Center Distance of Die Head:110mm

Max die-pin diameter:65mm

heating powerof die-head:7kw

heating zones: 4

mould material: treated with N, P, Cr

temp. control: TAIWAN YANHUA PID

core and convention of mould: a set with machine, if adding it should be paid more.

 Tetra-Die Head

Center Distance of Die Head : 90mm

Max die-pin diameter:40mm

heating powerof die-head:7.2kw

heating zones: 5

mould material: treated with N, P, Cr

temp. control: TAIWAN YANHUA PID

core and convention of mould: a set with machine, if adding it should be paid more.







Type: double axes, single oil jar, double way, synchronization, opening and closing speed is fast, but smoothly.

Power of pressing the mould: 75KN

Platen size:390*460mm

Platen opening stroke:150-500mm

Max mould size:400*470mm

Mould thickness:155-300mm
