5L Plastic Bottle Making Machine Price

Name: 5L Plastic Bottle Making Machine Price
Brand: longhua
SKU: 108858331

US$ 23,000 - 25,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Other, bottle,drum,jerry can,bumper,spoiler,water tank

Plastic Processed:

Other, PE , PP,PVC,PC,PA,ABS,PETG,TPU,EVOH,TPE,PPE etc.

Zhangjiagang Longhua Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Other, bottle,drum,jerry can,bumper,spoiler,water tank

Plastic Processed Other, PE , PP,PVC,PC,PA,ABS,PETG,TPU,EVOH,TPE,PPE etc.

Blow Moulding Type Extrusion Blow Moulding

Automatic Yes

Place of Origin Jiangsu, China

Brand Name longhua

Model Number LHB65D

Voltage 220V 315V 380V 450V

Power(W) 5.5kw

Dimension(L*W*H) 3.4*2.3 *2.5

Weight 3.7ton

Certification CE,ISO9001

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

5L plastic bottle making machine price
a.fully automatic
b.hydraulic controlling
c.energy saving
d.easy operating

5L plastic bottle making machine price

It adopts advanced imported industrial control system from Japan Mitsubishi
The touching button can be chosen to be convenient in man-to-machine interaction
The machine running condition displays
The self-test function shows the condition of all of input and output points
PLD temperature computer-control
300 sets of mould parameters stored
Imported electric elements from Europe ,America and Japan

Main parts of Machine	Picture	Explanation
Mould Open and Close machanism		Double station Open and close the mould
Oil Pump		Oil pump From TaiWan JinShun /YUKEN drive the machine
Computer control system (PLC)		Japanese Mitisubishi PLC Used to control all electrial components and touch screen

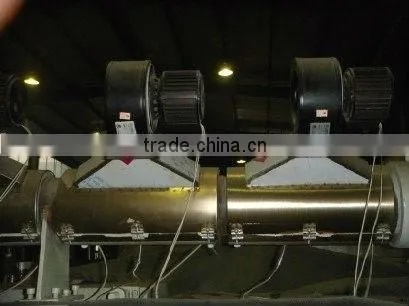

Screw and fan		Screw diemeter 55mm Fan used to cool the screw

Products produced by our machine

Technical Parameters

Specifications		LHB65D
Material		PE,PP,PVC,PA….
Max container capacity	L	5
Number of die	set	1
Output(dry Cycle)	pc/hr	350/480
Machine Dimension(L×W×H)	M	3.42.3 2.5
Total weigh	ton	3.7
Clamping Unit
Clamping force	KN	65
Platen opening stroke	mm	150-500
Platen size	mm	290*360
Max mould size(W×H)	mm	350*360
Mould thickness	mm	155-300
Power
Total power	KW	42
Air pressure	Mpa	0.6
Air consumption	m³min	0.4/0.8
Average energy consumption	KW	26
Extruder unit
Screw diameter	mm	65
Screw L/D ratio	L/D	24
Plasticising capacity	Kg/hr	56
Number of heating zone	zone	3
Extruder heating power	KW	11.1
Extruder driving power	KW	18.5
two Die head
Center of distance of die head	mm	110
Number of heating zone	zone	4
Power of die heating	KW	6.5
Max die-pin diameter	mm	70
