Specifications
This slitting machine used to nonwoven fabricand textile slitting and rewinding.

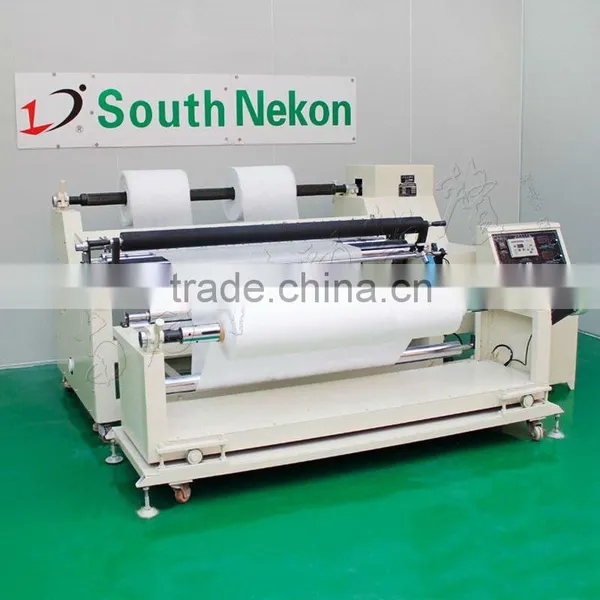

Non-woven Slitting Machine

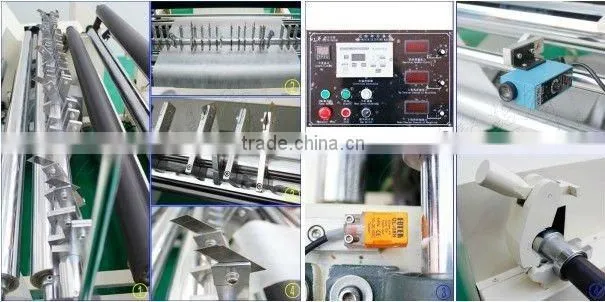

Non-woven Slitting Machine’s Features:
1. Slit with air knife or shear type round blade. (Be selected.).
2. Magnetic brake for unwind, with automatic tension control.
3. Rewind is driven by frictional and central. Magnetic clutch with semi-automatic tension control.
4. Electronic meter can automatically stop machine in preset length.
5.Plat steel welding, firmly and balanced, more stable in the high-speed operation
6.Chromium-plated steel pipe with dynamic balance processing
7.Feeding with 3 inch air shaft, maximum feeding diameter is 600mm, with magnetic powder tension controller and edge automatically align device.
8.Rewinding with 3 inch air shaft and magnetic powder controller, easy to operate, maximum rewinding diameter is 600mm; rewinding aesthetic and neatly.
9.Cutter can use special blades or flat knife (cutter blades), 18mm-1600mm adjustable.
10.Spindle and circular knife with CVT system, can be used as high-low speed control and reversing switch control. Electronic speed control system with manual adjustment, convenient and simple to operate;
11.Double-faced diamond with grinding and sharpening system, the grinding wheel life is up to two years. Sharpening without disassemble with long life. Superior effeciency with dust absorption equipment to maintain the fabric and the track clean;
12.Importing precise ball screw and slides, paralleled promoting the cutting width, importing AC motor stepless adjustment system to adjust and control the cutting speed, high-precise cutting, the accuracy can be controlled within 0.1mm.
13.Standard configuration deviation-checking equipment system to further ensure the cutting precision.
14.Chinese and English operation interface with LCD display screens, can direct input several kinds of cutting width and number of load settings, and with manual / automatic conversion function, making the operation more simple and convenient;
15.High speed feeding design, reducing the labor effectively and increasing the production efficiency.
16.Automatic counting device, clearl at a glance.
Application

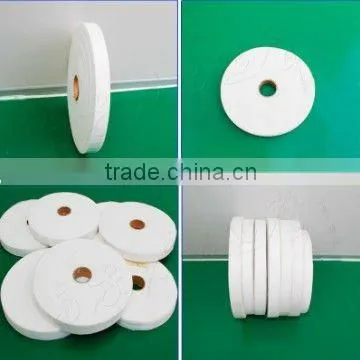

The non-woven slitting machine(the ultrasonic non-woven slitting machine, non woven fabric slitting machine, slitting and rewinding machine) mainly application to the slitting of drum-like adhesive, silicone paper, label paper, non-woven fabrics, toilet paper, rubber belt, aluminum foil, film, kraft paper and so on. Widely used in bags and suitcases, daily necessities, safety suppliers, recycle bags, stationery, plastic, paper mill.
The Non-woven Slitting Machine’s Main technical parameter
Machine name |
non-woven slitting machine |
Type of machine |
NK-LFJ3002 |
voltage |
220V/380V,50/60Hz |
Effective slitting width |
18mm-1600mm |
Maximum feeding diameter |
600mm |
Maximum rewinding diameter |
600mm |
power |
5 KW |
production rate |
1~60 m/min |
size |
1900(L) x 2640(W) x 1300(H) MM |
