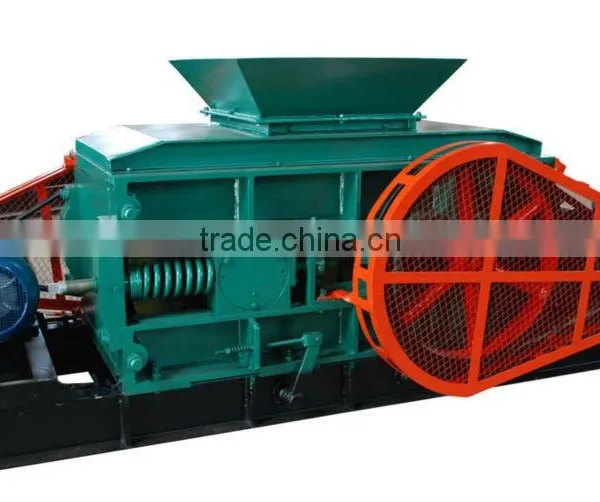

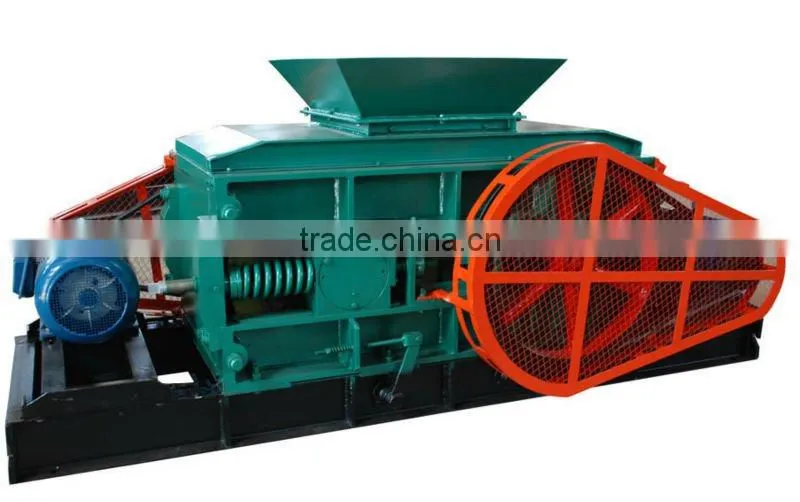

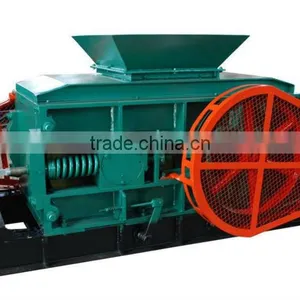

Help CenterPGX Series High-speed Roller Crusher
Related Products
-
Hot Sale High Quality Hydraulic Stepper Machine From Professional ManufacturerNegotiableMOQ: 1 Set -
The Energy-saving Clay Brick Making MachineUS$ 61,300 - 214,000MOQ: 1 Set
-
Late Model Kiln CarUS$ 168 - 690MOQ: 1 Set
-
New Type and High Efficiency Block MachineUS$ 12,300 - 61,290MOQ: 1 Unit
-
Durable Intense Mixing and Extruding MachineUS$ 17,546 - 22,130MOQ: 1 Set
Specifications
It is the equipment for crushing and grinding the raw material.It is the equipment for crushing and grinding the raw material.The rollers are made of the complex alloy which can reach to the hardness value of HRC48~62after being quenched.Over the roller there is a material's distributor which not only brings roller's fragmentation effect into full play but also improve the fineness and yield of crushed materials.And it can escape from the phenomenon of the middle slot
Data |
Measurement units |
PGX70×50 |
PGX80×60 |
PGX90×70 |
PGX100×80 |
Production capacity |
m3/h |
25~40 |
30~50 |
35~60 |
40~70 |
Roller specifications |
Mm |
700×500 |
800×600 |
900×700 |
1000×800 |
Wire-speed roller |
m/s |
~15 ~12.7 |
~12.5 ~11.4 |
~12.5 ~11.4 |
~12.5 ~11.4 |
Gap between double rollers |
Mm |
Can be adjusted beyond 2mm. | Can be adjusted beyond 2mm. |
Can be adjusted beyond 2mm. |
Can be adjusted beyond 2mm. |
Moisture content of feed |
% |
10~18 |
10~18 |
10~18 |
10~18 |
Feeding size |
Mm |
≤50 |
≤50 |
≤50 |
≤50 |
Power |
kw |
11kw-4×2 |
18.5kw-4×2 |
30kw-6×2 |
37kw-6×2 |
Weight |
kg |
3200 |
4600 |
9650 |
16230 |
Dimensions |
mm |
3800×1246×1148 |
4100×1404×1295 |
4400×1800×1800 |
4800×2260×2060 |
