Specifications

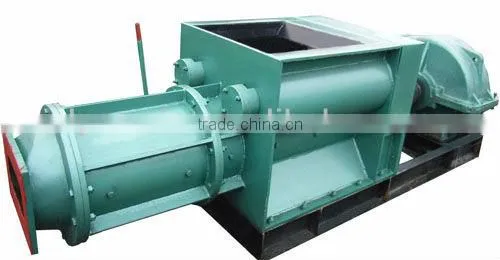

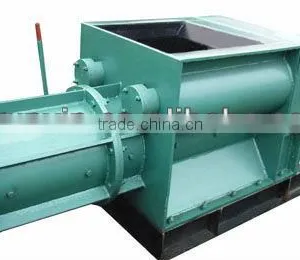

JZ series brick machines are non-vacuum extruders.Product introduction
JZ series brick machines are non-vacuum extruders. They have the features of simple and contact structure, reasonable design, high yield and easy maintenance but low energy consumption. They are applicable for the production of solid bricks with the materials of clay, coal gangue, shale, medium-volume fly-ash, small-volume fly-ash, urban construction waste, gangue waste, inferior soil.
Main technical data (JZ series)
Model data |
Measuring unit |
JZ50/50-2.0 |
JZ45/45-1.5 |
JZ40/40-1.5 |
JZ35/35-1.5 |
Production capability |
standard brick packs/h |
18000-22000 |
16000-20000 |
14000-18000 |
12000-16000 |
Reamer diameter |
mm |
500 |
450 |
400 |
350 |
Extruding pressure |
MPa |
≤2.0 |
≤1.5 |
≤1.5 |
≤1.5 |
Forming liquid water content |
% |
18~22 |
18~22 |
18~22 |
18~22 |
Power |
Kw |
90~110 |
75~90 |
55~75 |
37~45 |
