3M Cable Fault /cable Sheath Fault Locator/Dynatel Locator /buried Cables and Pipes Locator

US$ 1,000 - 6,000 MOQ: 1 Unit

Key Specifications

Brand Name:

Model Number:

2773E, 2273E

Place of Origin:

Shenzhen Hontek Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Brand Name 3M

Model Number 2773E, 2273E

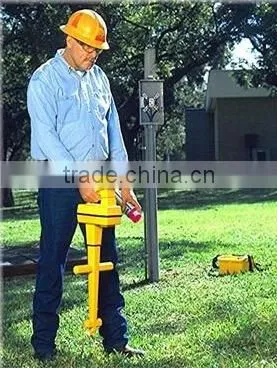

3M Cable Fault /cable sheath fault Locator/Dynatel Locator /buried cables and pipes locator

l Large backlit high-resolution display, Chinese graphical interface

l Accurate detection of cable (cable) routes to

l Measurement cable (optical) depth of the buried

l Current detection signal cable; skin damage / shield ground faults

l Detecting short-circuit overhead line or touch the ground fault; determine the wet part of the

cable to

l Positioning Indicator cable

Specification

Type	2273E	2273M	2273M-iD
The peak direction, the direction of anti-peak, special peak mode	√	√	√
Push button cable / pipe depth readout instruments, with continuous measurement of the depth mode	√	√	√
Active pipeline depth measurement probe	√	√	√
Signal current measurement, the signal tone amplifier function	√	√	√
Cable / Line of the identification	√	√	√
Indicator alarm mode and path detection			√
Underwater section labeled	√	√	√
Digital fault strength indicator, the amplifier bandwidth expansion	√	√	√
Preset backup frequency, for power, CATV, radio communications,and long haul applications	√	√	√
4 user-defined auxiliary frequency	√	√	√
Immediate response to the self-calibration mode	√	√	√
Through the standard RS232 serial port PC interface	√	√	√
User-configurable features and interface	√	√	√
All 7 EMS detectable frequency identification			√
Indicator PC link and locator tools			√
ID identifies the device’s read / write capability			√
Frequency identification device at the same time search, the depth estimate Indicator			√
Shielded wire or sheath fault location	√	√	√
