OTDR FTB-1 WITH FTB-720 SM OTDR OR MM/SM OTDR PRICE
US$ 4,200 - 6,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Canada
Brand Name:
EXFO
Model Number:
FTB-1
Payment & Shipping
Payment Methods:
Port of Shipment:
HONGKONG
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
OTDR EXFO AXS-110 / AXS-100 OTDR Handheld OTDR IN STOCKUS$ 1 - 5,300MOQ: 1 Set -
OTDR EXFO MAX-710B OTDR / FTB-1/ FTB-200 / AXS-110 / FTB-500 OTDR PRICEUS$ 1 - 8,800MOQ: 1 Set
-
NETWORK TESTING MEASUREMENT OF OPTICAL LOSS and ORL FOT-930US$ 1,200 - 2,000MOQ: 1 Set
-
Ideal Buffer Loose Tube Slitter HorizontalUS$ 18.00 - 18.00MOQ: 1 Unit
-
EXFO FTB-2!US$ 5000.00 - 5000.00MOQ: 1 Piece
Place of Origin
Canada
Brand Name
EXFO
Model Number
FTB-1
OTDR FTB-1 WITH FTB-720 SM OTDR OR MM/SM OTDR PRICE

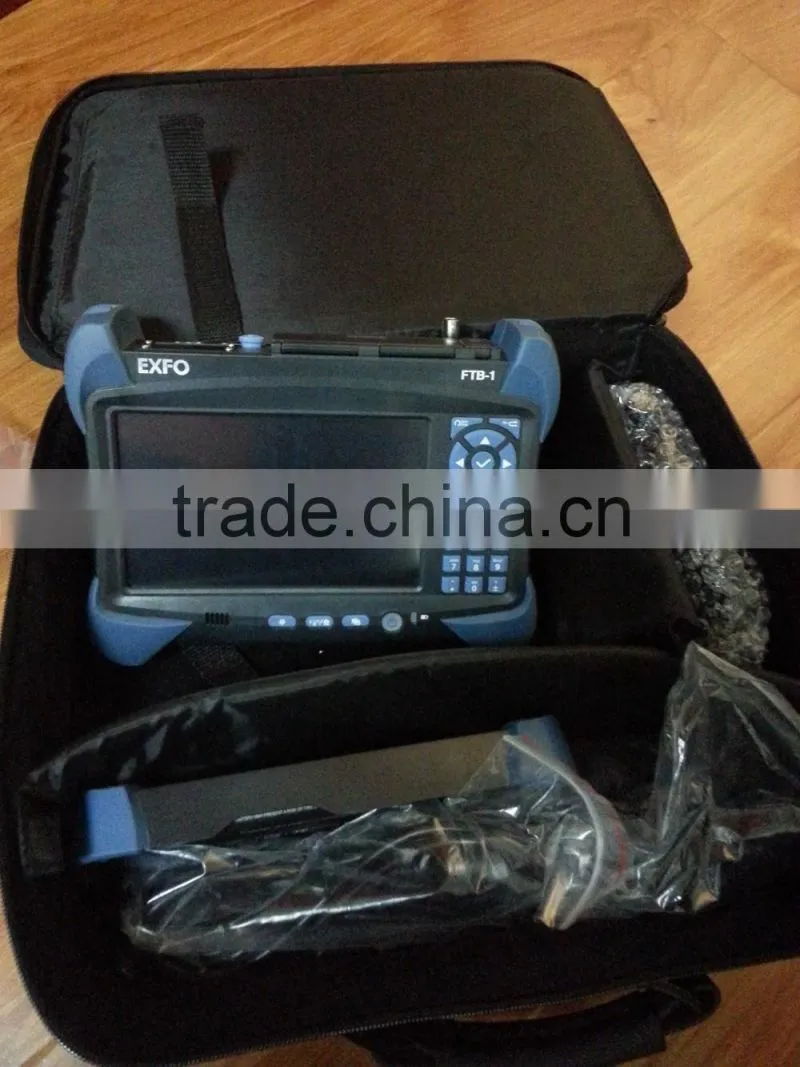

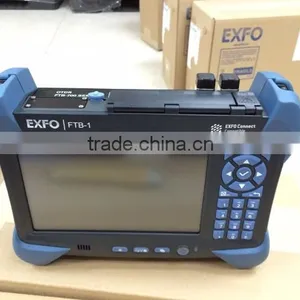

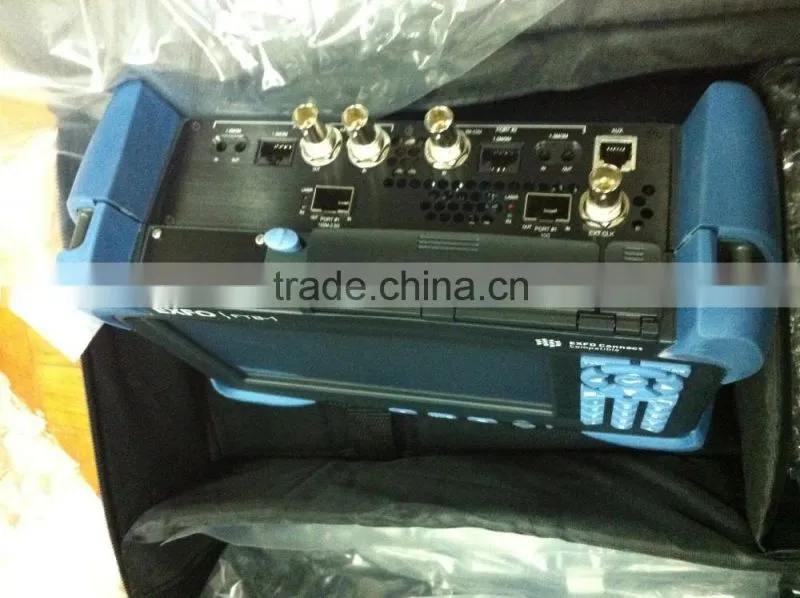

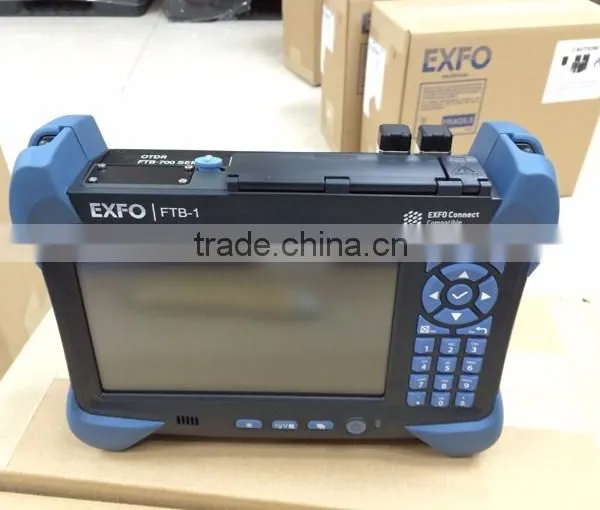

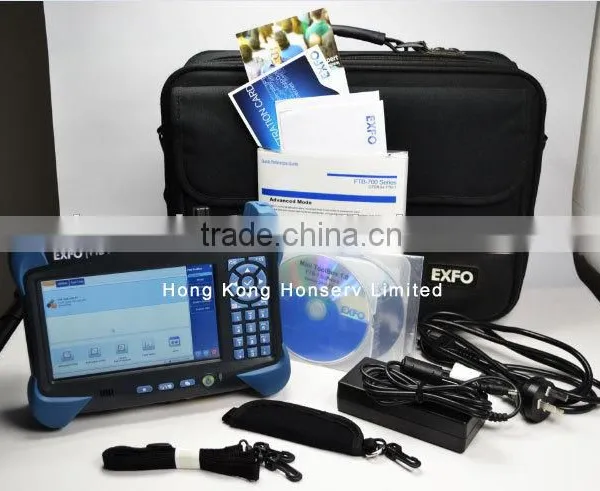

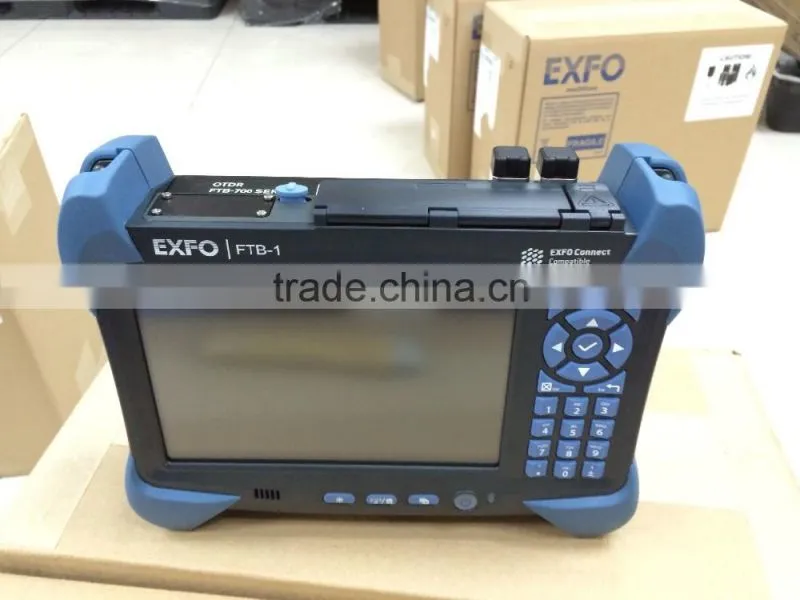

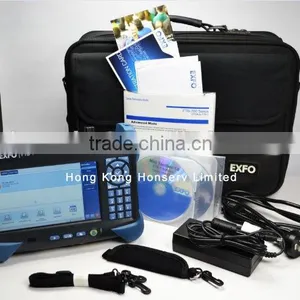

1.EXFO OTDR FTB-1
2.FTB-1/720/730/860
3.Touch screen,can change module
4.IN STOCK!
EXFO TK-1-700 OTDR in stock (EXFO FTB-1 WITH FTB-730-23B OTDR )
The FTB-1 Platform is a modular platform optimized for fast, powerful, dedicated FTTH and
Ethernet test applications
The FTB-1 Platform is a modular platform optimized for fast, powerful, dedicated FTTH and Ethernet test applications
Features:
- USB, mobile, Wi-Fi and Bluetooth connectivity capabilities
- Supports third-party applications and all the tools that enable technicians to complete their work right in the field
- Lets you take advantage of the EXFO Connect environment to manage fi eld testing/reporting operations as well as your platform pool
- Intel ATOM processor with Windows Embedded Standard operating system, for optimized productivity and versatility
- Latest battery technology for unmatched operation autonomy
- One GigE port and two USB 2.0 ports
- Windows Remote Assistance and Remote Control
- EXFO fiber inspection probe connector interface
- Display: TFT outdoor-enhanced LCD, 7-inch touchscreen
- Telcordia-compliant
Specifications:
Display |
Touchscreen, color, 800 x 480 TFT, 178 mm (7 in) |
Interfaces |
Two USB 2.0 ports
RJ-45 LAN 10/100/1000 Mbit/s
Fiber inspection probe connector port (video)
Built-in Bluetooth and Wi-Fi (optional)
|
Storage |
8 GB internal memory (flash)
16 GB internal memory (flash), optional
|
Batteries |
Rechargeable lithium-ion batteries
8 hours of operation as per Telcordia* (Bellcore)
TR-NWT-001138
|
Power supply |
AC/DC adapter, input 100-240 VAC, 50-60 Hz,
2 A max, output 24 VDC, 90 W
|
Computer |
Intel ATOM processor
Windows Embedded Standard operating system
|
Size (H x W x D) |
190 mm x 252 mm x 66 mm
(7 1/2 in x 9 15/16 in x 2 5/8 in)
|
Weight(with battery) |
1.5 kg (3.3 lb) |
Temperature |
Operating 0°C to 50°C
Storage -40°C to 70°C
|
Relative humidity |
0 % to 95 % non-condensing |
PM-200 BUILT-IN POWER METER SPECIFICATIONS | |
Calibrated wavelengths (nm) |
850, 1300, 1310, 1490, 1550, 1625, 1650 |
Optional CWDM calibrated wavelengths (nm) |
1270, 1290, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550,1570, 1590, 1610, 1383, 1625 |
Power range (dBm) |
10 to -86 (InGaAs) |
Uncertainty (%) |
±5 % ± 3 pW (InGaAs) |
Display resolution (dB) InGaAs |
0.01 = max to - 76 dBm
0.1 = - 76 dBm to - 86 dBm
1 = - 86 dBm to min
|
Automatic offset nulling range |
Max power to - 63 dBm for InGaAs |
Tone detection (Hz) |
270/1000/2000 |
VISUAL FAULT LOCATOR (VFL) (OPTIONAL) | |
Laser |
650 nm ± 10 nm |
Typical Pout |
in 62.5/125 μm: 3 dBm (2 mW) |
Modules:
| FTB-720-000-04B | FTB-720-000-04B-XX, SM OTDR Module, Filtered 1625 nm, 34 dB (9/125 µm) for live fiber testing |
| FTB-720-023B-04B | FTB-720-023B-04-XX, SM OTDR Module Port 1 : 1310/1550 nm, 36/34 dB (9/125 µm) Port 2 : Filtered 1625 nm, 34 dB (9/125 µm) for live fiber testing |
| FTB-720-023B | FTB-720-023B-XX, SM OTDR Module, 1310/1550 nm, 36/34 dB (9/125 µm) |
| FTB-720-12CD | FTB-720-12CD-XX, MM OTDR Module, 850/1300 nm, 27/26 dB (50/125 & 62.5/125 µm) |
| FTB-720-12CD-23B | FTB-720-12CD-23B-XX-XX, MM/SM OTDR Module, 850/1300/1310/1550 nm, 27/26/36/34 dB (MM: 50/125 & 62.5/125 µm - SM: 9/125 µm) |
| FTB-730-000-04B | FTB-730-000-04B-XX, SM OTDR Module, Filtered 1625 nm, 39 dB (9/125 µm) for live fiber testing with in-line power meter (one broadband channel) |
| FTB-730-000-08B | FTB-730-000-08B-XX, SM OTDR Module, Filtered 1650 nm, 37 dB (9/125 µm) for live fiber testing |
| FTB-730-023B-04B | FTB-730-023B-04-XX, SM OTDR Module Port 1 : 1310/1550 nm, 39/37 dB (9/125 µm) Port 2 : Filtered 1625 nm, 39 dB (9/125 µm) for live fiber testing with in-line power meter (one broadband channel) |
| FTB-730-023B | FTB-730-023B-XX, SM OTDR Module, 1310/1550 nm, 39/37 dB (9/125 µm) |
| FTB-730-034B | FTB-730-034B-XX, SM OTDR Module, 1550/1625 nm, 37/37 dB (9/125 µm) |
| FTB-730-236B | FTB-730-236B-XX, SM OTDR Module, 1310/1490/1550 nm, 39/35/37 dB (9/125 µm) |
