Help CenterIndustrial Mini Oil Pressure Sensor Silicone Diffuser Membrane
Related Products
Specifications
Industrial Mini Pressure Sensor2 quick shipment
3 CEcertification
4 silicone diffuser membrane

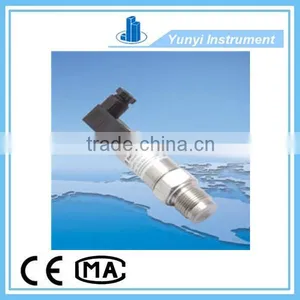

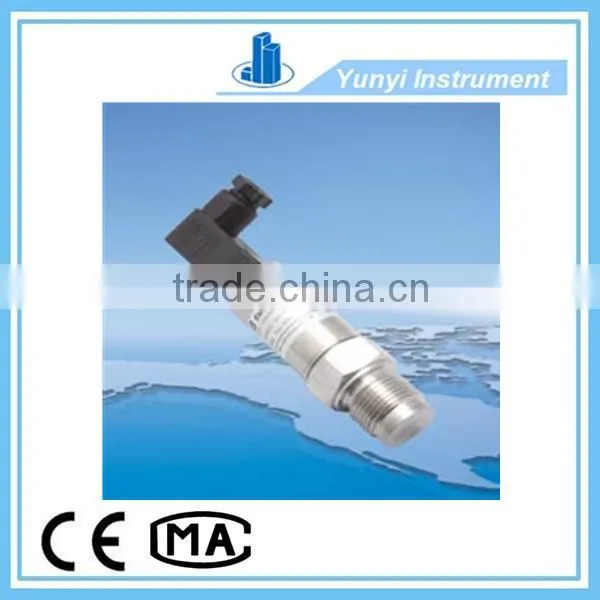

Flush diaphragm pressure sensor silicone diffuser membrane
Description : silicone diffuser membrane
FPC-202 series flat diaphragm pressure sensor using integrated non-cavity structure, without silicone-filled. Diaphragm using a dedicated strong quality stainless steel, even though the measurement medium containing hard particles, it will not damage the diaphragm. Sensitive components using highly sensitive silicon strain gauges, using a special process with high temperature sintering of stainless steel combined together.The product has excellent stability, high temperature resistance, overload, corrosion resistance. Back-end amplifier circuit using sophisticated digital compensation circuit, eliminate errors caused by temperature changes. There are 4 ~ 20mA, 0 ~ 5V, 1 ~ 5V output and other forms of anti-jamming circuit, overvoltage protection functions .
Specification of Flush diaphragm pressure sensor : silicone diffuser membrane
Technical principle : silicon strain technology
Range: 1MPa~150MPa
Input and Output:
power supply : 10-30V output:4~20mA( two-wire system ),1~5V,0~5V,0-10V
power supply : 5V output:0.5V-4.5V etc.
Temperture: -20~100°C
Medium: Asphalt/oil/melting wax/paint/coating such as viscous medium
Accuracy: 0.1%,0.2%,0.5%
Application : Conditions of mud, etc
Asphalt/oil/melting wax oil industry equipment, etc
Chemical coating, paint spraying equipment, etc
silicone diffuser membrane
About Us: silicone diffuser membrane
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
If you need this Pressure sensor , please visit the website
