Help CenterHigh Quality China Piezoresistive Pressure Transducer
Related Products

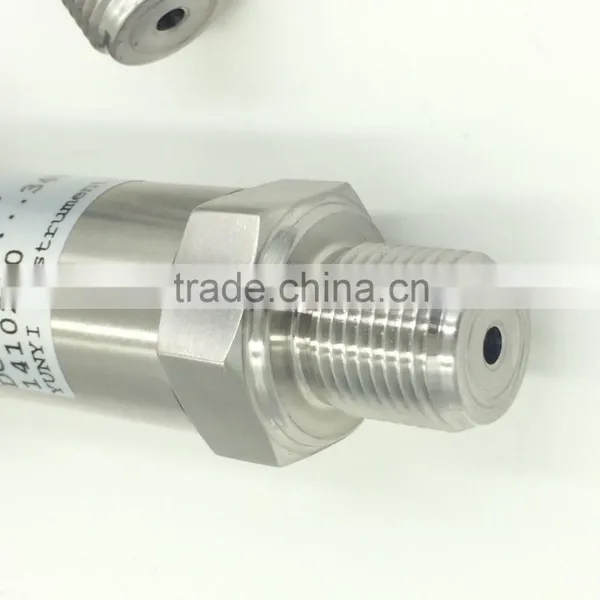

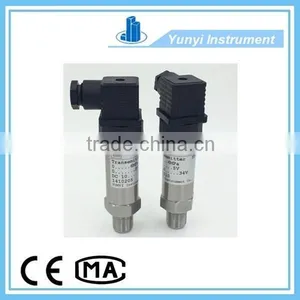

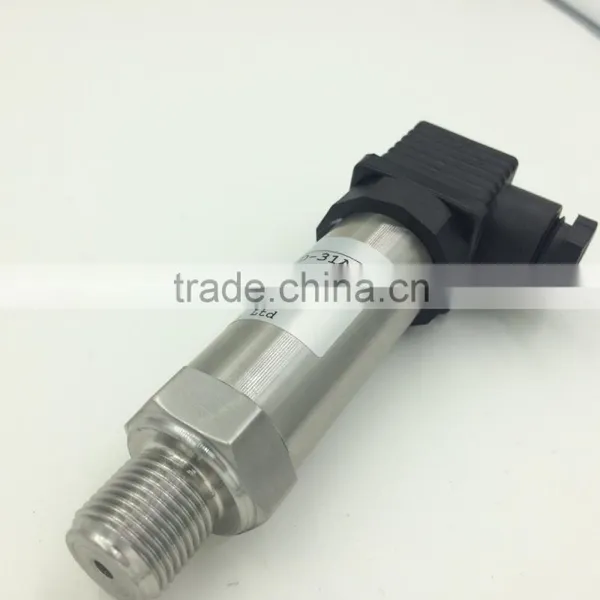

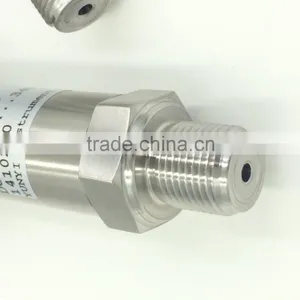

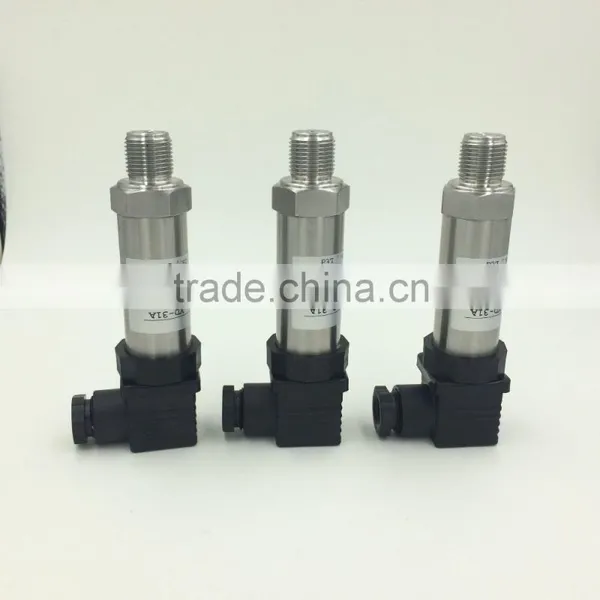

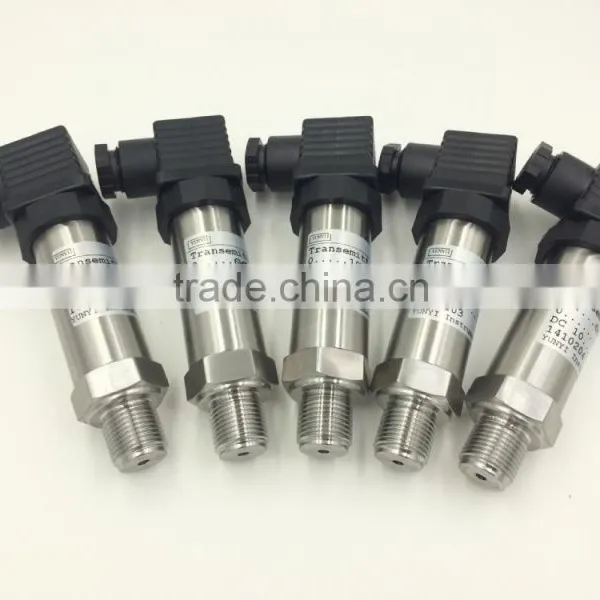

Piezoresistive pressure transducer
What is the technical parameters of piezoresistive pressure transducer ?
Model |
YD312
|
Pressure Range |
-0.1MPa ... 0 ~ 20kPa ... 100MPa |
Pressure Interface |
G1/4, G1/2 1/4NPT, 1/2NPT and others |
Overload |
1.5 times full scale pressure or 110MPa (minimum value) |
Power: |
1.5mADC |
Zero: |
<± 2mVDC |
Full Scale Output: |
≥70mVDC (0 ~ 20kPa, ≥50mVDC) |
Accuracy: |
± 0.1% FS (minimum) ± 0.25% FS (typical) ± 0.5% FS (maximum) |
Long-term stability: |
± 0.3% FS / year |
Compensation temperature: |
0 ℃ ~ 50 ℃ |
| Working temperature: | -10 ℃ ~ 80 ℃ |
| Storage temperature: | -40 ℃ ~ 100 ℃ |
| Zero Temperature Coefficient: | ± 0.02% FS / ℃ (typical) ± 0.04% FS / ℃ (maximum) |
| Full scale Temperature Coefficient: | ± 0.02% FS / ℃ (typical) ± 0.04% FS / ℃ (maximum) |
| Case: | Stainless steel 1Cr18Ni9Ti |
| Diaphragm: | stainless steel 316L |
| O-ring: | Viton |
| Cable: | Polyethylene |
| Response time (10% ~ 90%): | ≤1 ms |
| Insulation resistance: | 100MΩ, 100VDC |
| Protection: | IP65 |
What is the features of piezoresistive pressure transducer ?
• All stainless steel construction;
• Standard thread impulse measurement;
• constant current source power supply;
• laser trimming compensating zero and temperature performance;
• With the solid-state piezoresistive pressure sensor, high reliability and stability;
• cables or connectors lead the way.

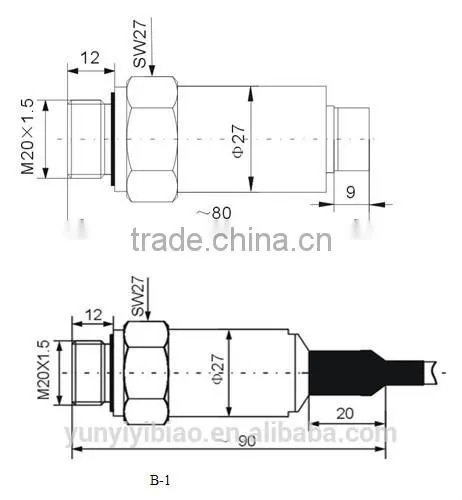

What is the figure of piezoresistive pressure transducer ?
What is the applications of piezoresistive pressure transducer ?
For food, medicine, health and other industries or measuring medium possible scaling occasion .
What is the development of bout Us?
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
If you need this piezoresistive pressure transducer , please visit the website
or contact skype:wangxiaoyuncalar
