Specifications
water pressure sensor transmitter price1 professional manufacturer
2 high accuracy
3good quality

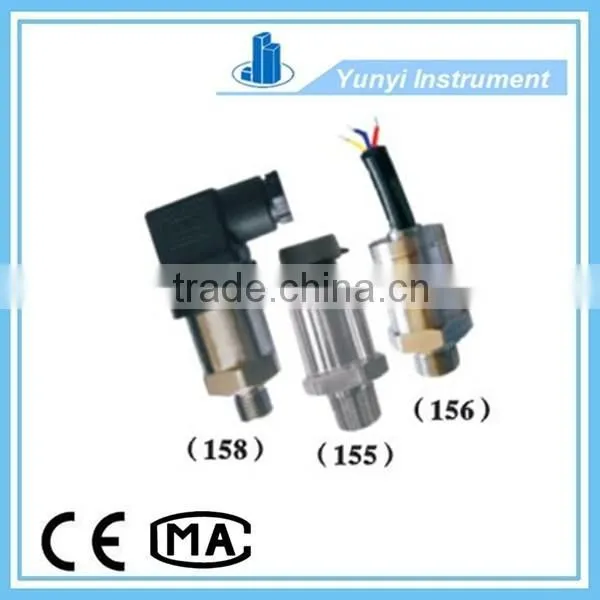

water pressure sensor transmitter price
Description:
ZYseries are especially for air compressor. The cost-Performance ratio is high, utilize newest technology, assemble high performance circuit. Small profile, have strong capability of dampproof and anti-electromagnetic interference. Mainly apply in fields: air compressor, vacuum equipment, oil pressure equipment.
Specification
Measurement Range |
0~0.1~5MPa |
Proof pressure |
≤1.5X rated pressure |
Pressure type |
Gauge, absolute ,sealed gauge |
Accuracy |
±0.25%(typical) ±0.5%(Max.) |
Long stability |
±0.1%F.S/year(typical) ±0.2%F.S/year(Max.) |
Temperature Error- Zero |
±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(>100KPa) |
Temperature Error -Span |
±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(>100KPa) |
OperatingTemperatureRange |
-20℃~80℃ |
Storage Temperature Range |
-40℃~120℃ |
Power supply |
12~36VDC,5VDC |
Output signal |
4~20mA 0.5~4.5VDC,1~5V |
Pressure port |
M20×1.5,G1/4 or customize |
Housing material |
1Cr18Ni9Ti stainless steel |
Diaphragm material |
316L |
O-ring |
Fluororubber |
Cable |
Polyethylene |
Insulation resistance |
100MΩ,100VDC |
Features
Wide measurement range
Multiple thread
Protection: IP65
Marking :ExiaIICT6
CE,CMC certification
Application
air compressor, vacuum equipment
oil pressure equipment

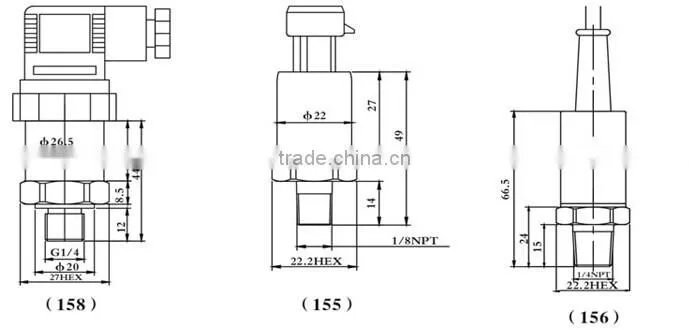

Product Dimensions:
Ordering information
ZY15 |
Pressure Transmitter |
|||||
|
Code |
|
||||
5 |
Packard |
|||||
6 |
Cable with 1.5 meter |
|||||
7 |
Mini DIN |
|||||
8 |
Big Din |
|||||
Pressure range |
-0.1. . .0~0.01...20MPa |
|||||
(0-X)KPa or MPa |
X: measurement range |
|||||
Code |
Output signal |
|||||
S1 |
4~20mADC |
|||||
S2 |
1~5VDC |
|||||
S3 |
0~5VDC |
|||||
S4 |
0~10mAC |
|||||
S5 |
0~20mAC |
|||||
S6 |
0~10VDC |
|||||
Code |
Pressure port |
|||||
J1 |
M20X1.5 male |
|||||
J2 |
G1/4 male |
|||||
J3 |
1/4NPT male |
|||||
J4 |
7/16-20UNF(with thimble) |
|||||
J5 |
Others |
|||||
Code |
Pressure type |
|||||
G |
Gauge pressure |
|||||
A |
Absolute pressure |
|||||
S |
Sealed pressure |
|||||
About Us:
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
If you need this water pressure sensor transmitter price , please visit the website
