Specifications
4-20mA micro pressure sensor transmitter1 professional manufacturer
2 quick shipment
3 CEcertification

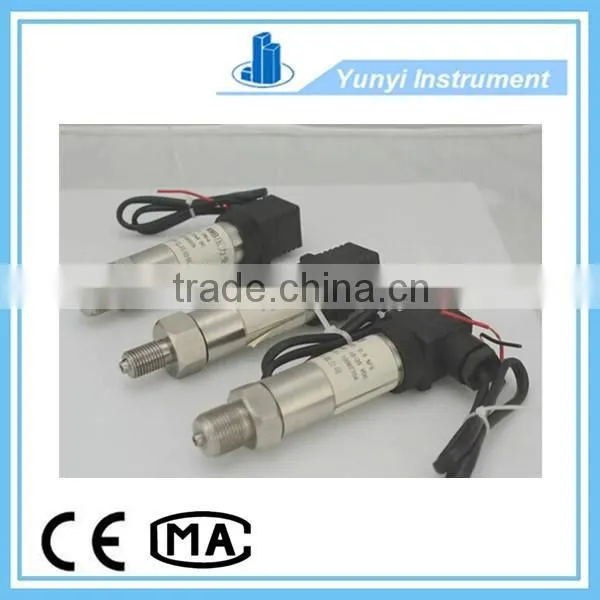

4-20mA micro pressure sensor transmitter
Description:
Integral component of stainless steel, elastomer original imported high-precision strain gauge and advanced technology, with high sensitivity, stable performance, good impact resistance. 316 stainless steel welded closed, the pressure sensor LED display comes with three and a half, while the output analog signals to the back-end control mechanism to pressure signal sampling, compact, compact, good moisture resistance and excellent media compatibility.
Technical indicators:
Measuring range:-100KPa ~ 0-60MPa
Maximum Overload: 1.5 times the standard range
Pressure Type: gauge pressure, differential pressure
Accuracy class: 0.25% F.S custom 0.5% F.S √
Power supply voltage: 24VDC
Load resistance: ≤ 500Ω
Measuring medium: steam pressure or gases, liquids
Long-term stability: ± 0.2% F.S / Year
Temperature drift: ± 0.03% FS / °C
Compensation temperature: 0 ~ 80 °C
Working temperature: -40 ~ 150 °C (up to do 500 °C / to be ordered)
Case: all stainless steel body
Measuring media: non-corrosive stainless steel gas, liquid
Pressure connection: M20 × 1.5 or user-defined
Weight: normal type 0.2kg, 0.6kg with a header type
If you need this 4-20mA Pressure sensor transmitter price , please visit the website
