Place of Origin Shaanxi, China
Brand Name Yunyi
Model Number YD31A

Diffused silicon pressure sensor





Product Description





Description of Diffused silicon pressure sensor:

YD31A Pressure transmitter is made of isolation membrane oil filled pressure sensor and instrument application-specific integrated amplifier circuit.





Specifications:



Specification of Diffused silicon pressure sensor :



Measure range:   100KPa~0~10KPa~100Mpa

Pressure type: gauge pressure, absolute pressure

Power supply:  24VDC, 12VDC
Output signal:   4-20mA, 1-5V, 0-5V
Temperature compensation: 10~70℃
Working temperature:  20~85℃

Storage temperature: 0~125℃

Zero temperature drift: ±1.5%FS
Sensitivity temperature drift:   ±1.5%FS
Overload:   150%FS
Mechanical vibration:   20g(20~5000HZ)
Accuracy:  ± 0.5%FS       ± 0.25%FS
Long time stability:        ±0.1%FS/year     ±0.2%FS/year Response time:   ≤1ms(Up to 90%FS)

Load resistance:   ≤(UP to15)/0.02Ω
Material: Stainless steel case; internal 316L sensor
Media compatible: Media compatible with 316L stainless steel
Protection grade:  IP65

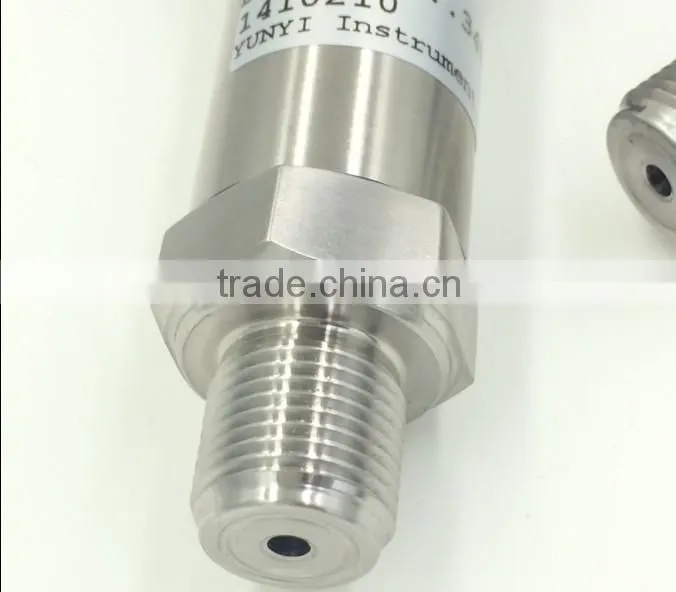

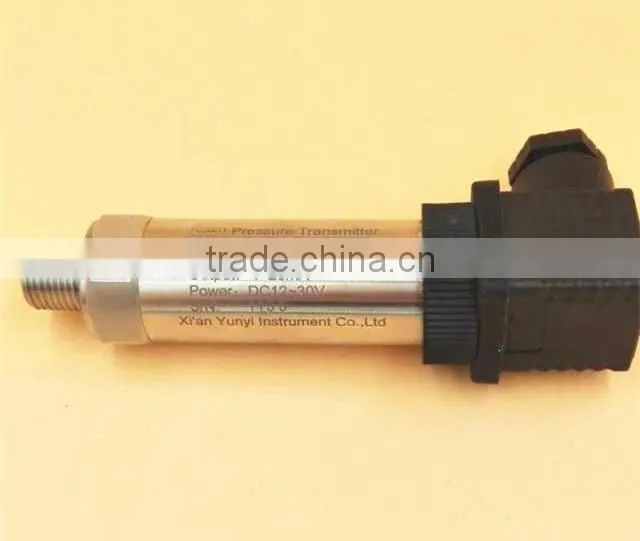

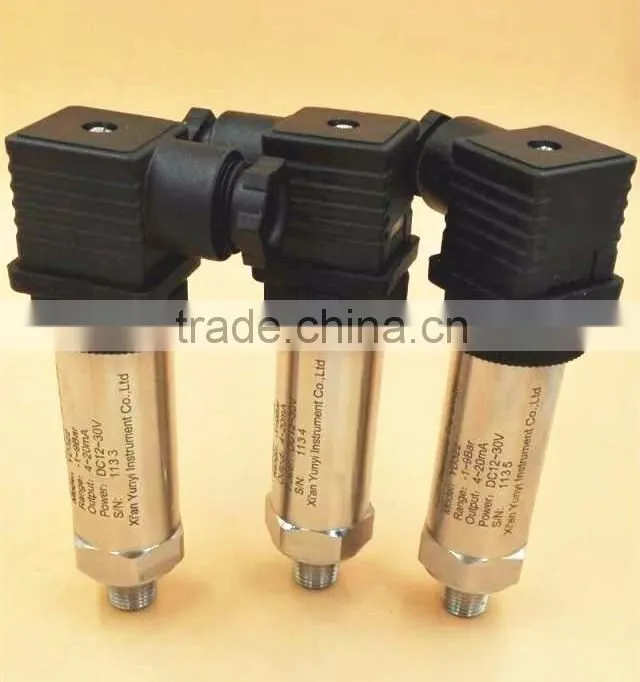

Detailed Images
