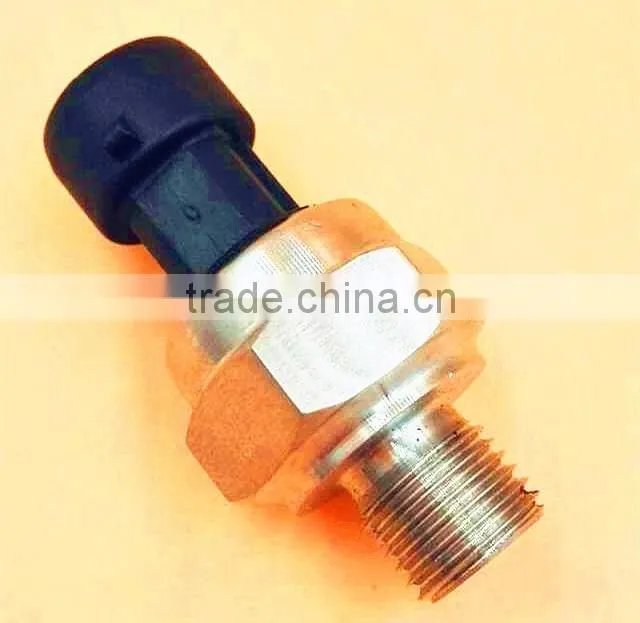

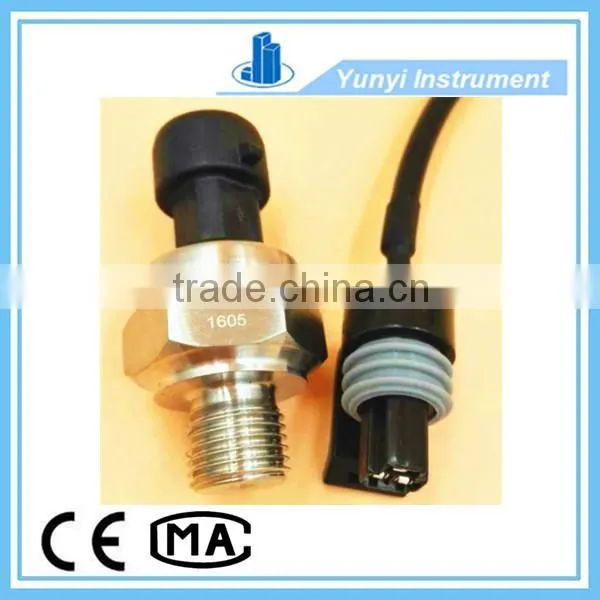

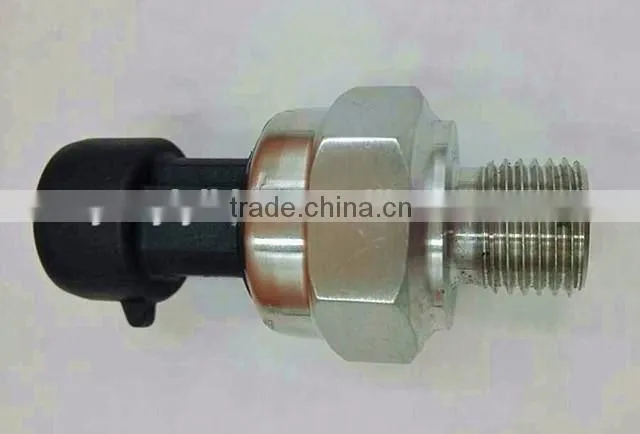

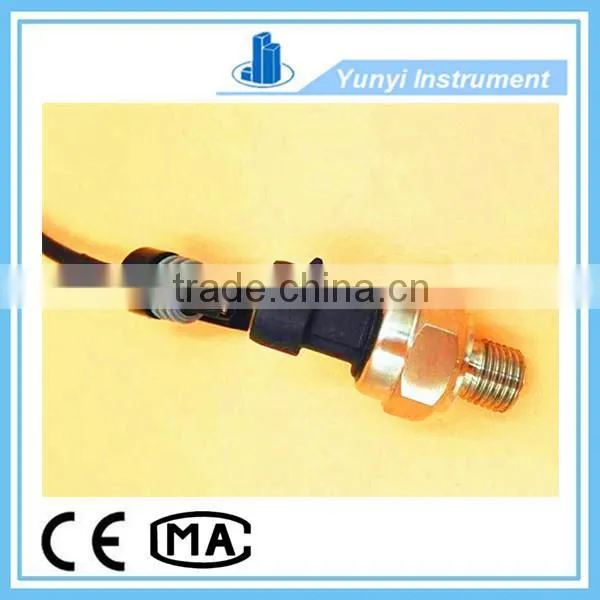

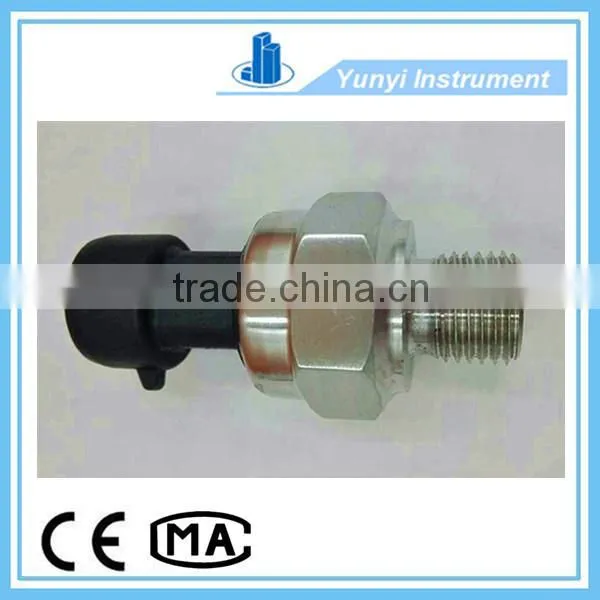

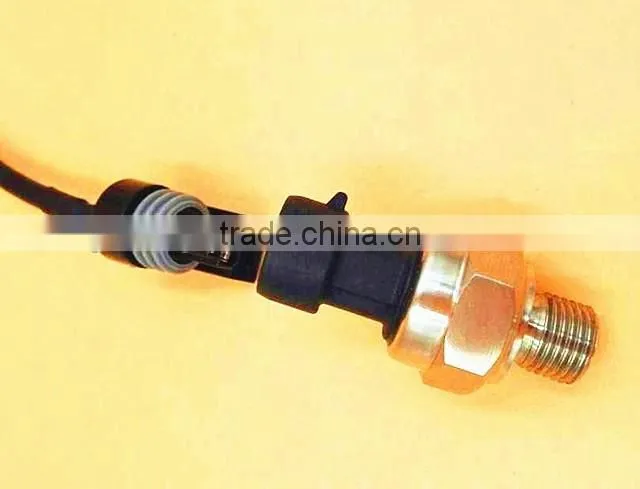

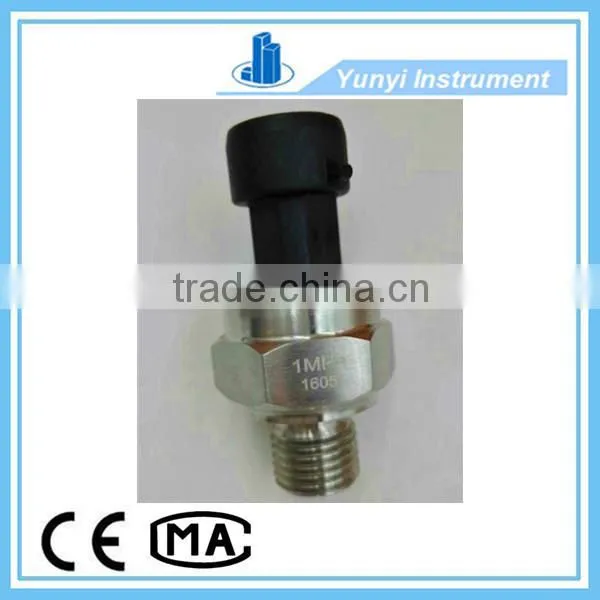

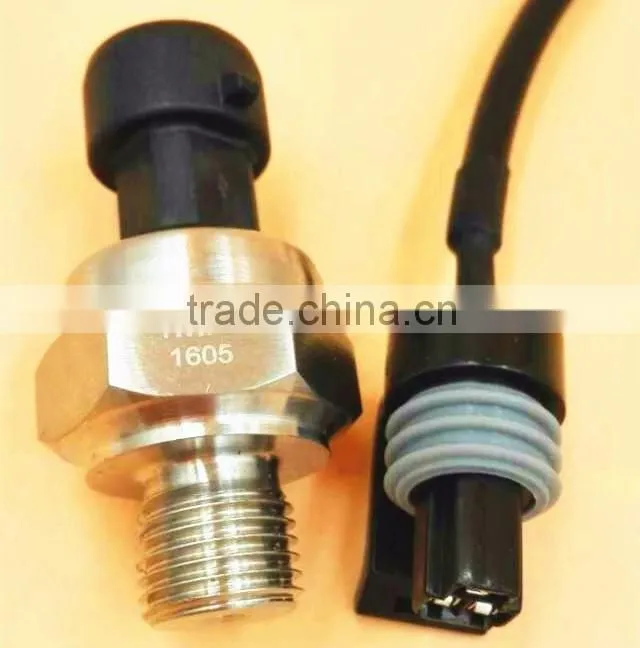

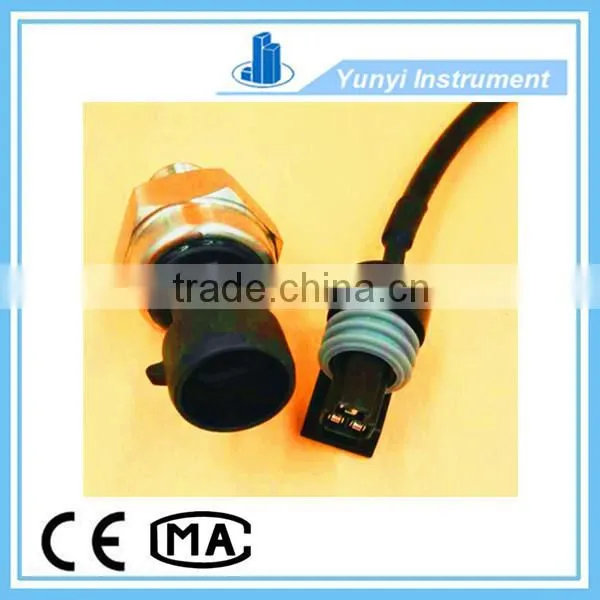

Engine Fuel Pressure Sensor
OEM engine oil pressure sensor using stainless steel structure, made of imported ceramic piezoresistive core body or diffused silicon core body temperature sensors in a wide range of compensation to ensure the performance and long-term stability of the sensor, the product is compact, easy to install, the main suitable for harsh automotive environment, can be used in high temperature, vibration, thermal and mechanical shock, and chemical pollution and other harsh environments.
Range: -0.1-30MPa
Accuracy: 0.5% FS, 1.0% FS, 2.0% FS
Output signal: 4-20mA, 0 / 1-5 / 10V, 0.5-4.5V
Supply voltage: + 5VDC, + 12VDC, + 24VDC
Process connection: 7 / 16-20UNF, G1 / 4, G1 / 8,1 / 8NPT (can be customized)

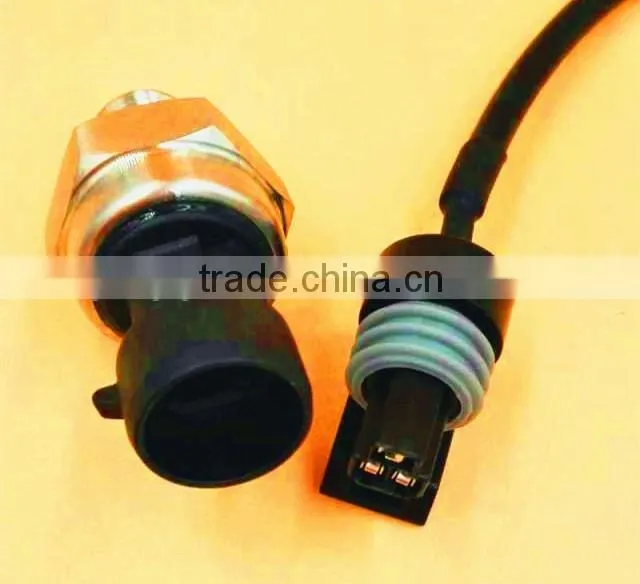

Electrical connection: three core plug directly lead
Load capacity: current-≤500Ω
Compensation temperature: 0-85 ° C
Working temperature: -20-125 ° C
Safety overload: 150%
Ultimate Overload: 200%
Temperature drift: 0.02% FS / ° C
Long-term stability: 0.2% FS / year
