Home > Manufacturing & Processing Machinery > Mining Machinery > Mining Crusher > Construction Stone Cruser PF1210 Impact Crusher
Construction Stone Cruser PF1210 Impact Crusher
US$ 1,000 - 9,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Impact Crusher
Application:
Hard rock crushing
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Trustworthy Crusher Manufacturer (Jaw Crusher, Impact Crusher, Cone Crusher, Hammer Crusher,Fine Crusher) by Luoyang ZHONGDEUS$ 1,000 - 9,999MOQ: 1 Set -
Cone Crusher/Stone Cone Crusher With Low PriceUS$ 1,000 - 9,999MOQ: 1 Set
-
China Stone Jaw Crusher,Small Jaw CrusherUS$ 1,000 - 9,999MOQ: 1 Set
-
Stone Cutting Equipment / Crusher/Stone Hammer CrusherUS$ 1,000 - 9,999MOQ: 1 Set
-
Hammer Crusher,Heavy Hammer Crusher MachineUS$ 1,000 - 9,999MOQ: 1 Set
Condition
New
Type
Impact Crusher
Application
Hard rock crushing
Motor Type
AC Motor
Power(W)
110
Capacity(t/h)
70-130, 70-130
Place of Origin
Henan, China
Brand Name
ZHONGDE
Dimension(L*W*H)
2680*2160*2800
Weight
17.7t
Certification
CE,ISO,BV,TUV certificate etc
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.Energy saving2.Big broken ratio
3.Low consumption
4.ISO9001:2000
5.Fit for crushing hard and semi-hard materials
Introduction of impact crusher:
Impact crusher is a newly-developed can crusher which embodies the advanced technology both at home and abroad and can be applied not only to all kinds of mines and sandstone making plant but also to the railway building ,highway construction, energy development, chemical, cement industries, etc. Featuring high efficiency, impact crusher takes the primary crushed ore as feed. The advantage of the products are big reduction ratio and shape of the crushed materials.
Application of impact crusher:
Impact crusher is widely used for crushing hard and brittle materials, such as rock, grinding material, refractory material, cement clinker, quartzite, iron ore and concrete aggregate; and it is especially suitable for sand and sandstone making for construction and road paving.
Benefits of impact crusher:
- Feed hole is big, crushing chamber is high, large size less power;
- Clearance between impact plate and blow bar is easy to be adjustment, the final product size can be controlled easily;
- Final product is of cubic shape;
- High chrome blow bar, it is wearable;
- No-board connection is easy to be checked;
- High crushing ratio, comprehensive benefits are high.
Parameters of impact crusher:
| Model | Speciications(mm) | Feed opening size(mm) | Max. feeding side length(mm) | Capacity(t/h) | Power(kw) | Dimenions(L*W*H)(mm) |
| PF-1007 | Ø1000*700 | 400*730 | 300 | 30-70 | 45 | 2330*1660*2300 |
| PF-1010 | Ø1000*1050 | 400*1080 | 350 | 50-90 | 55 | 2370*1700*2390 |
| PF-1210 | Ø1250*1050 | 400*1080 | 350 | 70-130 | 110 | 2680*2160*2800 |
| PF-1214 | Ø1250*1400 | 400*1430 | 350 | 100-180 | 132 | 2650*2460*2800 |
| PF-1315 | Ø1320*1500 | 860*1520 | 500 | 130-250 | 220 | 3180*2720*2620 |
| PF-1520 | Ø1500*2000 | 830*2040 | 700 | 300-550 | 400 | 3959*3564*3330 |
| PF-1820 | Ø1800*2000 | 1260*2040 | 700 | 600-800 | 630-710 | 4400*3866*4009 |

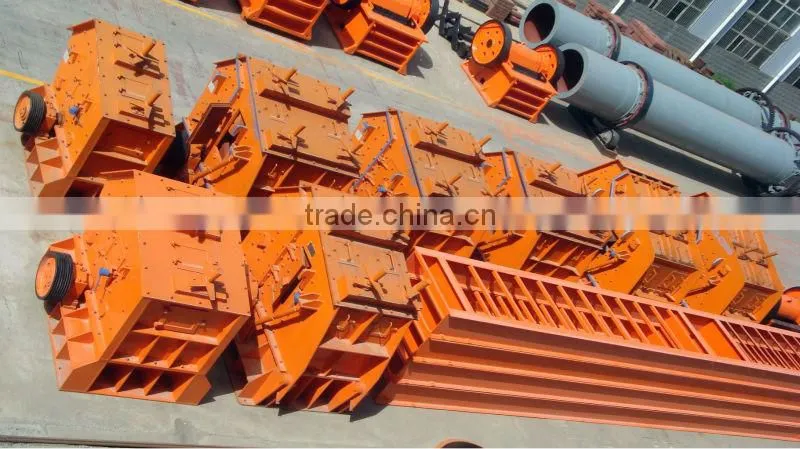

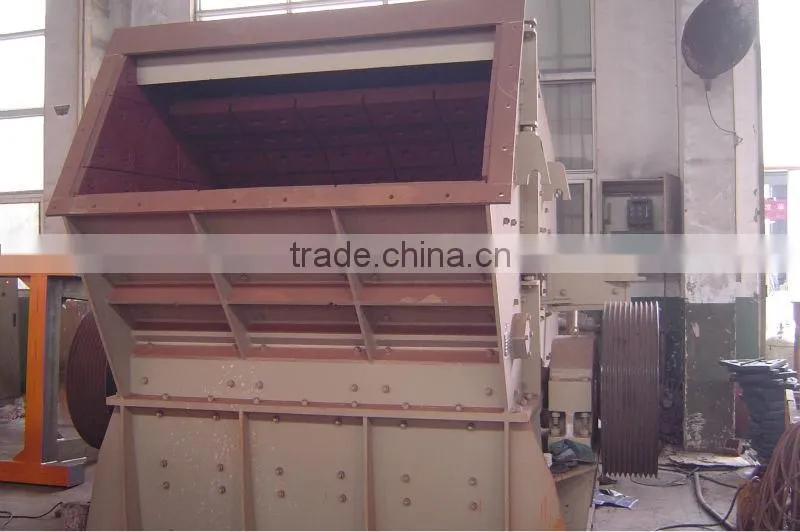

Pictures of impact crusher:
Packaging & Shipping

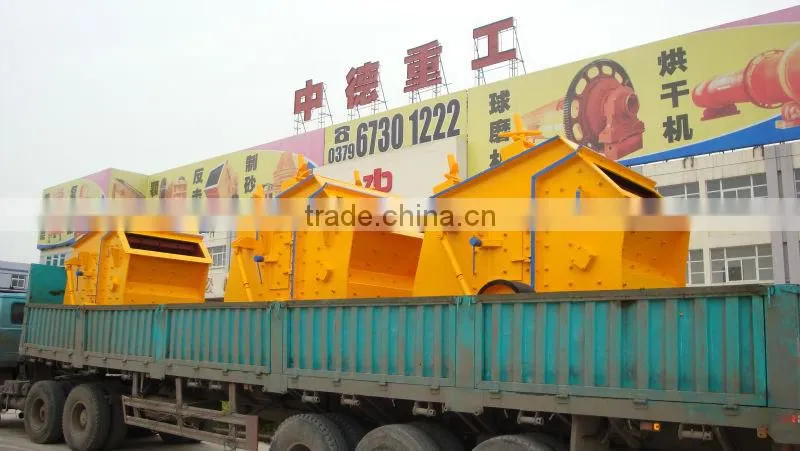

Impact crusher shipment:
Our Services
Our service of impact crusher:
- Installation and adjustment of impact crusher: The Installation and adjustment of our impact crusher is provided by our company. Technicist of impact crusher will provided by supplier for buyer to assist the work such as weding connecion of shell body ,equipment installation, adjustment, training etc.
- Quality of guarantee of impact crusher : Three-guarantees of impact crusher and warrantly period id one year.
- Technical support of impact crusher is provided from the beginning to the end.
Company Information
- Luoyang Zhongde Heavy Industries Co., Ltd, whose predecessor was Luoyang Mining Machinery Cement Equipment Factory, was founded in 1959.
- Over the past fifty years, it has made significant contribution to the economic development in China.
- In 1995, it took the lead in changing into the joint stock company, which brought rapid development to the company .
- In 2006, the old factory relocated into the large modern industrial workshop in Luoxin Industrial Park
FAQ
How about the quality of your impactcrusher ?
- Our impact crusher is manufactured strictly according to national and international standard.
- We take a test on every impact vrusher before delivery.
How about price of your impact crusher?
- We can give the lowest price of impact crusher than market one.
- We do quotation of impact crusher as soon as possible for any custome.
- Discount of impact crusher can be given according to quantity.
How about the after-sale service of your company?
- Our engineer is aviliable to installation impact crusher overseas.
- The guarantee period of our impact crusher is one year.
