Specifications
hart 375Low price and good quality
CE certificate

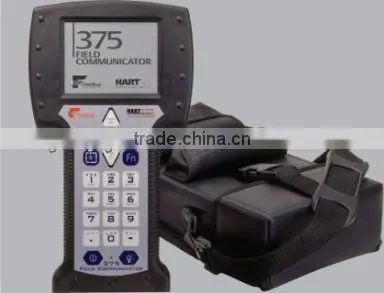

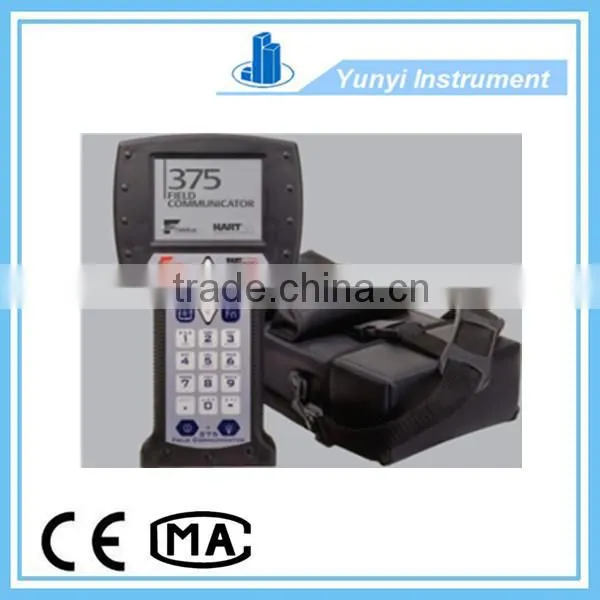

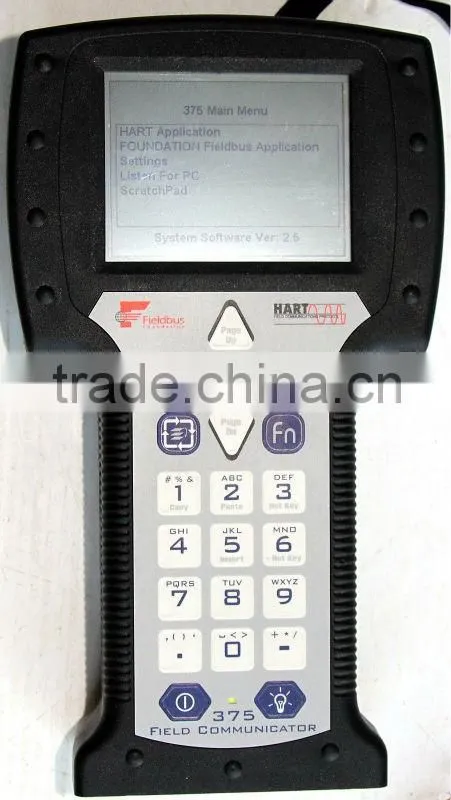

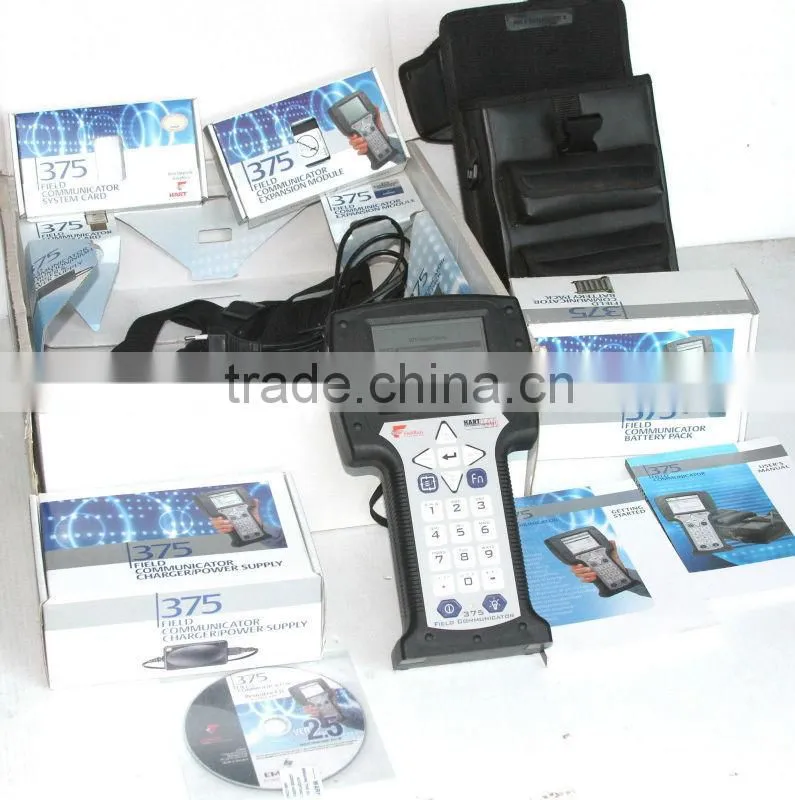

hart 375
Description:
HART Communicator 375 is a hand held interface based on HART protocol. It is mainly used in the industry field to perform configuration, management, maintenance and adjustment to HART instruments, and meantime monitor the process variables of the running instruments.
Technical Parameters:
Communication Signal Connection: Special cable of 1.1m length (3.6ft)
Communication Wire: 1Km length (0.62 mile) (0.75~1.25mm2)
Load Resistance: 250~600 Ω
Load Capacitance: Below 0.22uF
Load Inductance: Below 3.3mH
Space between Power Source Wire: above 15cm( avoid parallel routing)
Display: 128*64 lattice LED display
Control: Touch switch ( 4 direction keys, 19 function keys)
Power Resource: 4 rechargeable batteries of 1.2V
Size: 180×80×54mm ( length ×width ×height)
Weight: 700g
About Us:
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
