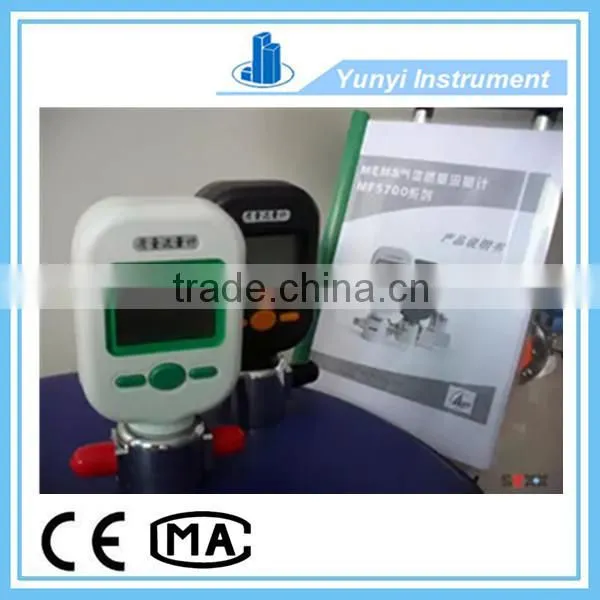

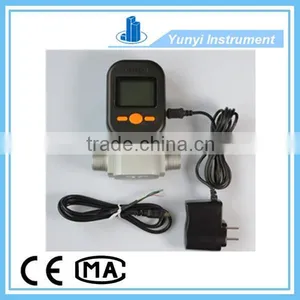

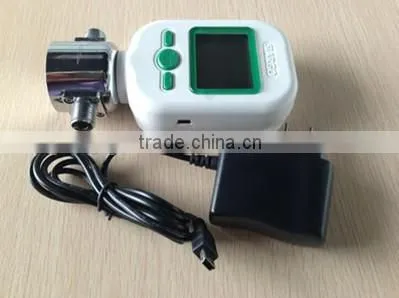

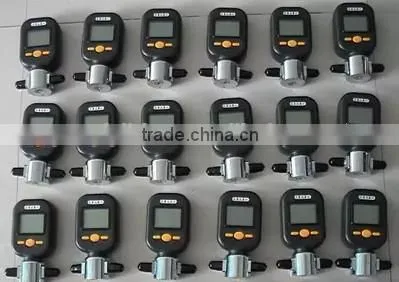

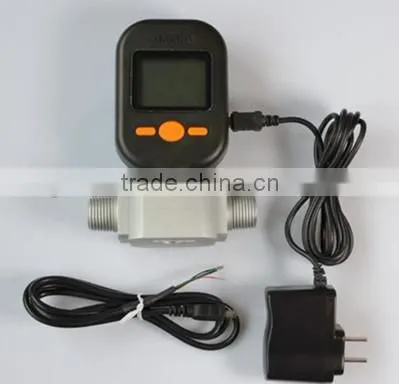

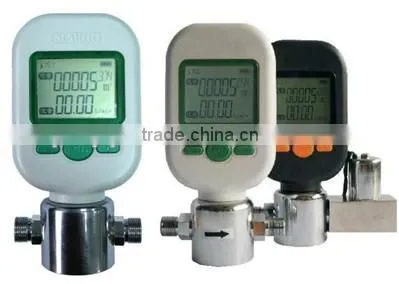

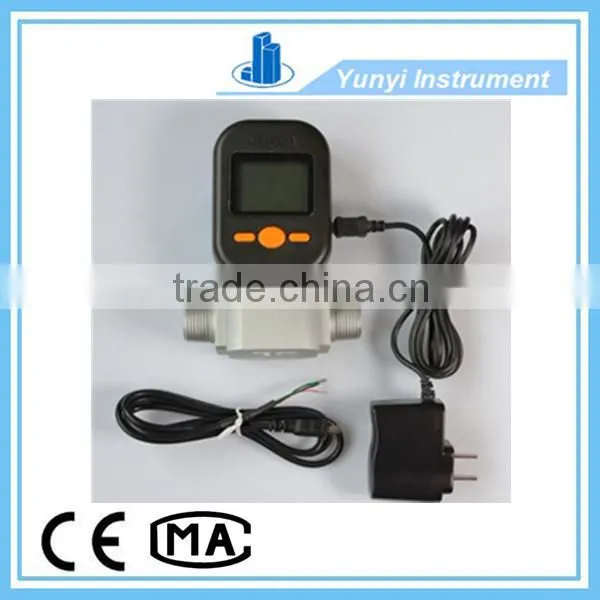

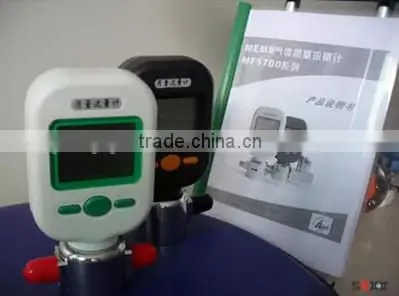

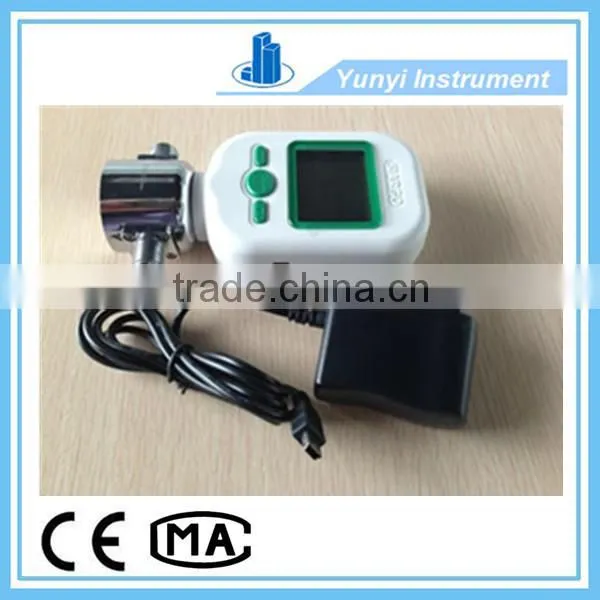

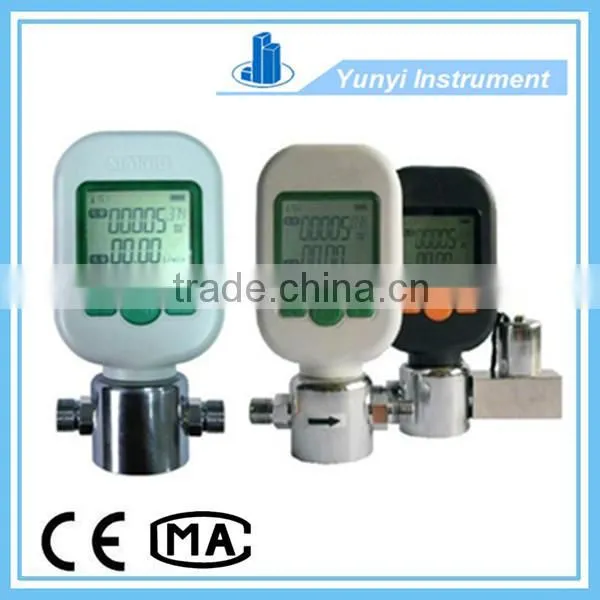

Portable Gas Flow Meter
General Description
MF5700 series mass flow meters feature cost effective ultra low power operating on 4 AA
batteries. The portable design has excellent exchangeable mechanical adaptor, easy data accessible and user programmable capabilities. The internal data storage can also help for purpose flow applications
Features and Applications
- Ultra low power by batteries or optional external AC adaptor
- Potable design with rotatable meter head and easy exchangeable mechanical adaptors
- Customizable flow range with over 30:1 turn-down
- Rs485 Modbus protocol ready for networking
- User programmable range alarm for safety and other monitoring/control functionality
- Internal data storage for additional data safety
- Hygienic and oxygen safe copper body for various fluids

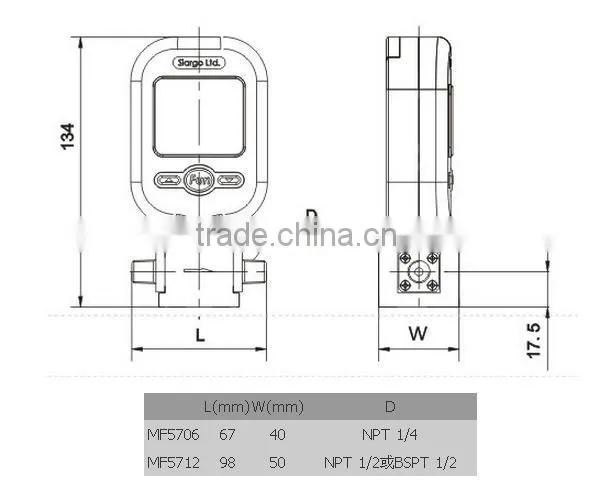

Mechanical Dimensions
Specificaiton
Parameter |
MF5706 |
MF5712 |
Unit |
Measure range |
0~10,25 |
0~200 |
L/Min |
Accuracy |
± (2+0.5FS) |
± (2.5+0.5FS) |
% |
Repeatability |
0.5 |
% |
|
Respond time |
≤ 2 |
sec |
|
Power supply |
4AA batteries/5-10VDC(with 220 Vac adaptor) |
|
|
Power dissipation |
≤ 10 |
mW |
|
Output |
RS485 (Optional) |
|
|
Display |
LCD |
|
|
Display Unit |
Instant flow rate: SLPM(L/min);Flow cumulation: NCM(m3) |
|
|
Resolution |
0.01 |
0.1 |
L/Min |
Keyboard |
3 keys |
|
|
Function |
Pass word setted; Total set and reset; Alarm function |
|
|
Working pressure |
≤ 0.8 |
MPa |
|
Working temp |
-10 ~ +55 |
℃ |
|
Pressure loss |
≤ 600 |
≤ 2000 |
Pa |
service interval |
Battery > 60 |
Day |
|
Calibration gas |
N2,20°C,101.325kPa |
|
|
User interface |
Mini USB (optional) |
|
|
DN |
6mm |
12mm |
mm |
Mechanical connection |
NPT 1/4 |
NPT 1/2 |
|
Weight |
350 |
g |
|
