Specifications
sand dryer machine1.low investment, big profit
2.high quality, durable
3.environment friendly
sand drying machine,sand rotary dryer
1. Application-- sand drying machine,sand rotary dryer :
Rotary Dryer is mainly used for materials with certain humidity or granularities in the field of beneficiation,building materials,metallurgy,etc. Rotary Dryer has been widely used due to its great adaptability towards various raw materials, simple structure and reliability.

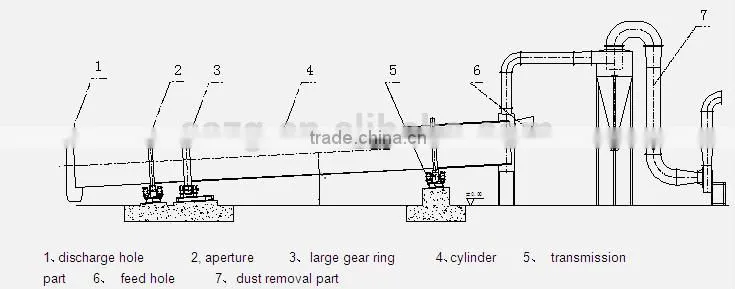

2.structure-- sand drying machine,sand rotary dryer :
3.Technical Parameter-- sand drying machine,sand rotary dryer :
| Model | Φ2.5×7m | Φ2.7×7m | Φ3.0×7m | Φ3.2×7m | Φ3.6×8m | |||||
| Yellow sand | Slag | Yellow sand | Slag | Yellow sand | Slag | Yellow sand | Slag | Yellow sand | Slag | |
| Cylinder Diameter m | 2.5 | 2.7 | 3 | 3.2 | 3.6 | |||||
| Cylinder Length m | 7 | 7 | 7 | 3.2 | 8 | |||||
| Cylinder volums m3 | 16.63 | 16.63 | 52.67 | 52.67 | 81.38 | |||||
| Rotation Speed r/min | 4-10 | 4-10 | 4-10 | 4-10 | 4-10 | |||||
| Material inital water content% | 8-10 | 10-12 | 8-10 | 10-12 | 8-10 | 10-12 | 8-10 | 10-12 | 8-10 | 10-12 |
| Material finall water content% | 0.5-1 | 1 | 0.5-1 | 1 | 0.5-1 | 1 | 0.5-1 | 1 | 0.5-1 | 1 |
| Max inlet air temperature ℃ | 700-750 | 700-750 | 700-750 | 700-750 | 700-750 | |||||
| Capacity T/H | 23-28 | 20-25 | 24-33 | 25-30 | 45-47 | 40-45 | 45-47 | 40-45 | 65-70 | 60-65 |
| Motor Model | Y2-132m-4E | Y2-132m-4E | Y2-160m-4 | Y2-160m-4 | Y2-160m-4 | |||||
| Motor Power kw | 7.5×2 | 11×2 | 7.5×4 | 7.5×4 | 15×4 | |||||
| Reduction Gear model | XWD7-23-11W | XWD7-23-11W | XWD6-23-7.5KW | XWD6-23-7.5KW | XWD8-23-15KW | |||||
| Gear Ratio 1 | 29 | 29 | 29 | 29 | 29 | |||||
rotary dryer machine,vacuum dryer machine --factory
| Company Profile | |
|
Henan Songshan Heavy Industry Co., Ltd., a state-designated manufacturer by National Construction Department, has a history of over 30 years in machine manufacturing. We mainly specialize in manufacturing beneficiating, crushing and milling machines, such as Jaw Crushers, Impact Crushers, Double Roll Crushers, Sand Making Machines, Raymond Mills, Superfine Mills, Ball Mills, Flotation Separators, Magnetic Separators, Shaking Tables, and Dryers.
|
|
| Certificate of honor | |||
| CE certificate |
|
ISO9001-2000 |
|
| BV certificate
|
|
China Top enterprises |
|
|
China credit example certificate |
|
||
Before sales service for rotary dryer price:
Provide the program design and technological flow design; choose the most suitable equipment for customer;
design and manufacture products according to customer's demands; provide training of operational technicians for customer.
Sales service for rotary dryer price:
Finish the equipment inspection with you; assist you in drawing out the construction scheme and detailed flow.
After sales service for rotary dryer price :
Send technicians to installation site for the guidance, equipment adjustment and training.
Please don’t hesitate to inform us of rotary dryer :
1.What’s kind of your raw material?
2. Now your raw stone size?
3. What’s the capacity ? (T/H)
4. What’s the final stone size request?
5. Others?
If possible,please send us some ore sample, we will do a test for you.
