Specifications
energy saving type river sand dryer1. occupying area just equal to one drum rotary dryer
2.recycle drying to save energy 60%

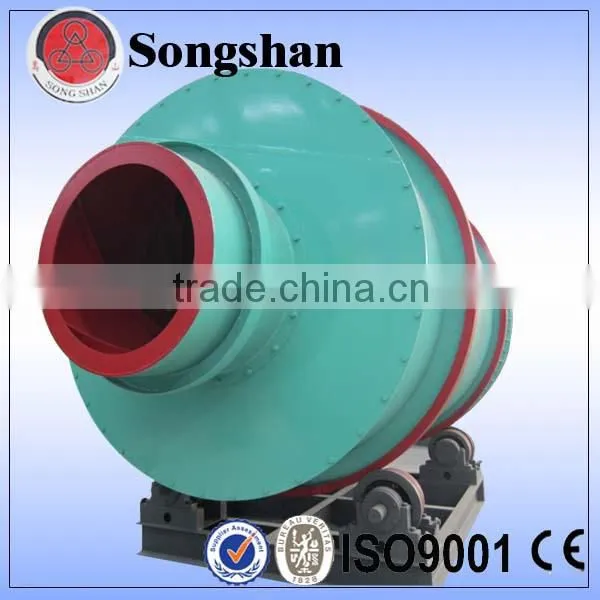

energy saving type river sand dryer manufactured by songshan
1. Application |
songshan 3 drum rotary dryer is widely used in drying granule material in fixed moisture range ,such as yellow ground in dry mortar industry ,all kinds of molding sand in casting industry and blast furnace slag in building material /cement industry. Small size clay ,small granule material in chemical industry which can't happen chemical effect, high temperature resistance and not have strict control to smoke. According to different moisture requirement for dried material in various industry ,Finished product water content be able to below 1-0.5%.
2. Characteristics |
1.Triple drum dryer uses telescopics structure to dry the materials quickly
2.Simple designed self-insulation cylinder improve the heat effciency to exceed 80%
3.Refined structure and stable operating
4.Good drying performance,coal consumptionless than 8kg when drying 1 ton materials
5.The fuel can be coal ,oil,natural gas,etc,massively dry granule and powder materials of less than 20mm size
6.Occupy 50% land areas compared with single cylinder rotary dryer,reduce construction investment by 50% and power consumption by 60%
7.Finished product moisture can be adjusted basing on requirement of clients
8.Lower outlet temperature, longer life-span of dust removal equipment
9.Driven by tug not gear and pinion
10.Finished product temperature is lower than 60*C.packing can be done continuously
3. Working principle |
The material first go into the inside drum, because there are the spiral shape boards fixed in the drum, when the rotary drum dryer make rotary working, the spiral shape board will stir the material and make the material do longitudinal movement, when the material reach the right side of the drum, under gravity effect, the material go into the second drum, because of director plate device, the material go into the second drum, and the same work principle, the material go into outside drum, in the drying working process, the material make three times drying, so the material can be dried completely.
4.Technical parameter |
Packing:
Normally, in the convenience of transportation, the large machines should be disassembled. The small parts are packaged in case, while the large main body are in nude.
Shipping
After inspection by the buyer and no-loading test in our factory, or we send inspection and test videos to our buyer, the machines are ready for delivery. We will be active to assist to book the ship and arrange the transportation.
Pls inform us the following information, if you want quotation of 3 drum rotary dryer.
1. size and moisture of raw material
2. processing capacity
3. required final moisture
We will design process flow and machine collection based on the above questions, then quote for you.
Welcome to contact me for more information.
