Specifications
Industrial rotary dryer:1) Reasonable structure
2) Polished manufacture
3) High capacity
4) Low energy consumption

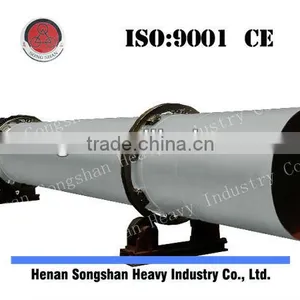

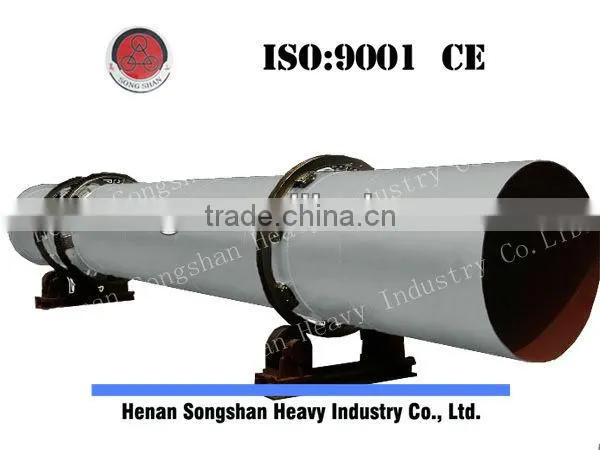

High effeciency industrial rotary dryer
Industiral Rotary Dryer is mainly used for materials with certain humidity or granularities in the field of beneficiation,building materials,metallurgy,etc. It has been widely used due to its great adaptability towards various raw materials,simple structure and reliability.
Industiral rotary dryer is widely used in building materials, mineral dressing, metallurgy, chemical industry and cement industry, which is widely used to dry the stuff such as limestone, coal powder, slag and clay.
Dry materials with certain humidity and granularity in mineral dressing, metallurgy, cement industry, chemical industry, etc.
Main Structure of industrial rotary dryer:
Beneficiation rotary dryer mainly consists of revolving part, raising stuff plate, driving device, supporting device and seal ring.
Working principle of industrial rotary dryer:
Its principle of operation: the raw material plate which is arranged reasonably with changeable angles in order, throws moisture materials into the rotary cylinder. Then water will be separated from the materials by hot air-flow and changed into vapour to be discharged into the atmosphere. Then the materials would be dried.
Main Technical parameters of industrial rotary dryer:
Model |
Size of cylinder |
Rotate Speed (r/min) |
Power (kw) |
Weight (kg) |
||
Diameter(mm) |
Length(mm) |
Angle of Inclination(%) |
||||
HG1012.00 |
1000 |
12000 |
5 |
6.2 |
7.5 |
13236 |
HG1212.00 |
1200 |
12000 |
5 |
5.99 |
11 |
15756 |
HG1512.00 |
1500 |
12000 |
5 |
4.02 |
15 |
17430 |
HG1814.00 |
1800 |
14000 |
5 |
4.59 |
18.5 |
27263 |
HG2014.00 |
2000 |
14000 |
5 |
4.59 |
18.5 |
31688 |
HG2214.00 |
2200 |
14000 |
5 |
4.59 |
22 |
37431 |
HG2414.00 |
2400 |
14000 |
5 |
3.6 |
30 |
46197 |
HG2818.00 |
2800 |
18000 |
5 |
3.12 |
45 |
89332 |
HG3020.00 |
3000 |
20000 |
5 |
3.67 |
55 |
95505 |
HG3222.00 |
3200 |
22000 |
5 |
3.4 |
75 |
141627 |
HG3624.00 |
3600 |
24000 |
5 |
3.1 |
110 |
188627 |
JHG1214.00 |
1200 |
14000 |
5 |
5.99 |
11 |
17382 |
JHG1816.00 |
1800 |
16000 |
5 |
5.48 |
22 |
39587 |
JHG2016.00 |
2000 |
16000 |
5 |
4.59 |
30 |
61912 |
JHG2227.00 |
2200 |
27000 |
5 |
4.58 |
37 |
79263 |
JHG2418.00 |
2400 |
18000 |
5 |
3.12 |
37 |
66735 |
